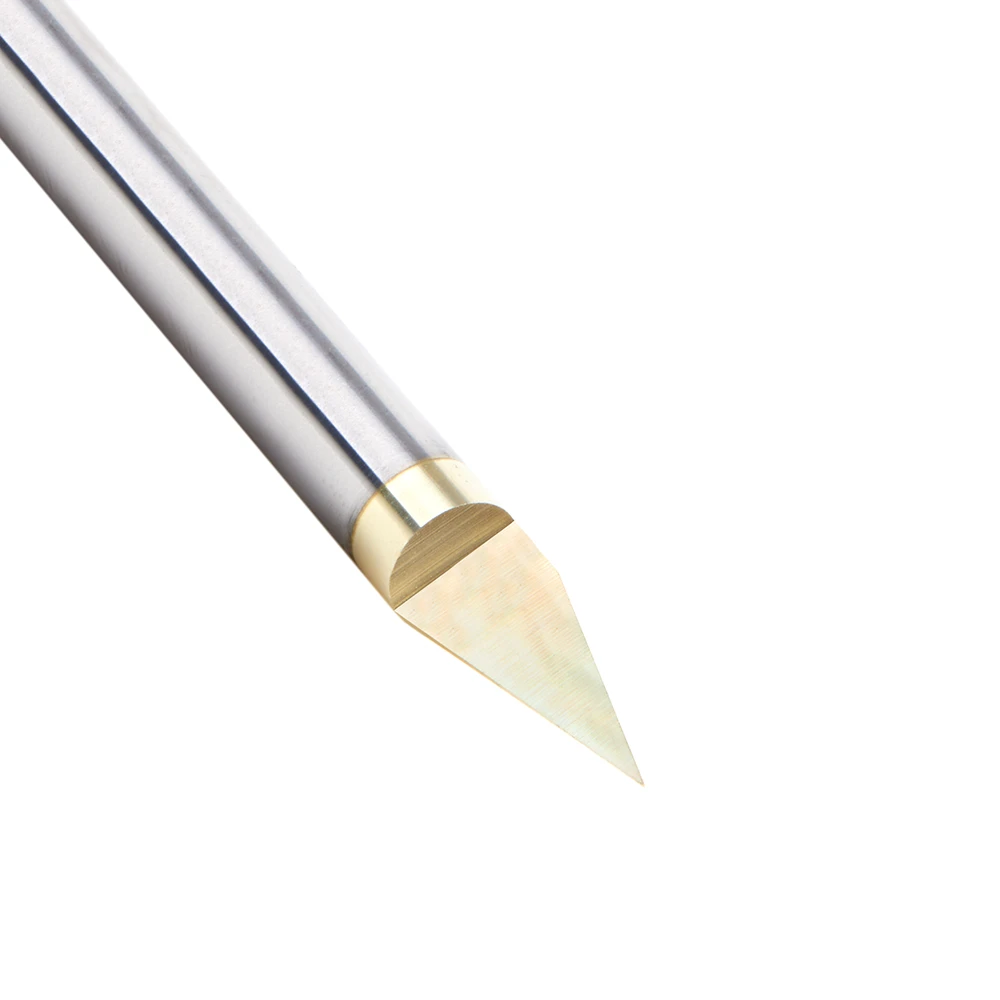

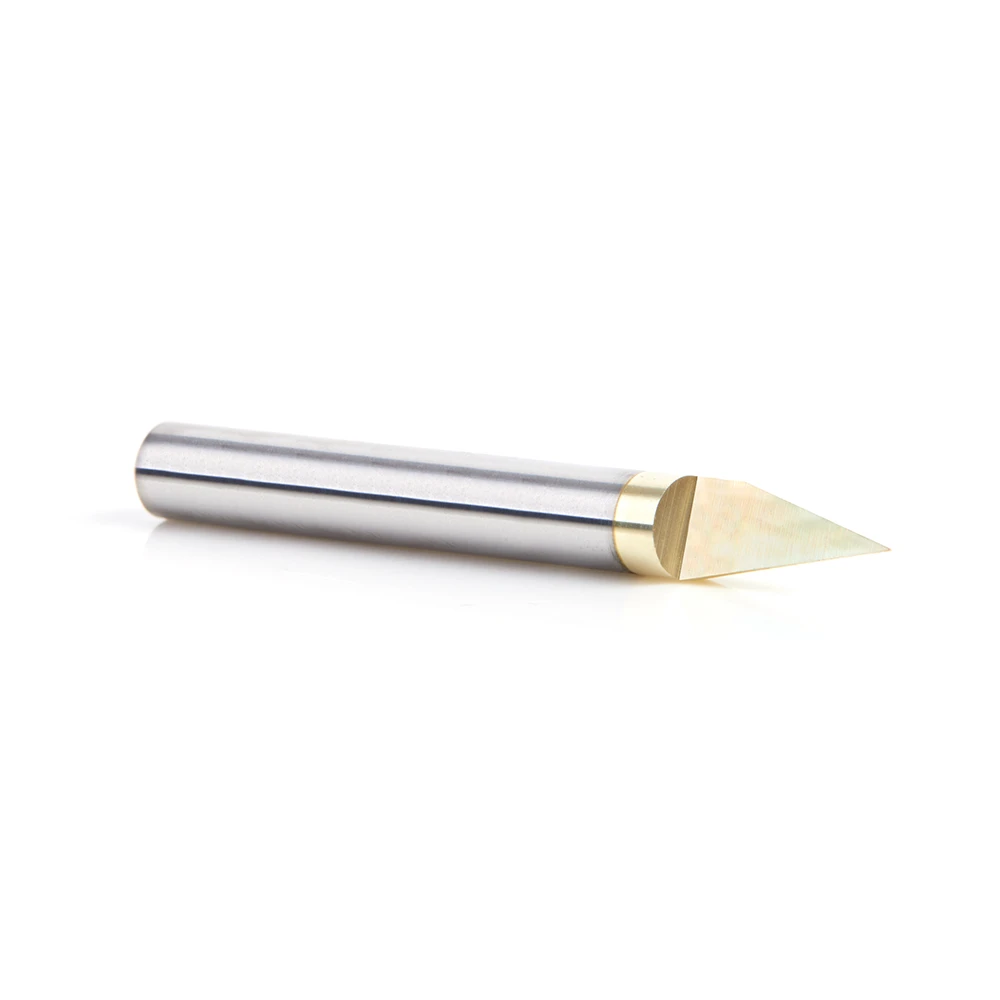

45771-Z Solid Carbide 30 Degree Engraving 0.005 Tip Width x 1/4 Inch Shank Signmaking ZrN Coated Router Bit

$57.23

Usually ships on the 2nd business day from order date.
(a°) Angle 30°
(B) Cutting Height 0.440"
Shank (d) 1/4
Overall Length (L) 2-1/4
Tip Width (t) 0.005"
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

For extra-fine carving and lettering details. These tools are used for wood, plastic, aluminum and solid surface materials. Maximum RPM 28,000.

Benefits of Zirconium Nitride (ZrN) Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

Specifications

Angle (a°) 30°
Cutting Height (B) 0.440"
Shank (d) 1/4
Overall Length (L) 2-1/4
Tip Width (t) 0.005"
