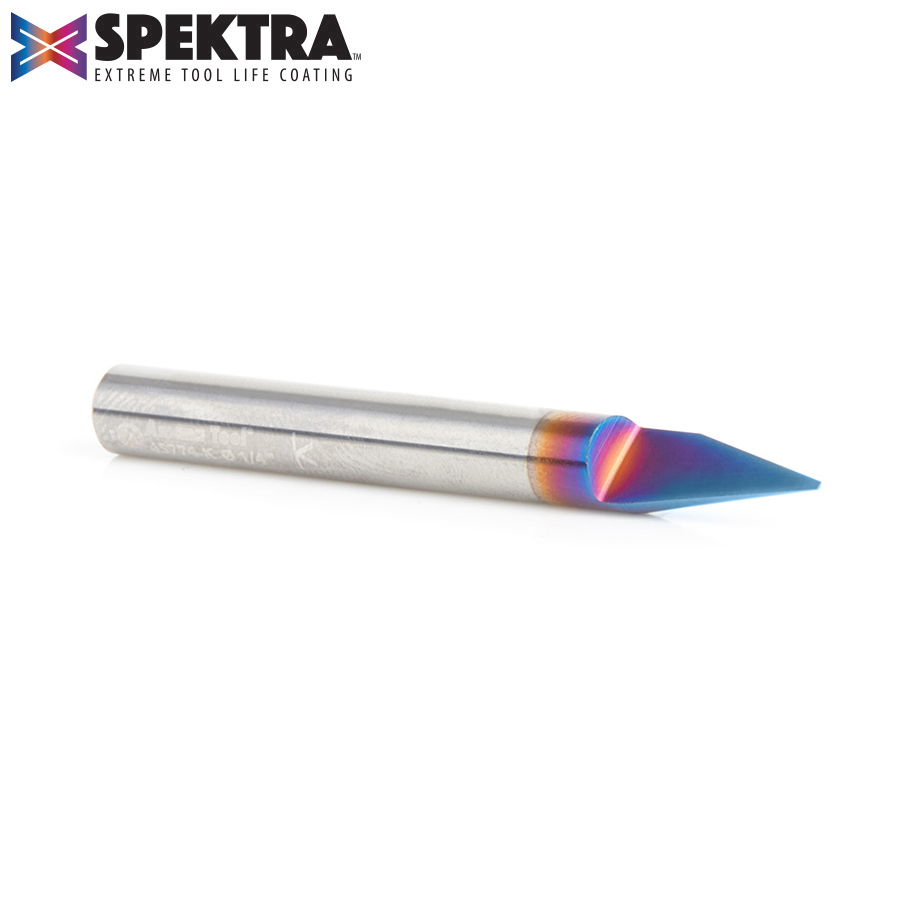

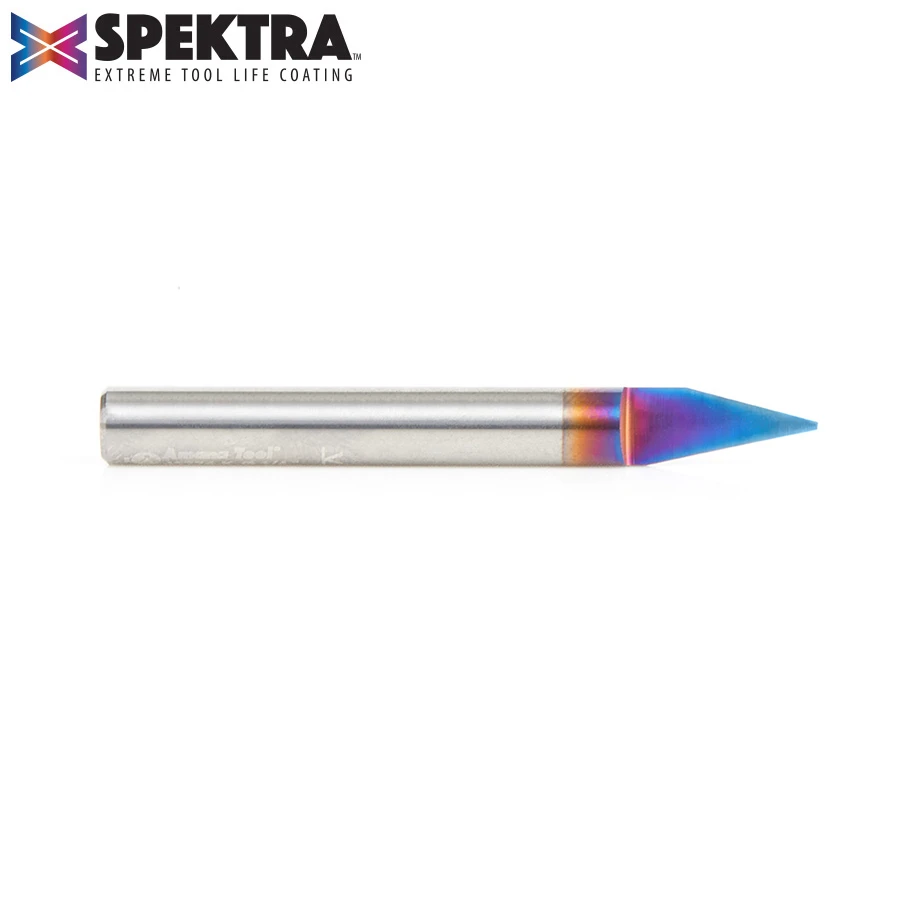

45774-K Solid Carbide 30 Degree Engraving 0.030 Tip Width x 1/4 Inch Shank Signmaking Spektra™ Extreme Tool Life Coated Router Bit
$74.10
Usually ships on the 2nd business day from order date.
| Angle-a | 30° |
|---|---|
| Cutting-height-b | 0.400" |
| Shank-d | 1/4 |
| Overall-length-l | 2-1/4 |
| Tip-width-t | 0.030" |
Description
For extra-fine carving and lettering details. These tools are used for wood, plastic and solid surface materials. Maximum RPM 28,000.
Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
- nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
- Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

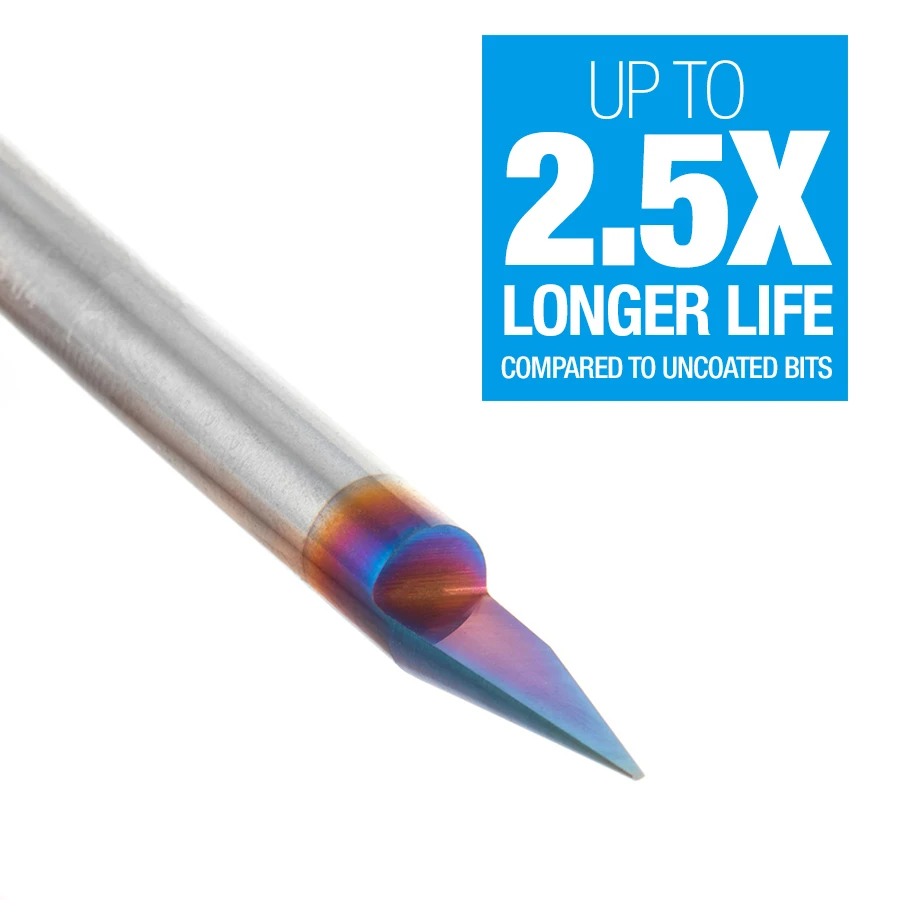

- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
Specifications
| Angle (a°) | 30° |
| Cutting Height (B) | 0.400" |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Tip Width (t) | 0.030" |
