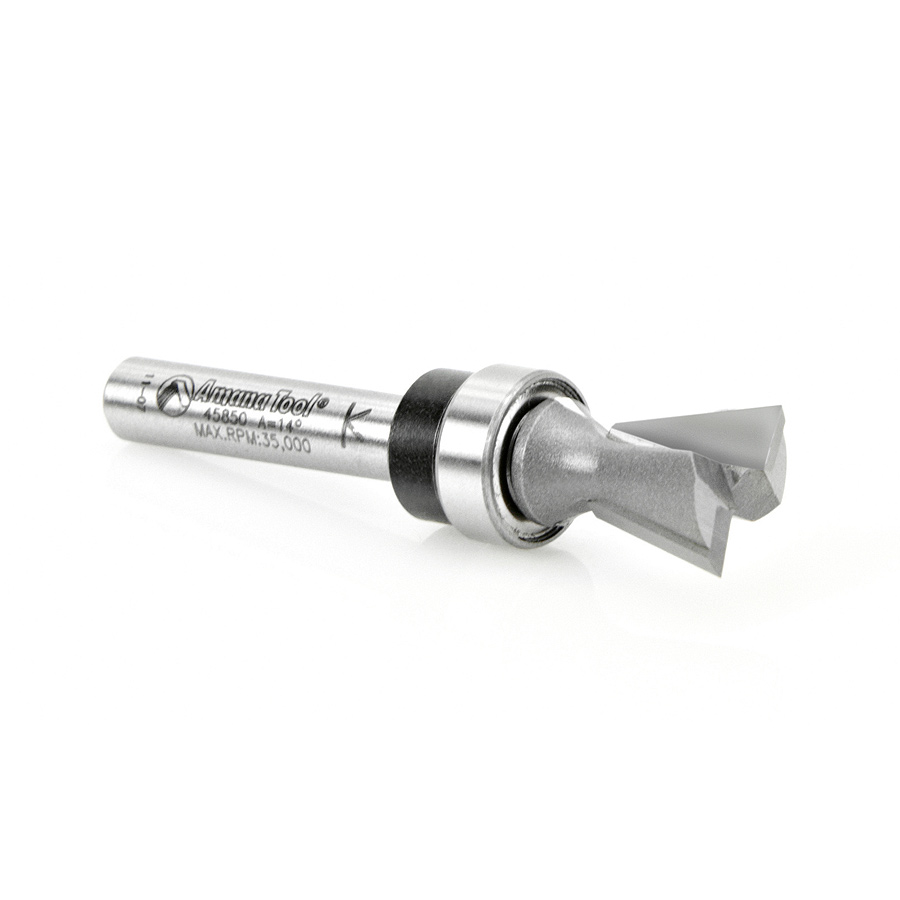

45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

$53.03

(a°) Angle 14°
Diameter (D) 1/2
(B) Cutting Height 1/2
Shank (d) 1/4
Overall Length (L) 2-1/4
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2

Description

This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.

Specifications

Angle (a°) 14°
Diameter (D) 1/2
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2-1/4
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2
