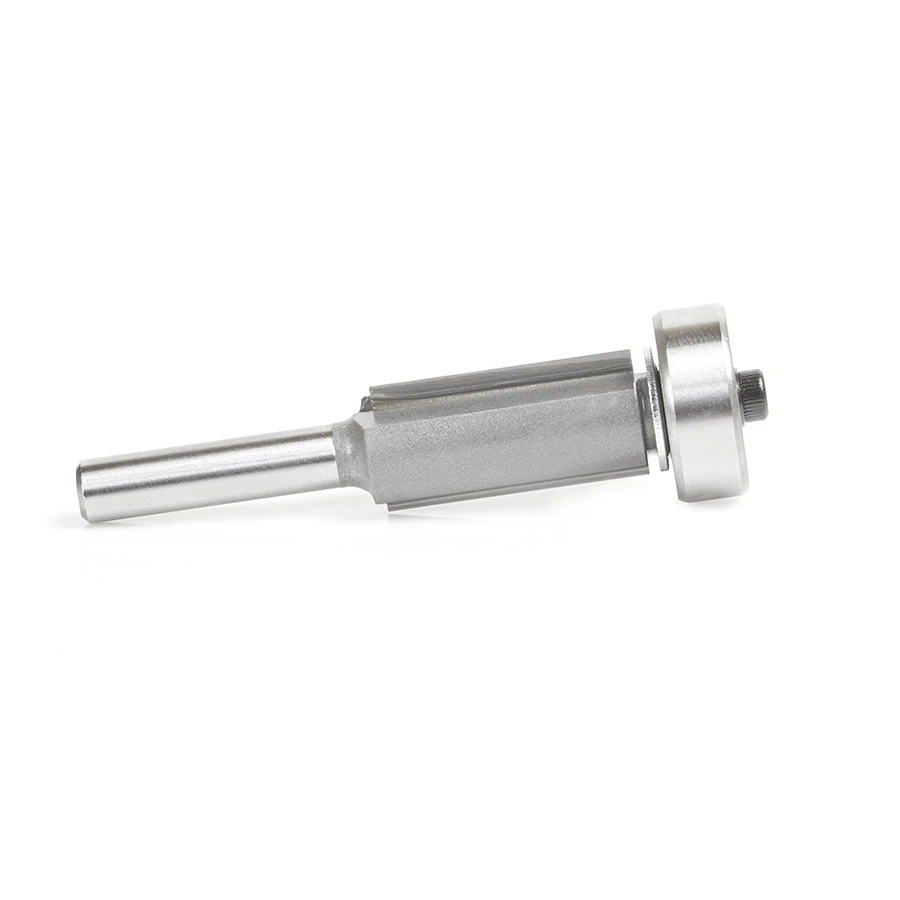

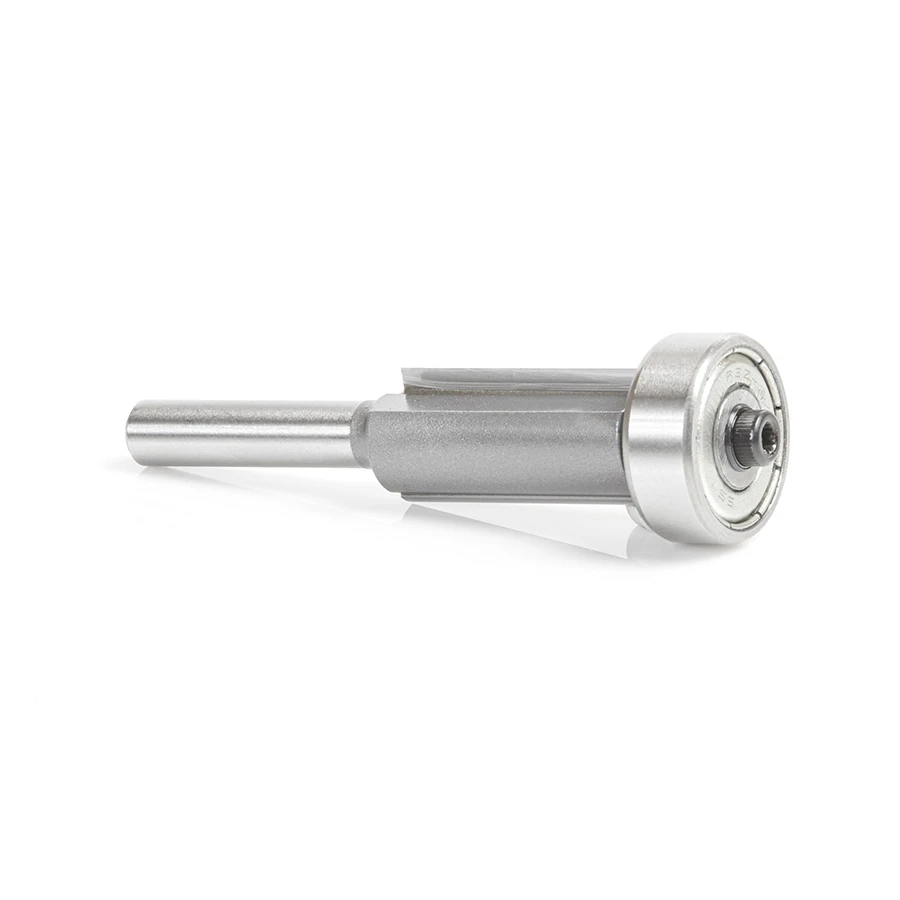

47197 Carbide Tipped Overhang Trim 1/8 Overhang x 1/2 Dia x 1 x 1/4 Inch Shank

Name: 47197 Carbide Tipped Overhang Trim 1/8 Overhang x 1/2 Dia x 1 x 1/4 Inch Shank
SKU: 47197
Price: 50.77 CAD
Availability: InStock

$50.77

Usually ships on the 2nd business day from order date.

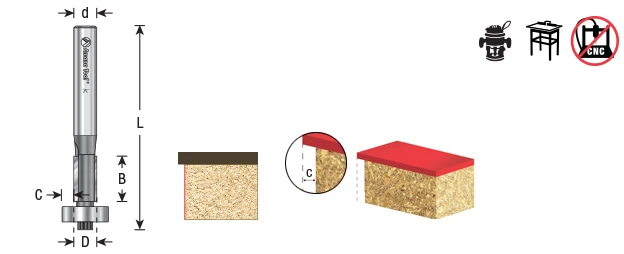

Diameter (D)	1/2
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	2-5/8
Replacement Bearing	47720
Flutes	2
C	1/8

UPC: 738685471975.0 SKU: 47197 Categories: Router Bits, Overhang Trim Router Bits

You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.
