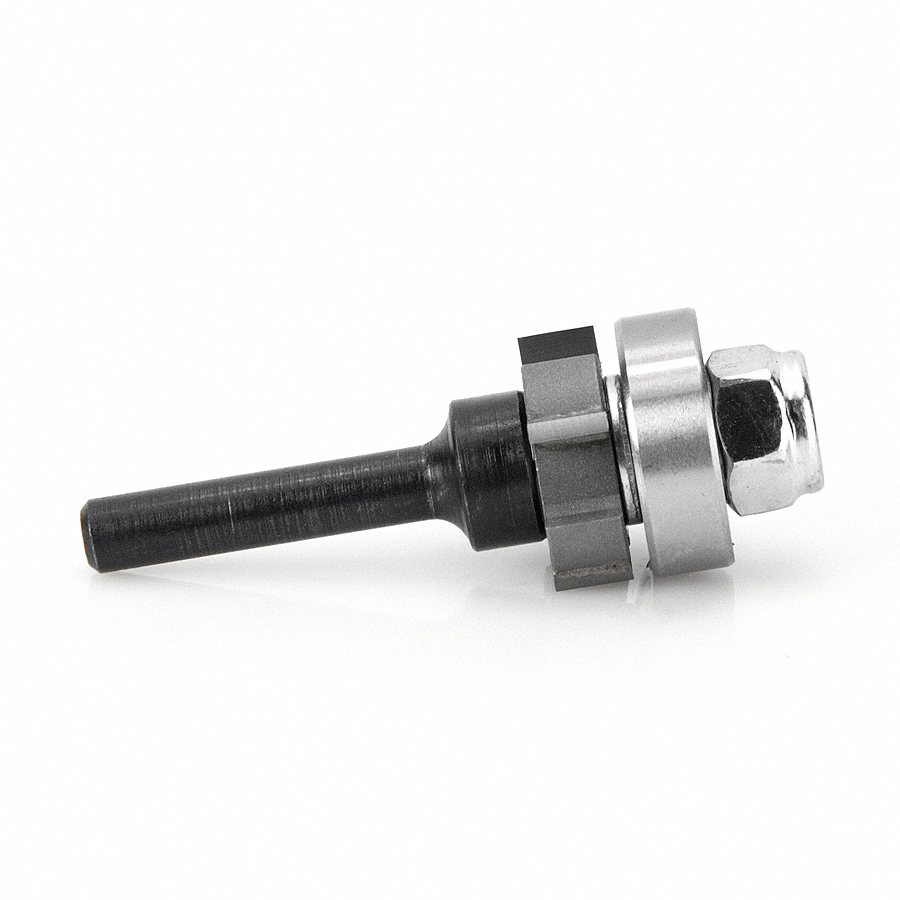

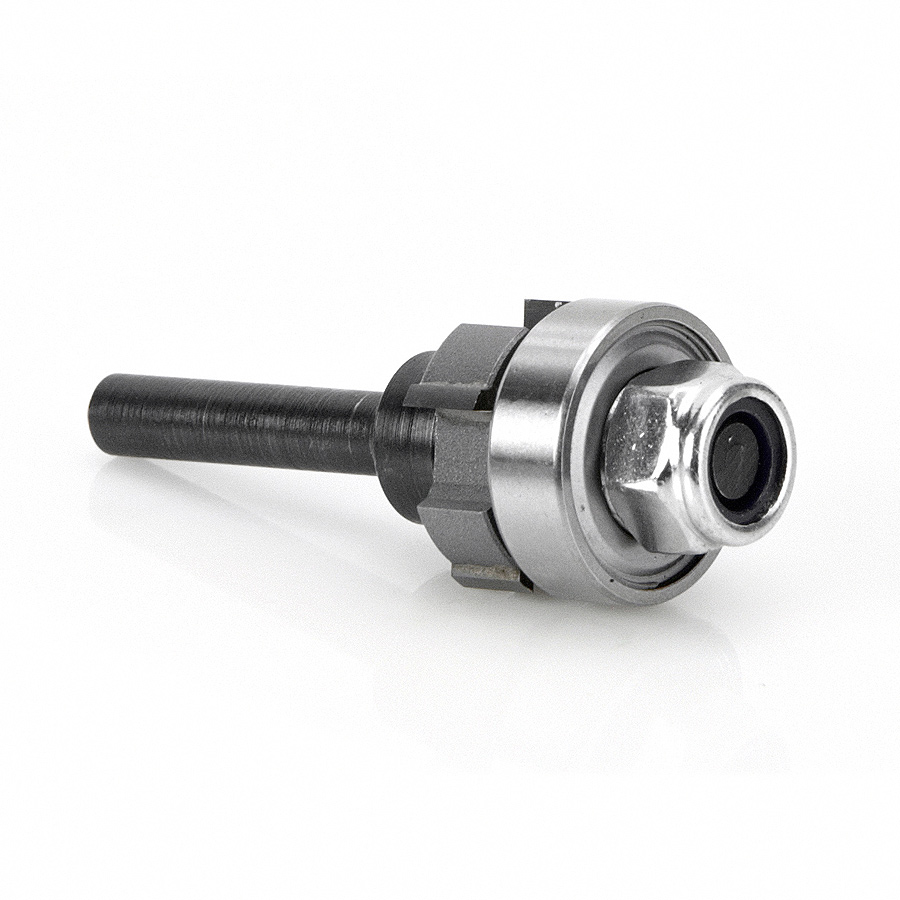

47404 Carbide Tipped 4 Wing Single Bevel Trim Cutter Assembly 15 Deg x 1 Inch Dia x 1/4 x 1/4 Shank

Name: 47404 Carbide Tipped 4 Wing Single Bevel Trim Cutter Assembly 15 Deg x 1 Inch Dia x 1/4 x 1/4 Shank
SKU: 47404
Availability: InStock

$63.00

Usually ships on the 2nd business day from order date.

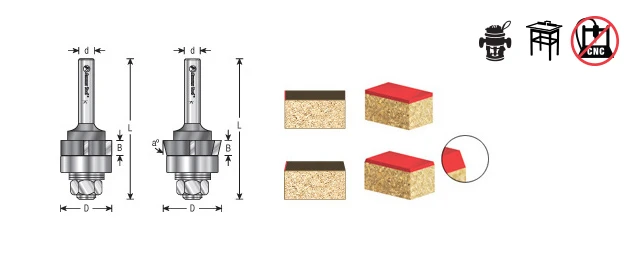

(a°) Angle	15°
Diameter (D)	1
(B) Cutting Height	1/4
Shank (d)	1/4
Overall Length (L)	2-3/8
Replacement Bearing	47708
# Wings	4

UPC: 738685874042.0 SKU: 47404 Categories: Guitarmaking/Luthier Router Bits & Saw Blades, Router Bits, Bevel Trim Router Bits

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

An assembly offers the option of switching cutters – from flush trim to either of two bevel trims – without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.

All parts can be replaced individually.
