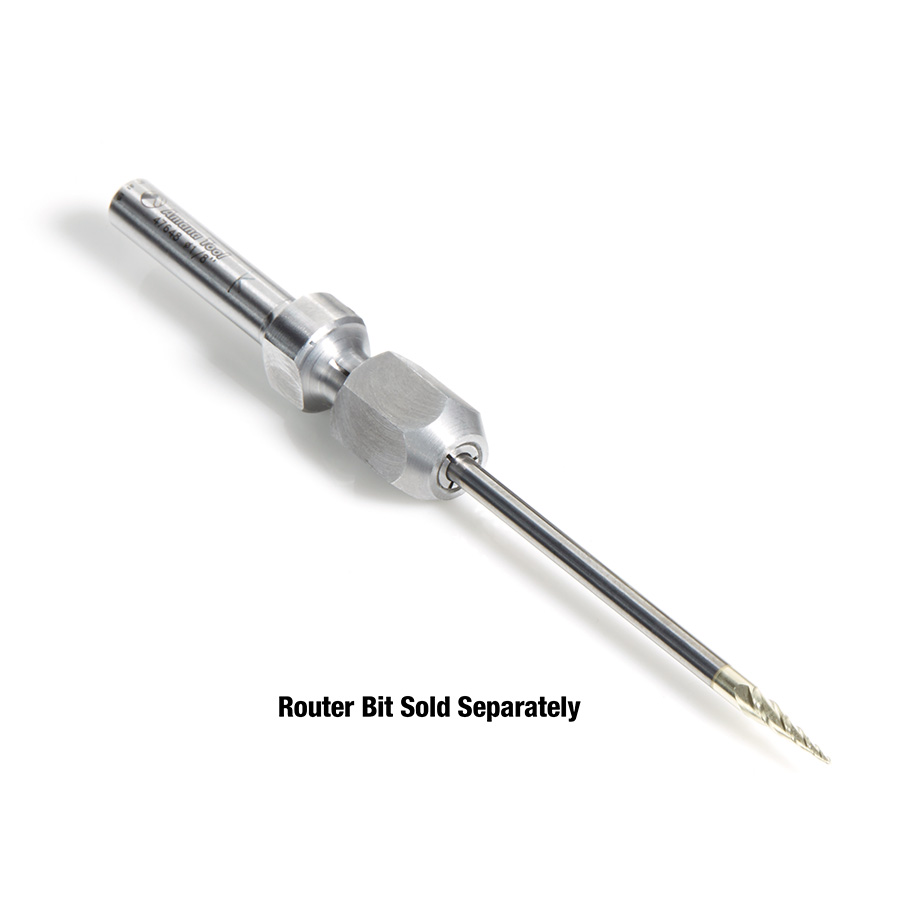

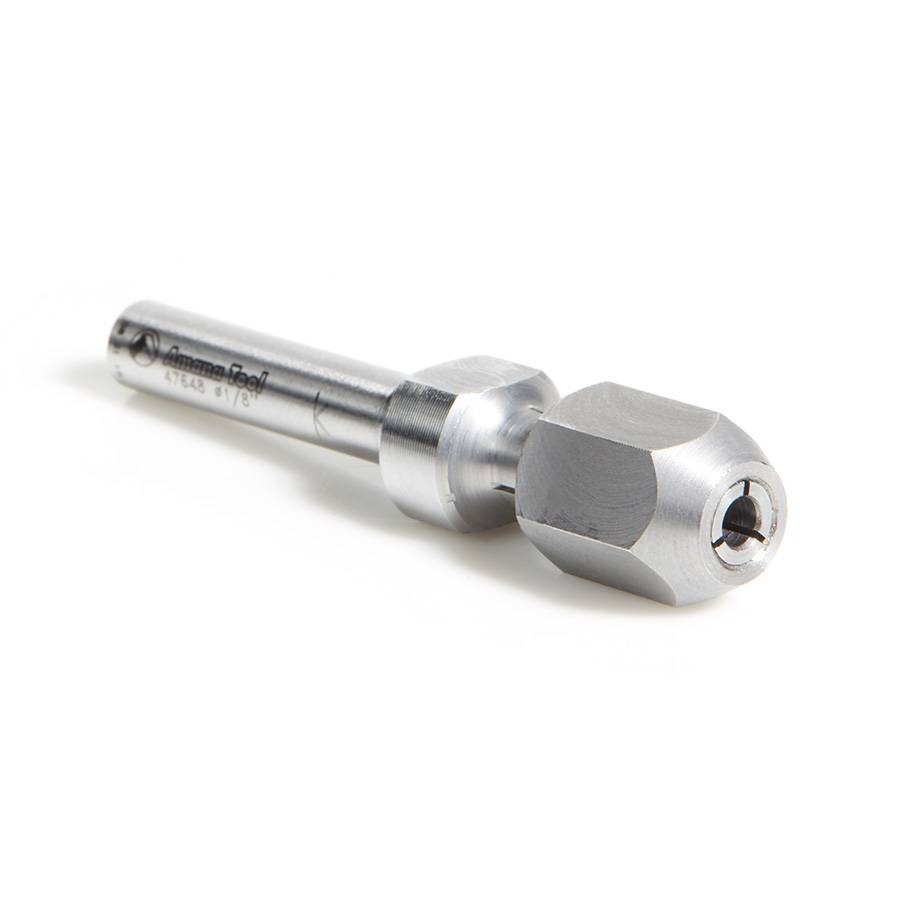

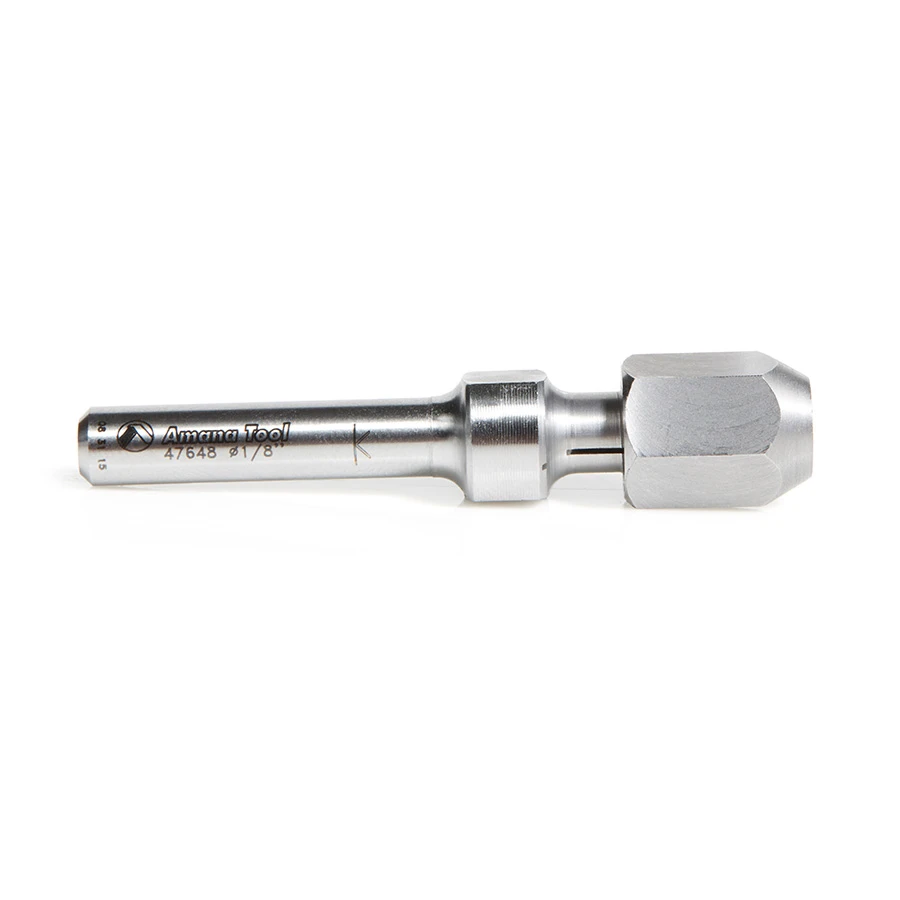

47648 1/4 Inch Shank CNC Extension Adapter for 1/8 Inch Shank Router Bits

$76.13

Usually ships on the 2nd business day from order date.
Diameter-d 7/16
Shank-d 1/4
Overall-length-l 2-1/4
Max-rpm 18,000
L1 19/32
L2 13/16
L3 1/4
D1 1/8
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685476482.0 SKU: 47648 Categories: , ,

Description

CNC Extender Adapter made especially for 1/8″ shank router bits.

Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)

Max RPM 18,000

Specifications

Diameter (D) 7/16
Shank (d) 1/4
Overall Length (L) 2-1/4
Max RPM 18,000
L1 19/32
L2 13/16
L3 1/4
D1 1/8
