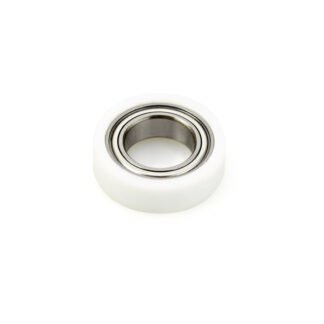

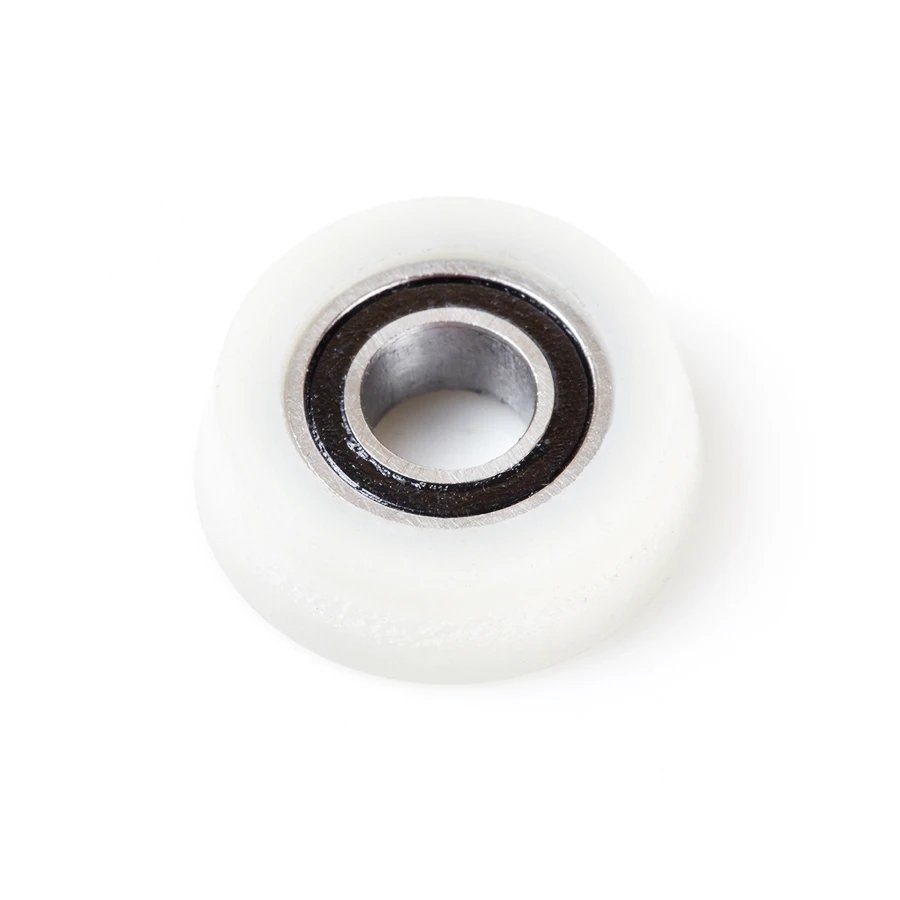

47774 Ultra-Glide High Performance Ball Bearing 3/4 Overall Dia x 1/4 Inner Dia x 10 Deg Taper
$35.14
Usually ships on the 2nd business day from order date.
| (a°) Angle | 10° |
|---|---|
| Diameter (D) | 3/4 |
| Application | 57170 |
| B | 1/4 |
| D | 1/4 |
Description
Using the same quality standards as our regular steel bearings, these Ultra-Glide™ bearing assemblies feature satin-smooth Delrin® sleeves. Delrin® is an industrial synthetic plastic material similar to nylon, and will leave no marks on the material being cut. Applications include solid-surface materials such as Gibraltar® Corian,® Surell® & Fountainhead®. etc.; Plexiglas® & other clear acrylics; and plastic laminates. Not recommended for regular wood applications due to a higher wear factor.

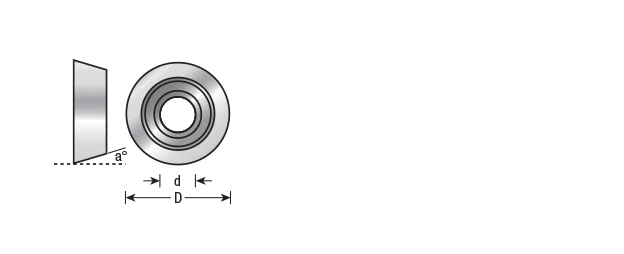

Specifications
| Angle (a°) | 10 |
| Diameter (D | 3/4 |
| Application | 57170 |
| B | 1/4 |
| d | 1/4 |
