48100 Carbide Tipped Amerock Hinge 1-1/8 Dia x 21/32 x 3/8 Shank
$66.54
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-1/8 |
|---|---|
| D1 | 3/8 |
| Radius (R) | 5/64 |
| (B) Cutting Height | 21/32 |
| B1 | 5/32 |
| Shank (d) | 3/8 |
| Overall Length (L) | 2 |
| Flutes | 2 |
Out of stock
Description

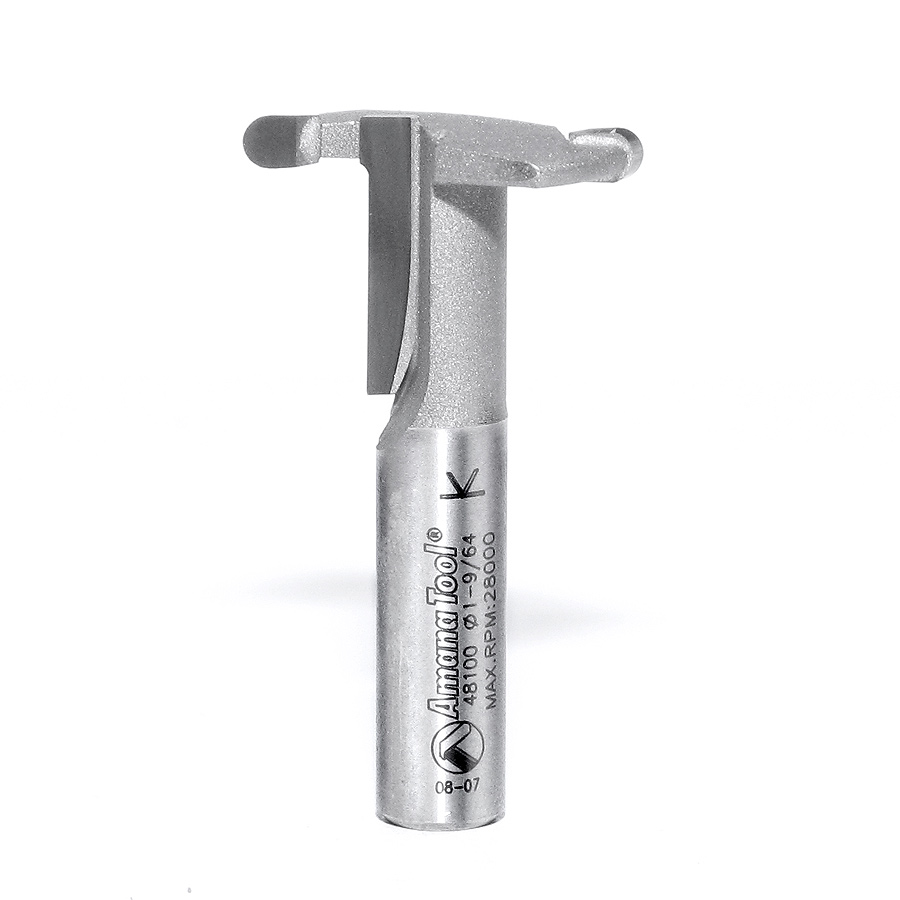

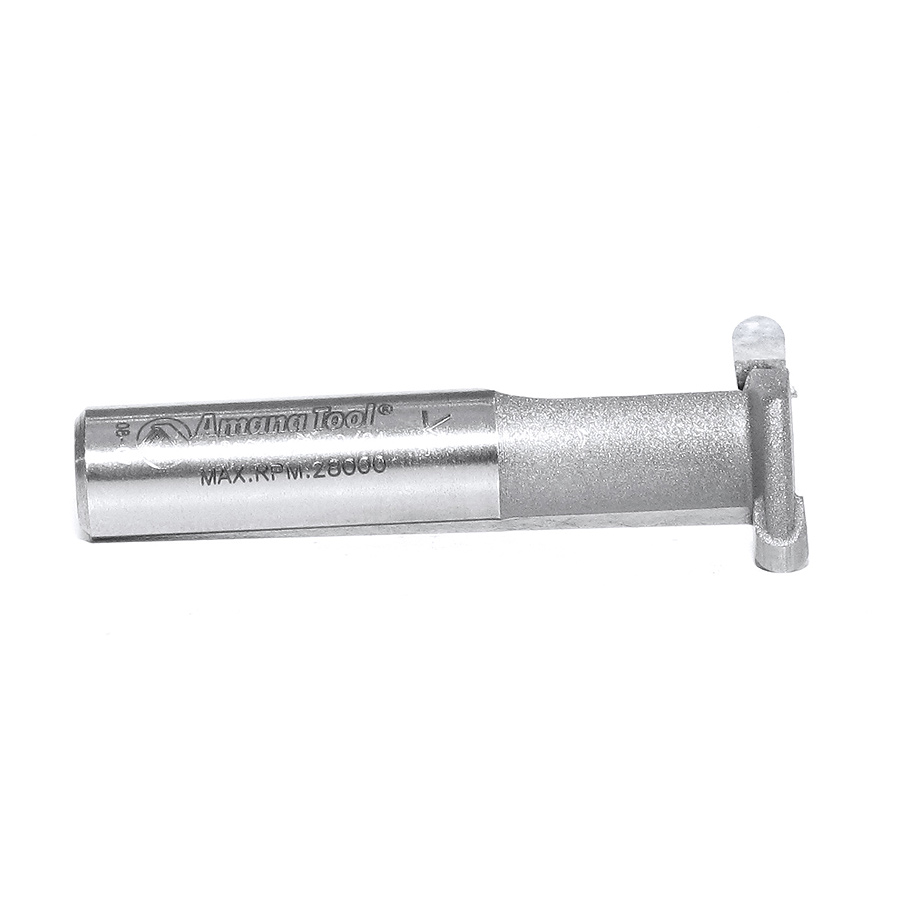

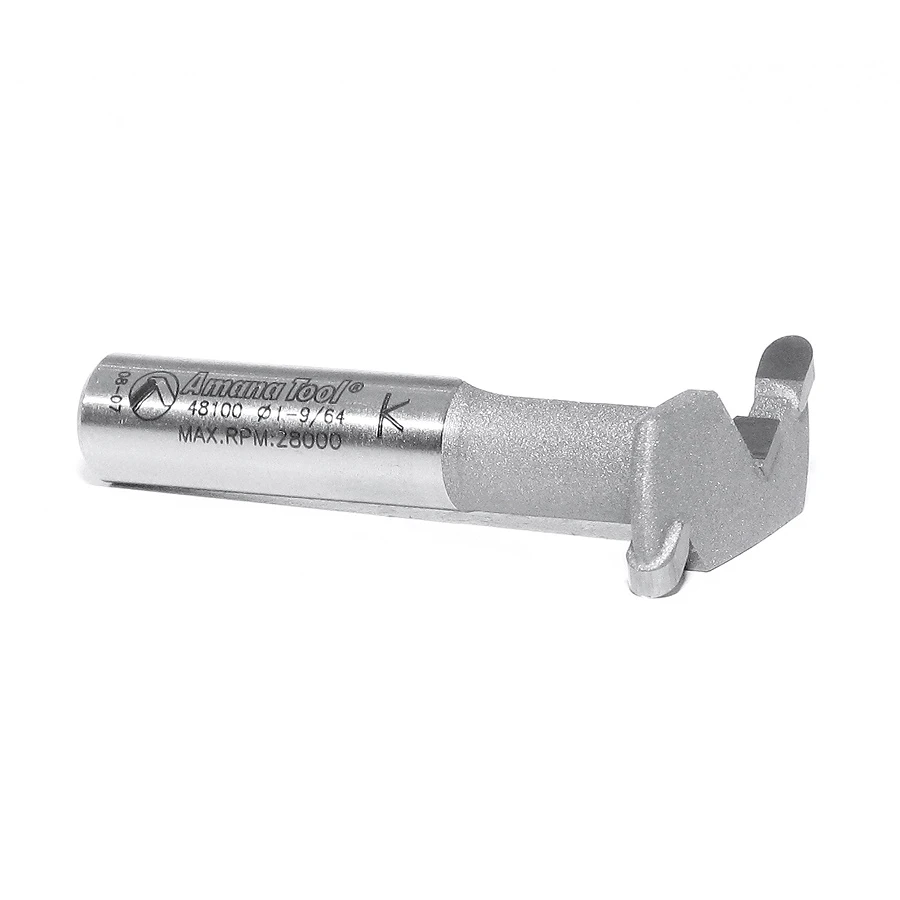

This bit is designed to produce a T-slot for Amerock® hinges. For best results use in a table-mounted router.
Specifications
| Diameter (D) | 1-1/8 |
| D1 | 3/8 |
| Radius (R) | 5/64 |
| Cutting Height (B) | 21/32 |
| B1 | 5/32 |
| Shank (d) | 3/8 |
| Overall Length (L) | 2 |
| Flutes | 2 |
