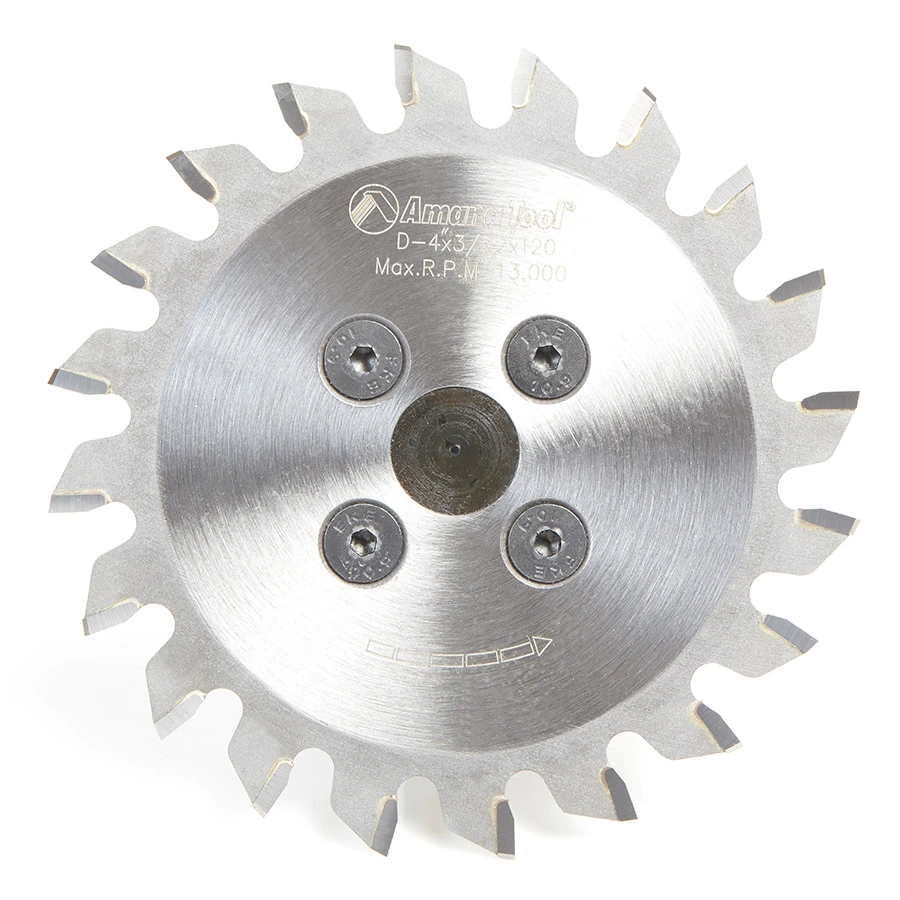

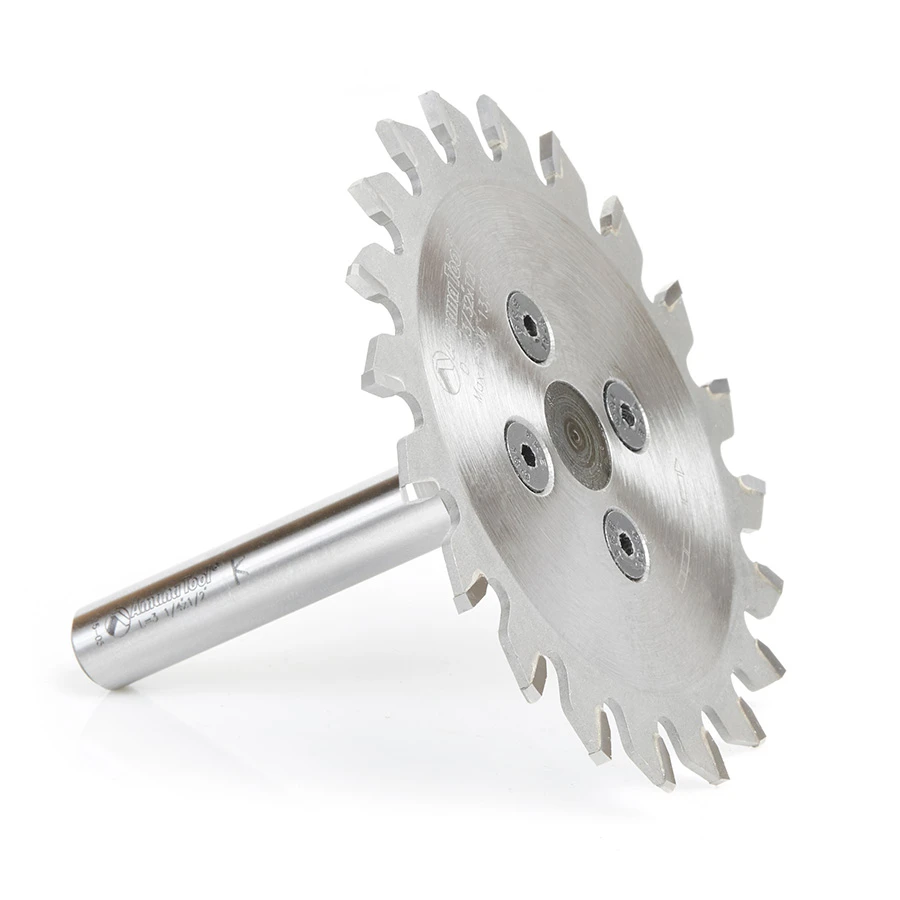

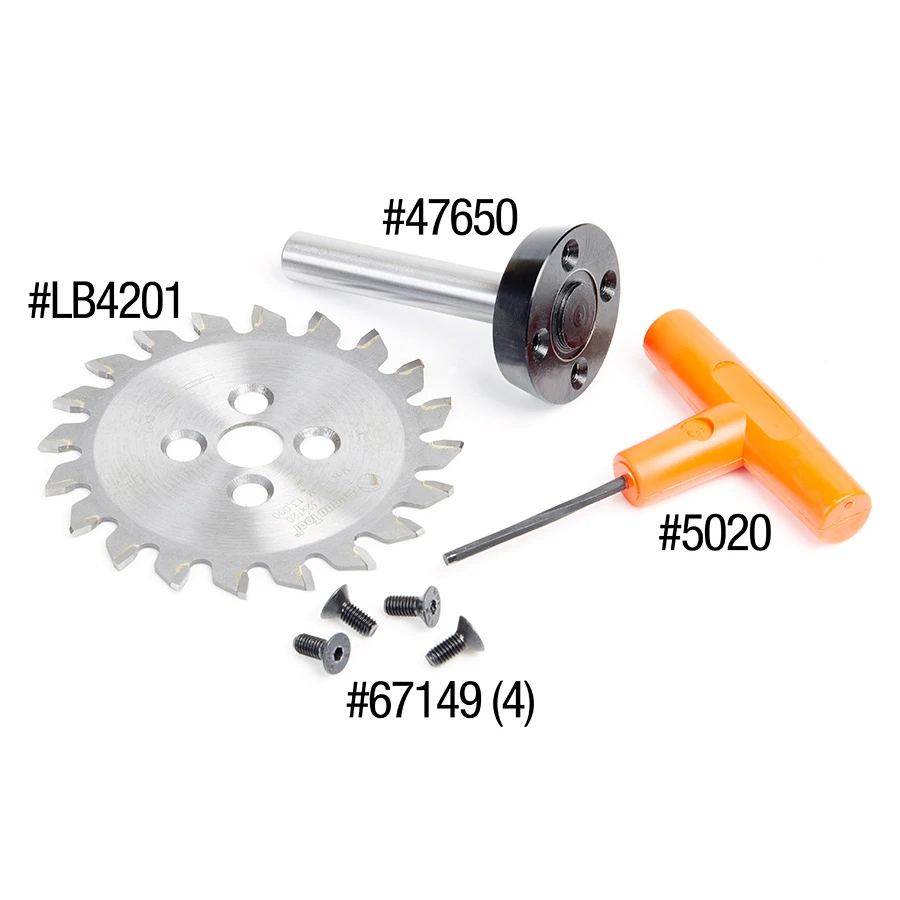

48200 Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System 4 Inch Dia x 20T TCG, 0 Deg x 1/2 Shank 100% Flash Mounting

$271.80Flag Image
Usually ships on the 2nd business day from order date.
Diameter-d 4
Shank-d 1/2
Overall-length-l 3-1/4
Max-rpm 13,000
C 1-1/8
Feed-rate-ipm 150"
Grind TCG
Teeth 20
Hook-angle 0º
Kerf-b .095" (3/32)
UPC: 738685482001.0 SKU: 48200 Categories: ,
You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Designed for trimming and grooving hard and soft plastics.

100% flash mounting.

Right hand rotation cutting.

Excellent for cutting:

  • Hard & Soft Plastics
  • Acrylonitrile Butadiene Styrene (ABS)
  • Fomex®
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Thermoplastic Polyolefin (TPO)
  • Sign Foam
  • StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
  • Urethane

Specifications

(D) Diameter 4
(d) Shank 1/2
Overall Length (L) 3-1/4
Max RPM 13,000
C 1-1/8
Feed Rate IPM 150"
Grind TCG
Teeth 20
Hook Angle 0º
Kerf (B) .095" (3/32)
