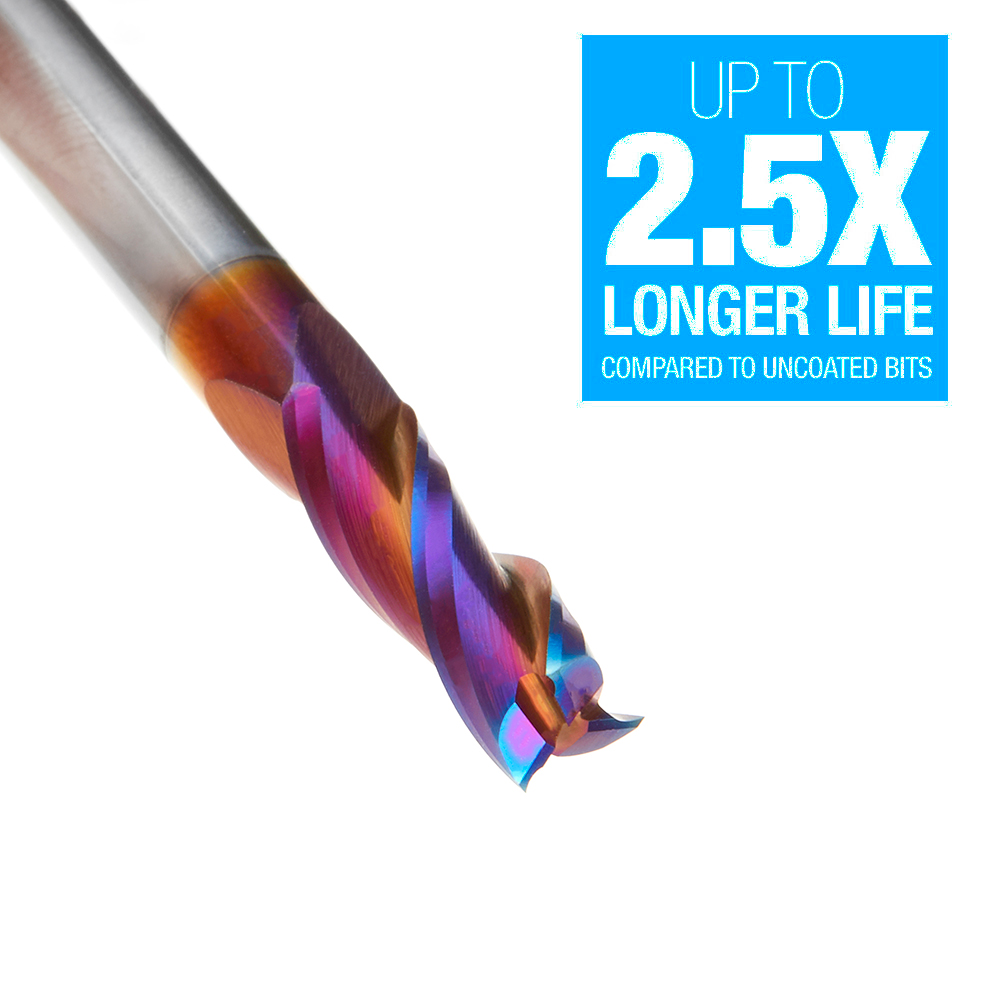

48430-K Solid Carbide Up-Cut Spiral 6mm Dia x 19mm x 6mm Shank x 63mm Long Composite, Fiberglass & Phenolic Cutting Spektra™ Extreme Tool Life Coated Router Bit

$72.74

Usually ships on the 2nd business day from order date.
Direction Up-Cut
Diameter-d 6mm
B-cutting-height 19mm
Shank-d 6mm
Overall-length-l 63mm
Flutes 3
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685484302.0 SKU: 48430-K Categories: , ,

Description

Amana Tool®’s Modern Materials Finishing Geometry (MMFG) incorporates high shear multi-flute and a Spektra™ coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring Spektra™ coating addresses these challenges with a winning geometry combination.Excellent for cutting:

  • Plastic
  • Acrylic Stone
  • Aluminum
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Carbon Fiber Reinforced Polymer (CFRP)
  • Composite
  • Corian
  • Coroplast®*
  • Fiberglass
  • Fiberglass PCB Board
  • HDPE
  • High Impact Polystyrene (HIPS)
  • Low Density Polyethylene (LDPE)
  • Phenolics
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)†
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Thermoplastic Polyolefin (TPO)

*A soft plastic cardboard made with super soft super flexible PVC.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Specifications

Direction Up-Cut
Diameter (D) 6mm
(B) Cutting Height 19mm
Shank (d) 6mm
Overall Length (L) 63mm
Flutes 3
