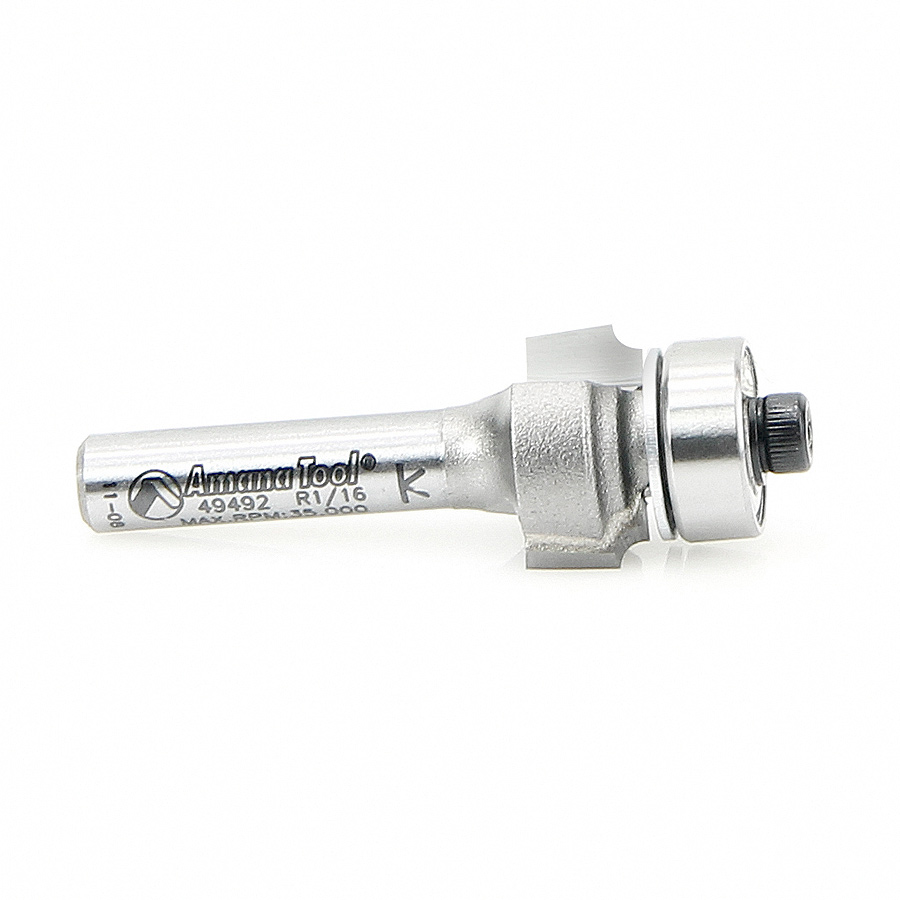

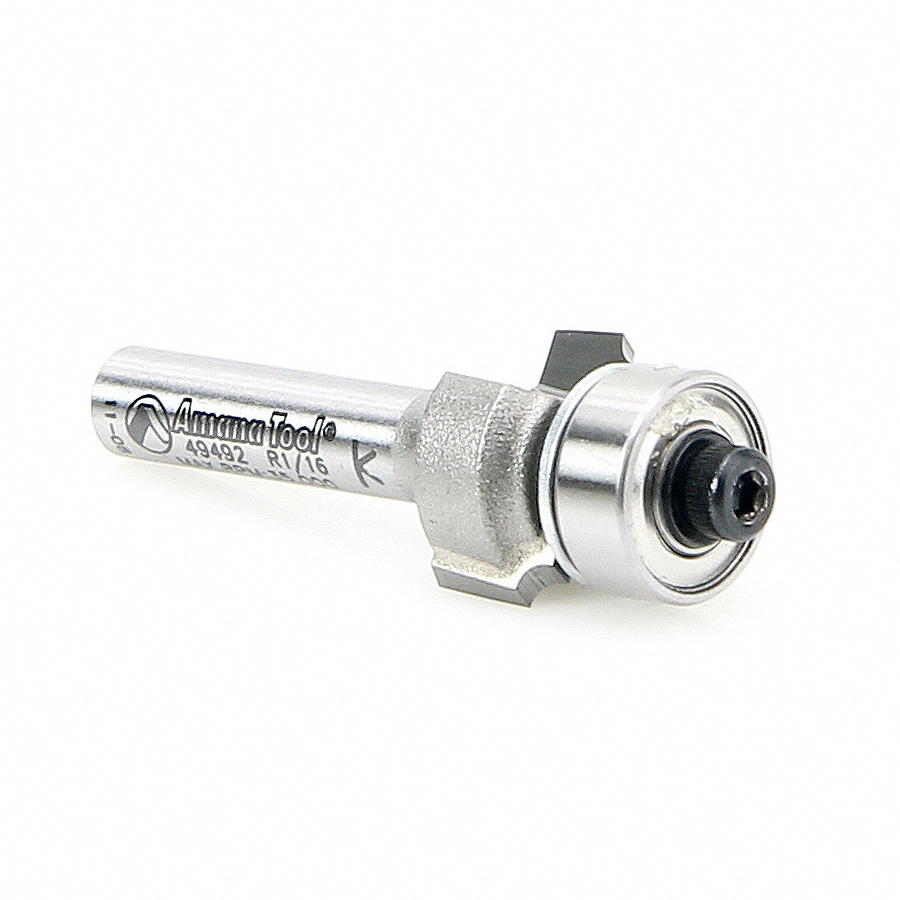

49492 Carbide Tipped Corner Round 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank

$35.13

Usually ships on the 2nd business day from order date.

Diameter (D)	5/8
D1	1/2
Radius (R)	1/16
(B) Cutting Height	5/16
Shank (d)	1/4
Overall Length (L)	1-3/4
Replacement Bearing	47706
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

49492 Carbide Tipped Corner Round 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank quantity

+ Add to cart

UPC: 738685894927 SKU: 49492 Categories: Router Bits, Profiling Router Bits - Industrial Quality from Amana Tool, Corner Round Router Bits

Share:

Description

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
