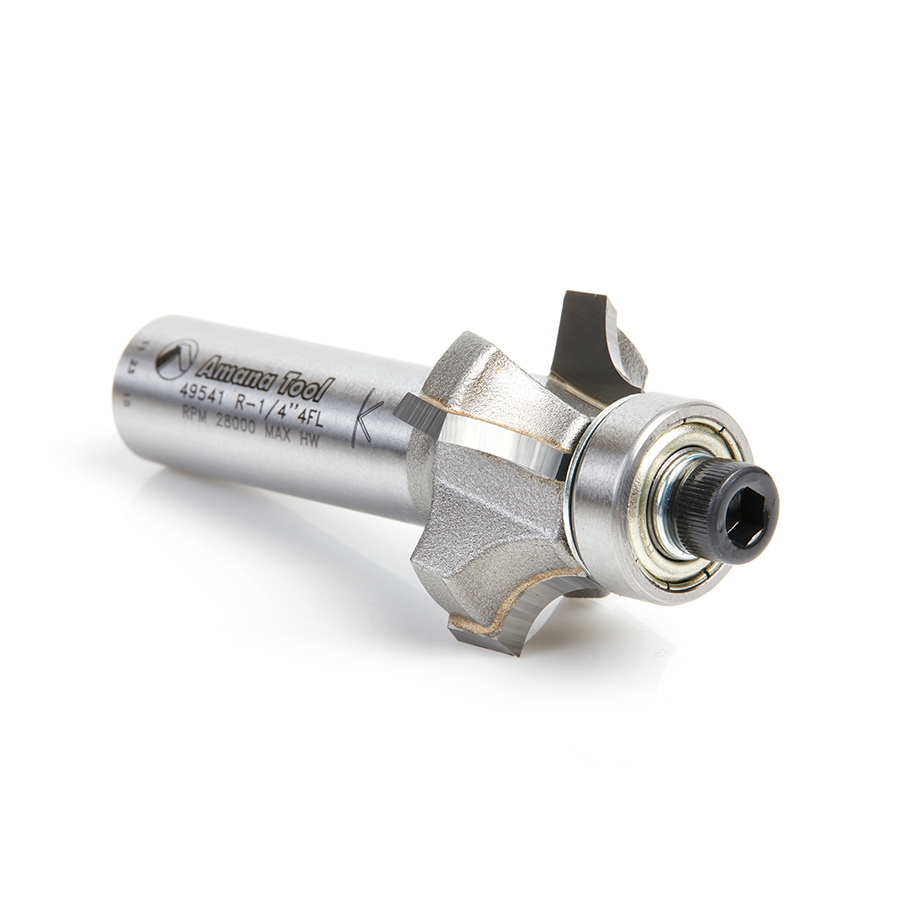

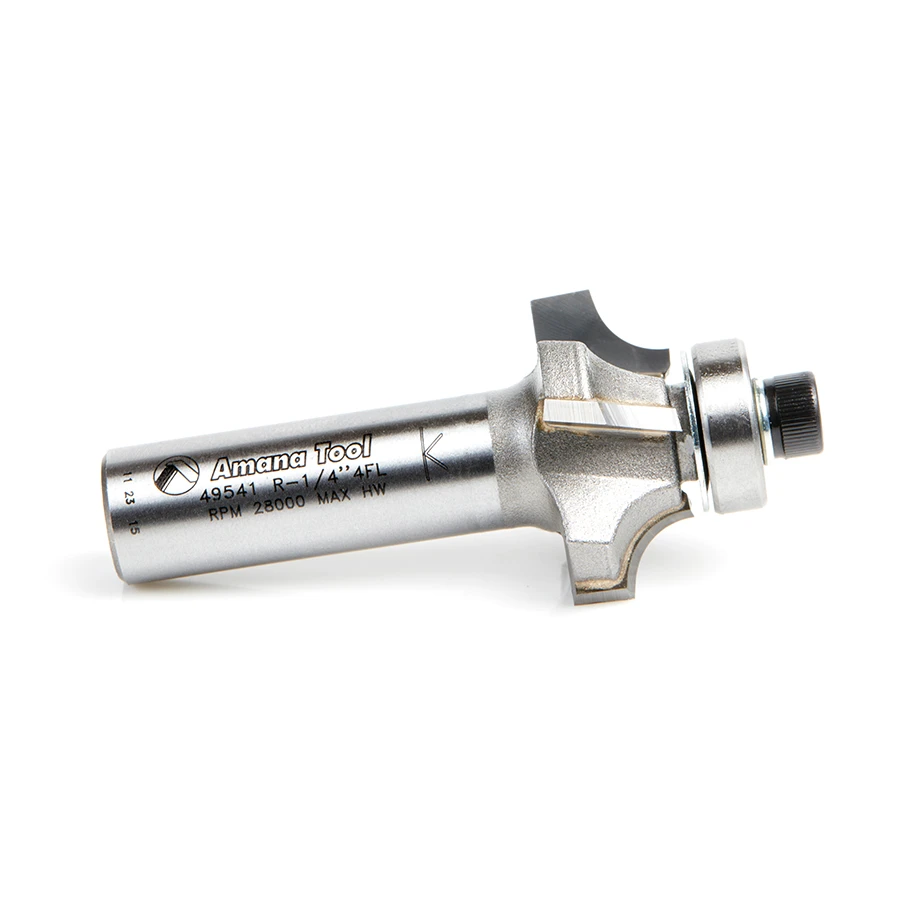

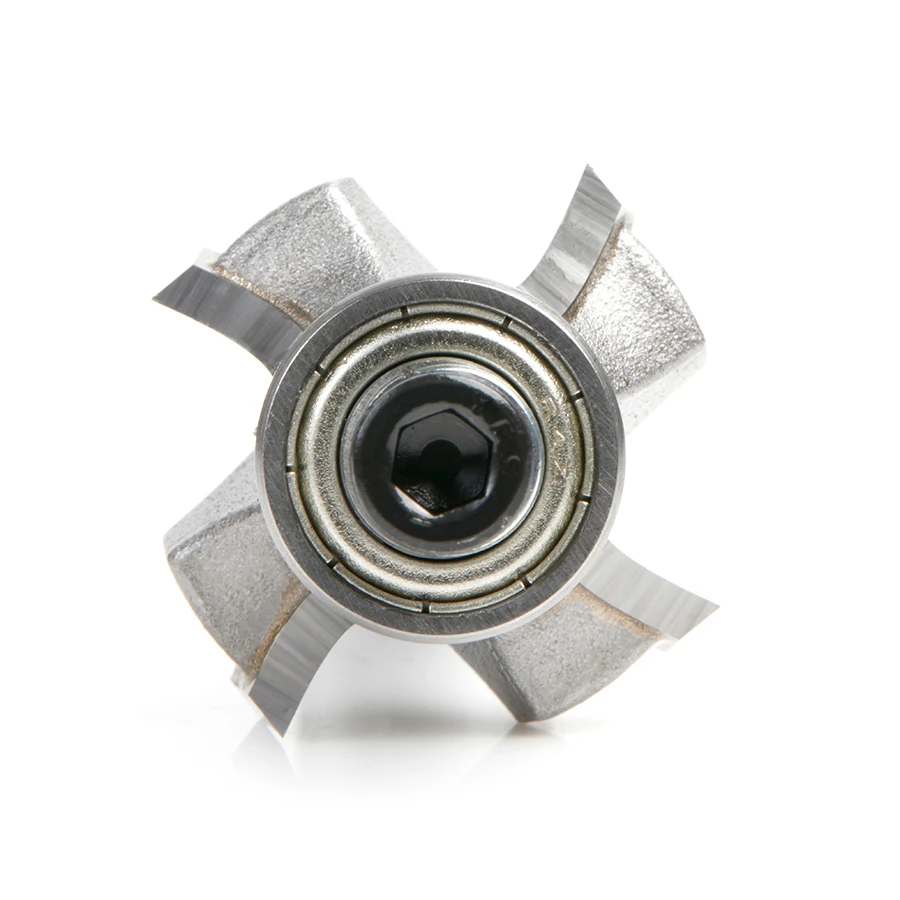

49541 Carbide Tipped 4 Flute Corner Rounding/Beading 1/4 Radius x 1-1/8 Dia x 7/16 x 1/2 Inch Shank
$64.79
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-1/8 |
|---|---|
| D1 | 5/8 |
| Radius (R) | 1/4 |
| (B) Cutting Height | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-9/16 |
| Replacement Bearing | 47712 Corner Round / 47701 Beading |
| Flutes | 4 |
Description
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. 4 flute design for super-smooth finish.
Specifications
| Diameter (D) | 1-1/8 |
| D1 | 5/8 |
| Radius (R) | 1/4 |
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-9/16 |
| Replacement Bearing | 47712 Corner Round / 47701 Beading |
| Flutes | 4 |
