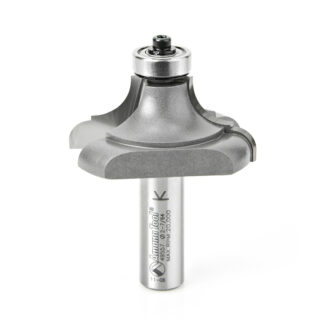

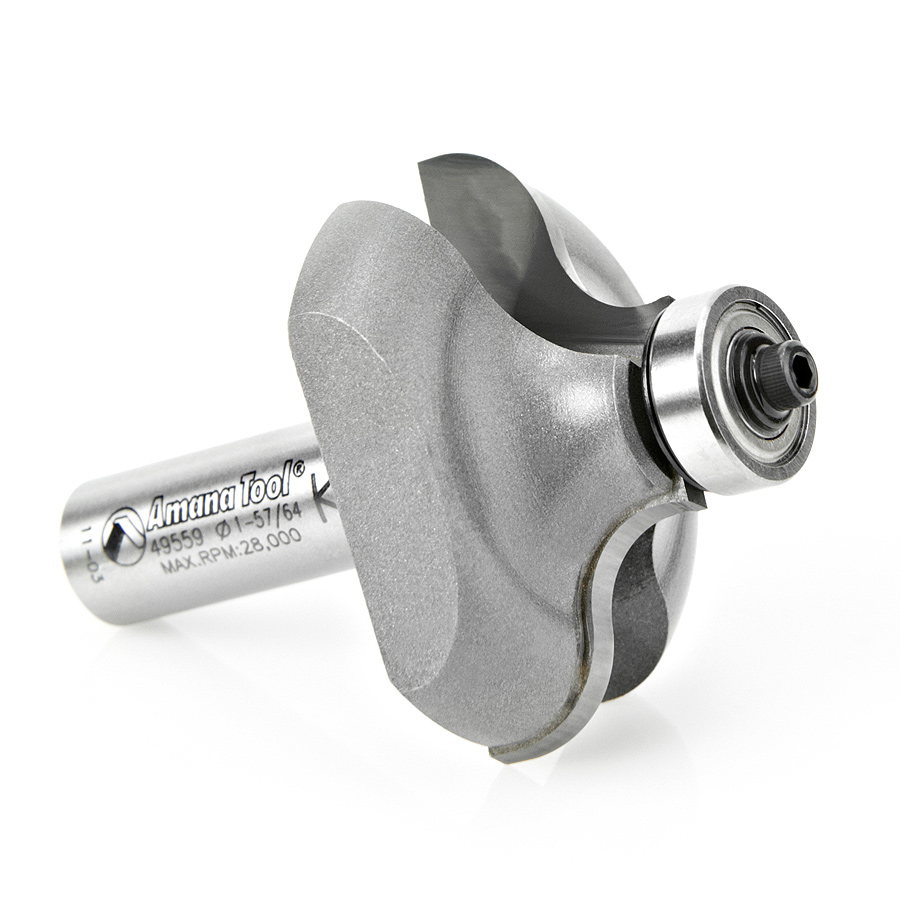

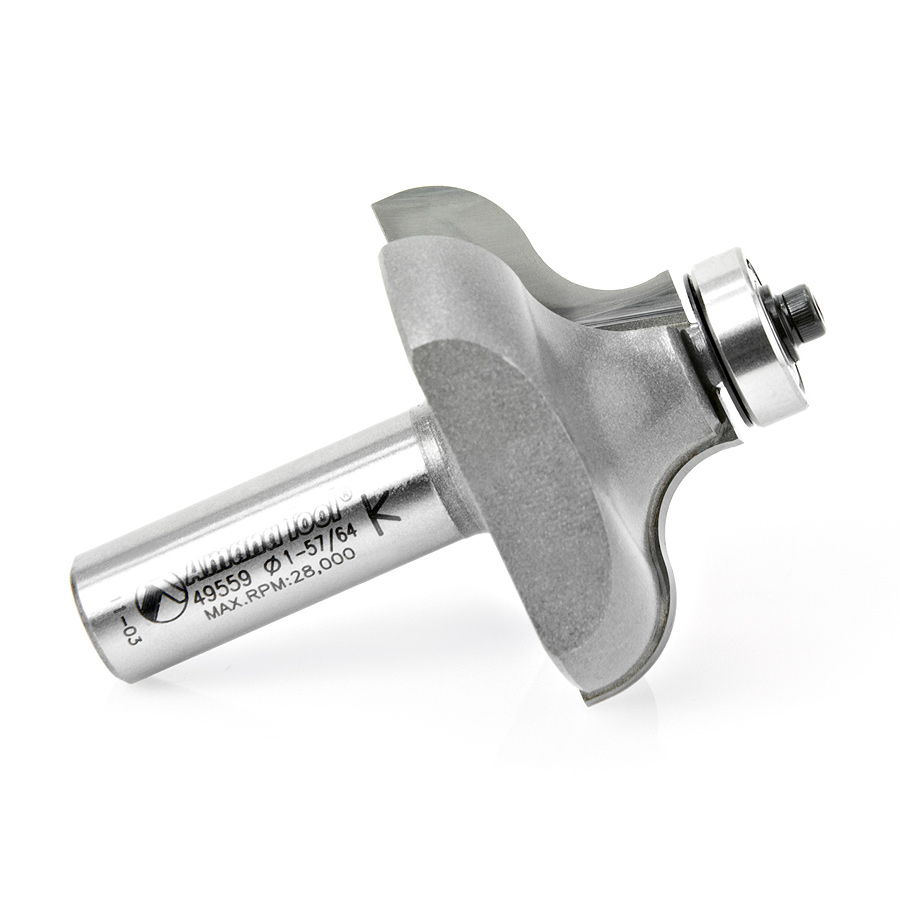

49559 Carbide Tipped Table Edge Ogee 3/8 x 5/16 Radius x 1-5/32 Dia x 7/8 x 1/2 Inch Shank

$143.54

Usually ships on the 2nd business day from order date.
Diameter (D) 1-57/64
Radius (R) 3/8
(B) Cutting Height 7/8
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47718
R1 5/16
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Profiles are designed for 3/4″ thick tops.

This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail and reduce the visual thickness of the top.

The broad curves of this ogee create a wide, elegant table edge. Notice that the curve continues under the top slightly to make a large tabletop appear thin.

Specifications

Diameter (D) 1-57/64
Radius (R) 3/8
Cutting Height (B) 7/8
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47718
R1 5/16
Flutes 2
