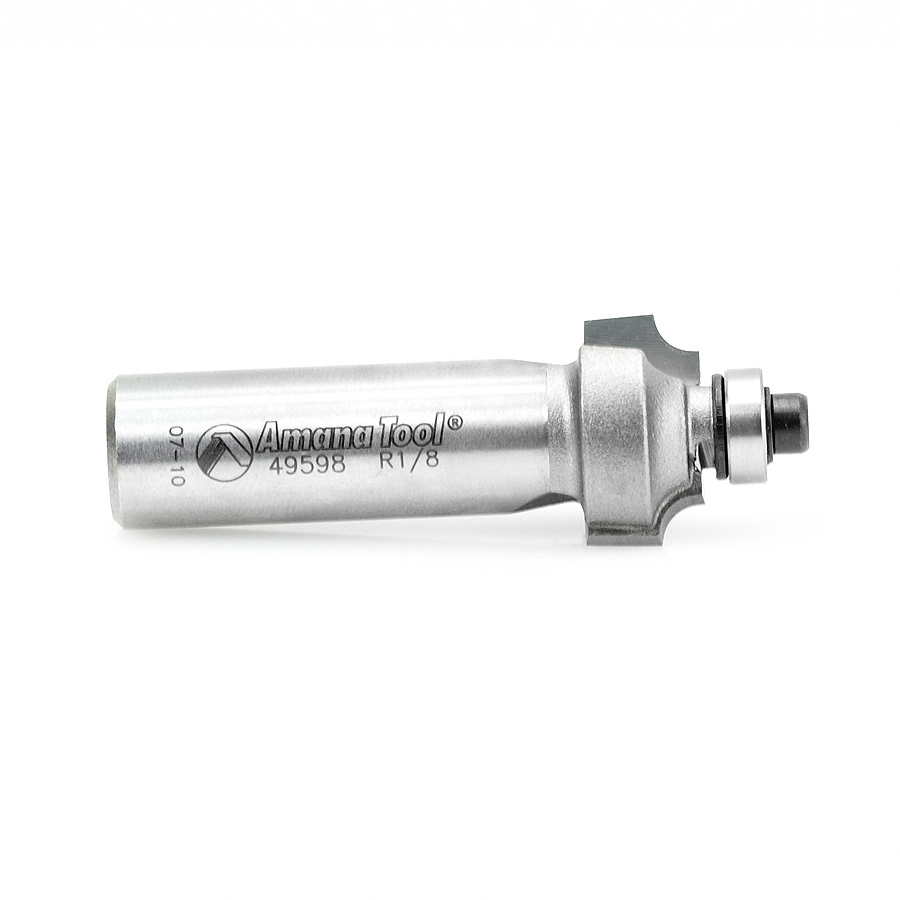

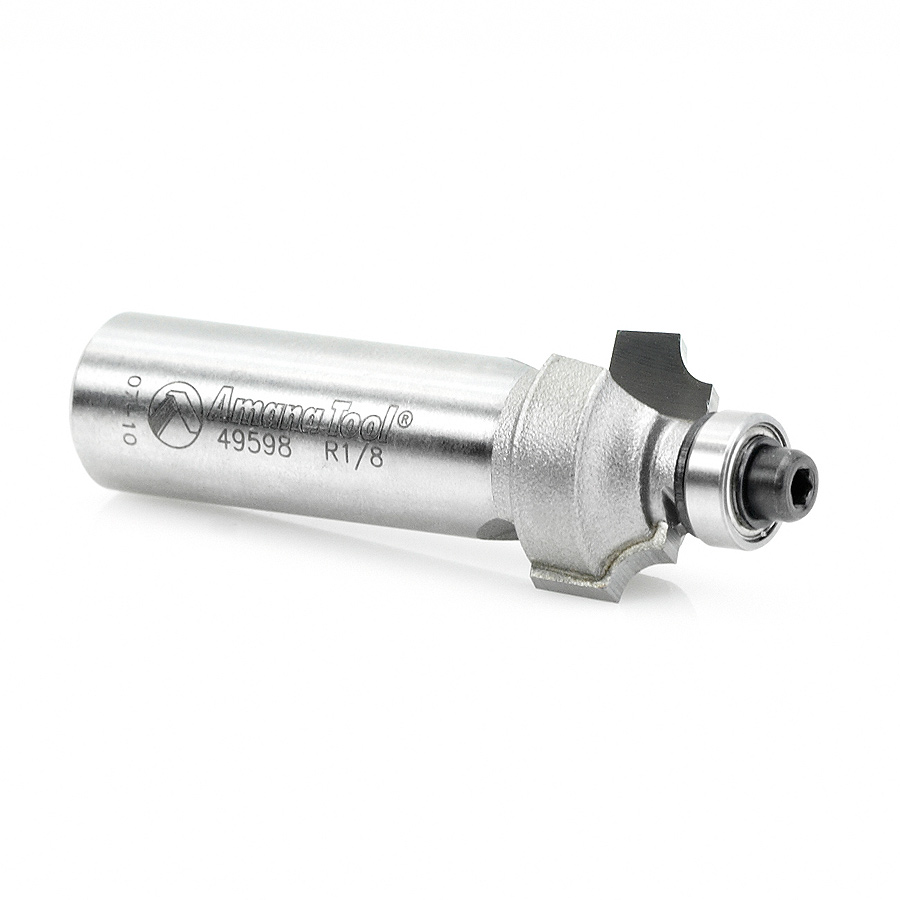

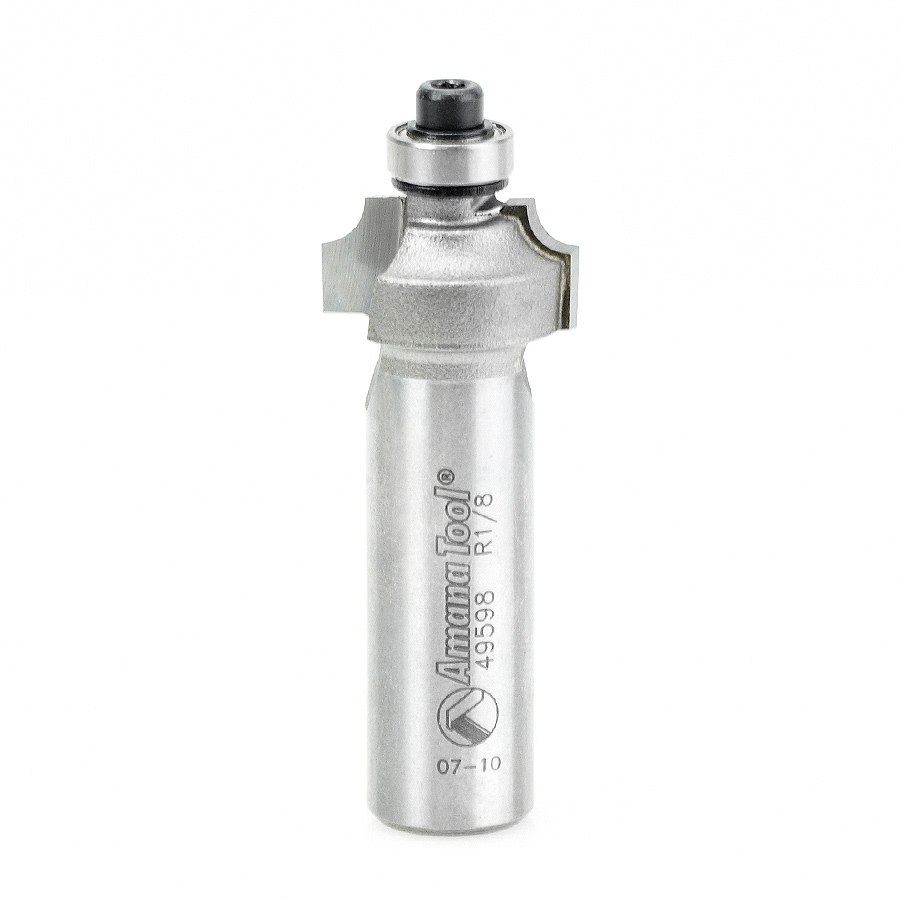

49598 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/2 Inch Shank
$36.81
Usually ships on the 2nd business day from order date.
Diameter (D) | 3/4 |
---|---|
D1 | 3/8 |
Radius (R) | 1/8 |
(B) Cutting Height | 3/8 |
Shank (d) | 1/2 |
Overall Length (L) | 2-5/16 |
Replacement Bearing | 47702 |
Flutes | 2 |
Description
Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).
Specifications
Diameter (D) | 3/4 |
D1 | 3/8 |
Radius (R) | 1/8 |
Cutting Height (B) | 3/8 |
Shank (d) | 1/2 |
Overall Length (L) | 2-5/16 |
Replacement Bearing | 47702 |
Flutes | 2 |
