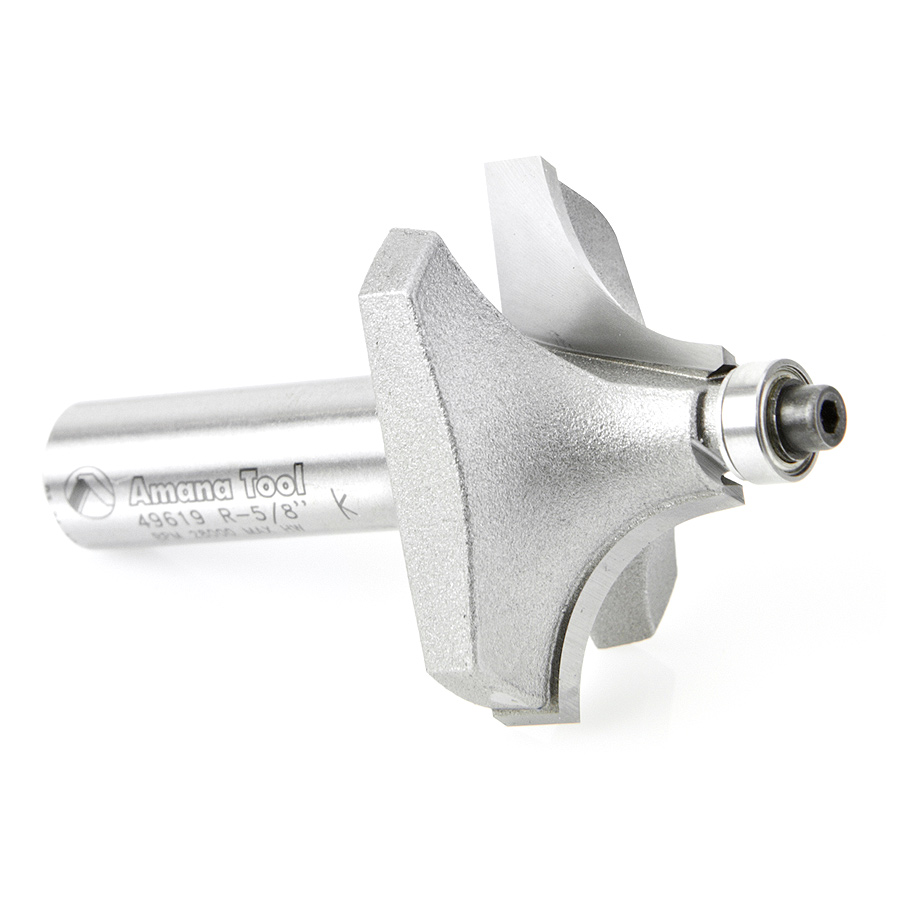

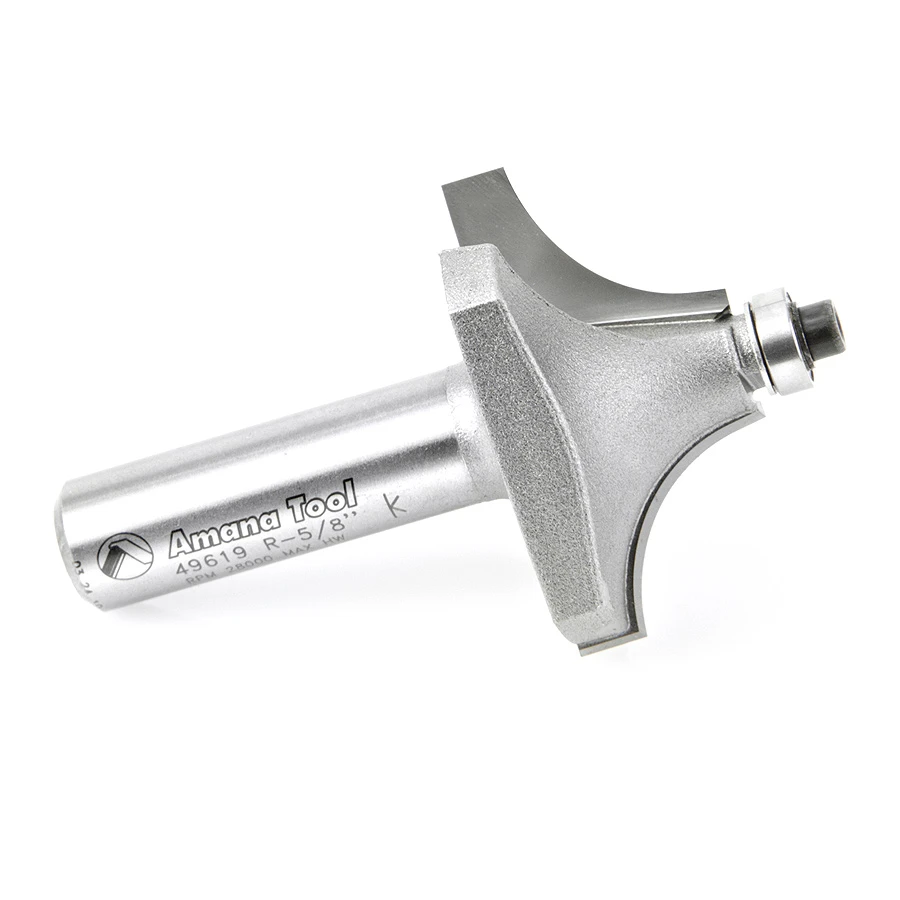

49619 Carbide Tipped Beading 5/8 Radius x 1-3/4 Dia x 7/8 x 1/2 Inch Shank

$77.64

Usually ships on the 2nd business day from order date.
Diameter (D) 1-3/4
D1 3/8
Radius (R) 5/8
(B) Cutting Height 7/8
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47702
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Specifications

Diameter (D) 1-3/4
D1 3/8
Radius (R) 5/8
Cutting Height (B) 7/8
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47702
Flutes 2
