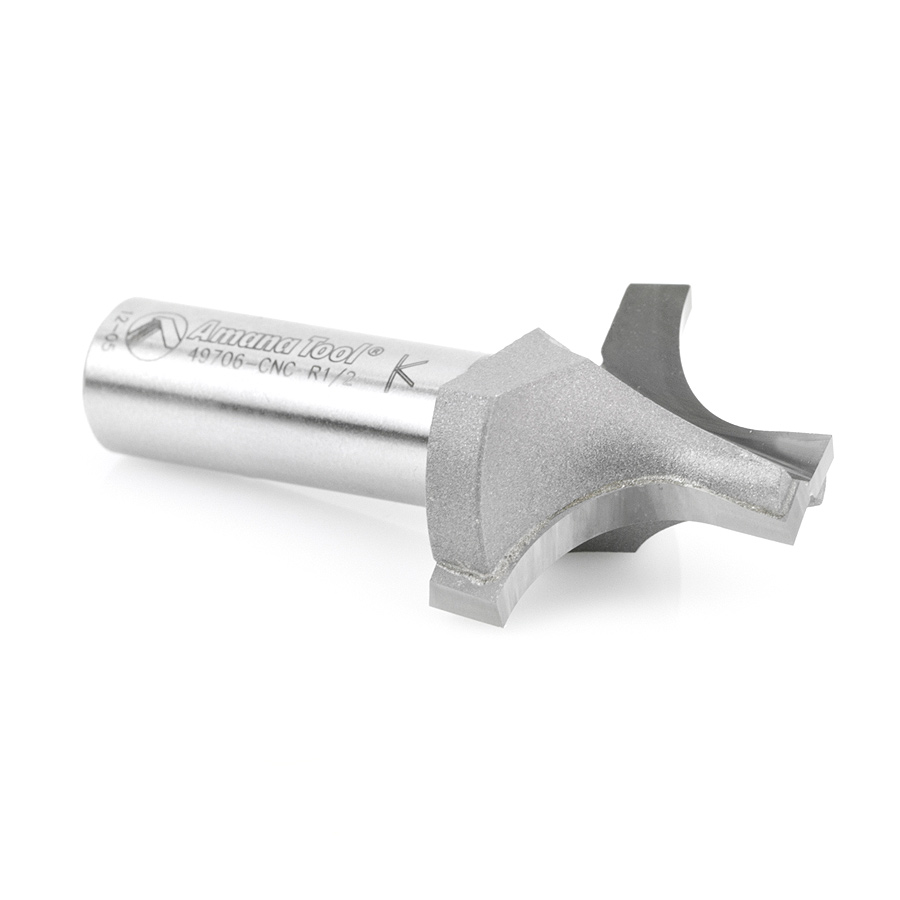

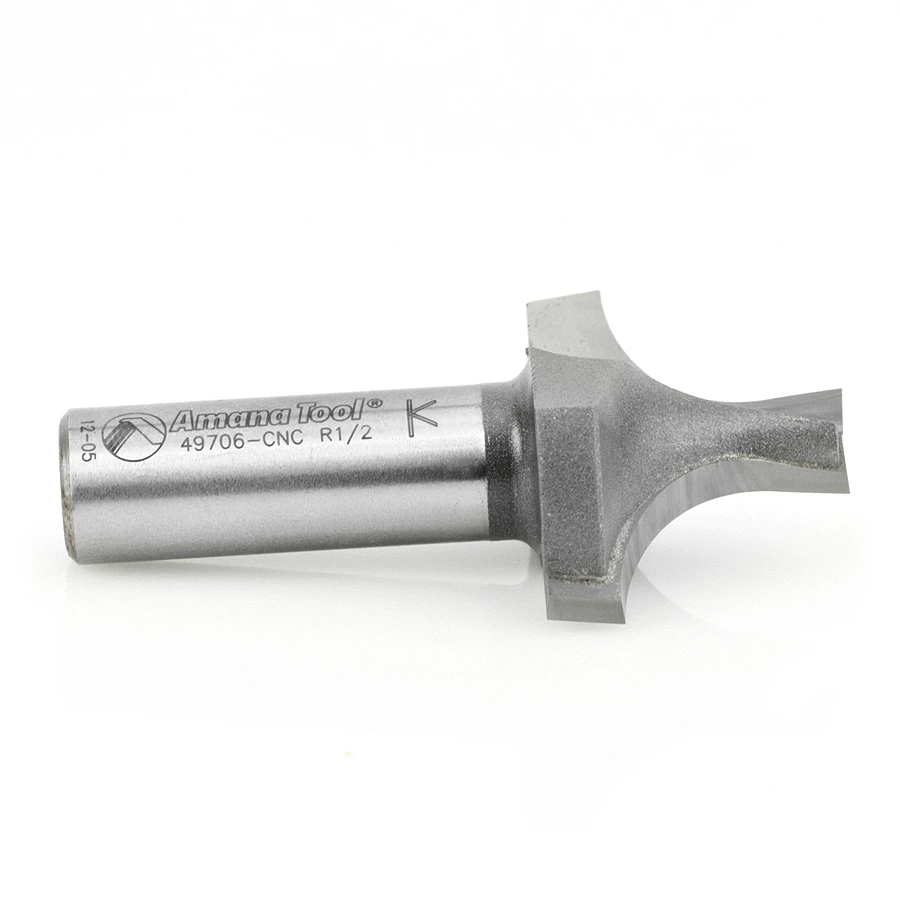

49706-CNC Carbide Tipped Plunge Round Over 1/2 Radius x 1-3/8 Dia x 1 Inch x 1/2 Shank
$100.44
Usually ships on the 2nd business day from order date.

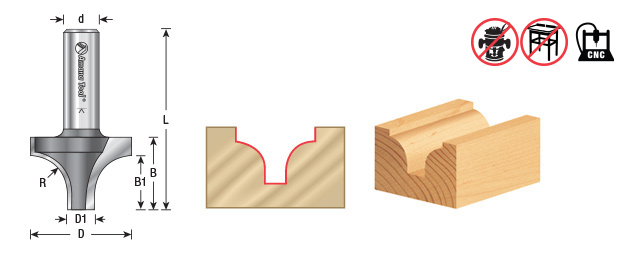

| Diameter (D) | 1-3/8 |
|---|---|
| D1 | 23/64 |
| Radius (R) | 1/2 |
| Cutting Height (B) | 1 |
| B1 | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Flutes | 2 |
Description
This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide.
Maximum RPM 14,000.
Warning: This tool has an open flute design (not anti-kickback) and is intended for high feed-rate CNC machine use only. Do not use in portable routers.
Specifications
| Diameter (D) | 1-3/8 |
| D1 | 23/64 |
| Radius (R) | 1/2 |
| Cutting Height (B) | 1 |
| B1 | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Flutes | 2 |
