Electro-Blu™ Carbide Tipped Prestige™ Aluminum and Non-Ferrous Metals 10 Inch Dia x 80T TCG, -6 Deg, 5/8 Bore, Non-Stick Coated

$210.23Flag Image
Usually ships on the 2nd business day from order date.
D Diameter 10 (250mm)
Teeth 80
D Bore 5/8
Tooth Grind TCG
Hook Angle -6°
Kerf B .126 (3.2mm)
Plate C .102 (2.6mm)
UPC: 738685801512.0 SKU: 510801C Categories: ,
You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material). Never attempt to cut ferrous metals with these blades. Warning: Clamp down the workpiece. For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Benefits of Electro-Blu™ Coating

Reduces resin accumulation and heat build-up Tips stay sharper longer resulting in extended blade life Applied by using an electrostatic bonding process

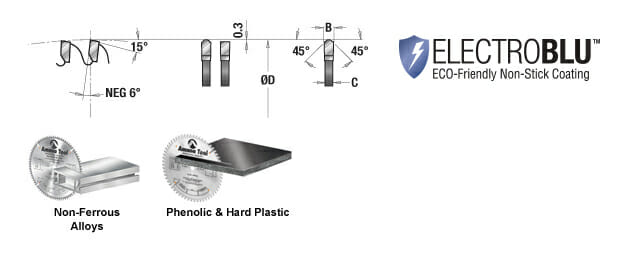

Specifications

(D) Diameter 10 (250mm)
Teeth 80
(d) Bore 5/8
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (C) .102 (2.6mm)
