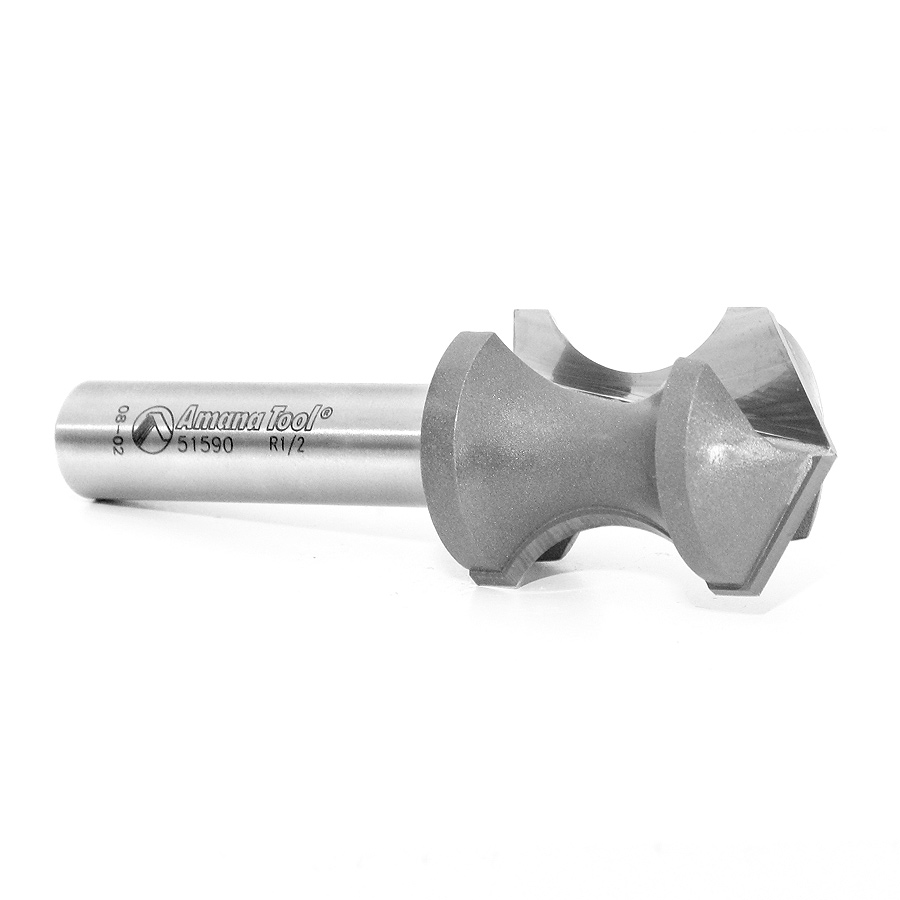

51590 Carbide Tipped Hand Grip Plunge 1/2 Radius x 45 Degree x 1-1/8 Dia x 1-9/16 x 1/2 Inch Shank
$105.53
Usually ships on the 2nd business day from order date.

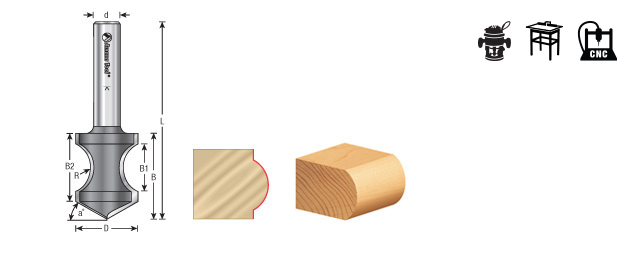

(a°) Angle | 45º |
---|---|
Diameter (D) | 1-1/8 |
Radius (R) | 1/2 |
(B) Cutting Height | 1-9/16 |
B1 | 7/8 |
B2 | 1-1/4 |
Shank (d) | 1/2 |
Overall Length (L) | 3-5/8 |
Flutes | 2 |
Description
Intended for forming and edging internal hand-helds and cutouts in a single pass, this bit will also cut a soft bullnose on any exposed edge. Use in a CNC or other automatic router. Plunge cuts on router table are not recommended.
Specifications
Angle (a°) | 45° |
Diameter (D) | 1-1/8 |
Radius (R) | 1/2 |
Cutting Height (B) | 1-9/16 |
B1 | 7/8 |
B2 | 1-1/4 |
Shank (d) | 1/2 |
Overall Length (L) | 3-5/8 |
Flutes | 2 |
