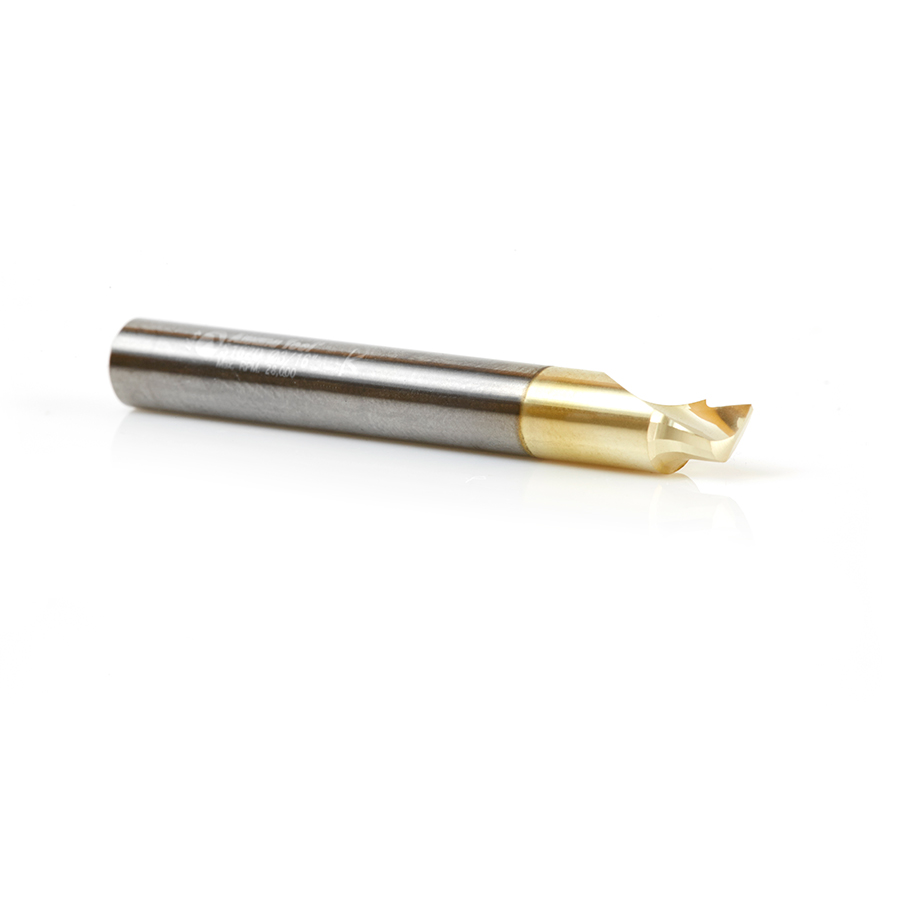

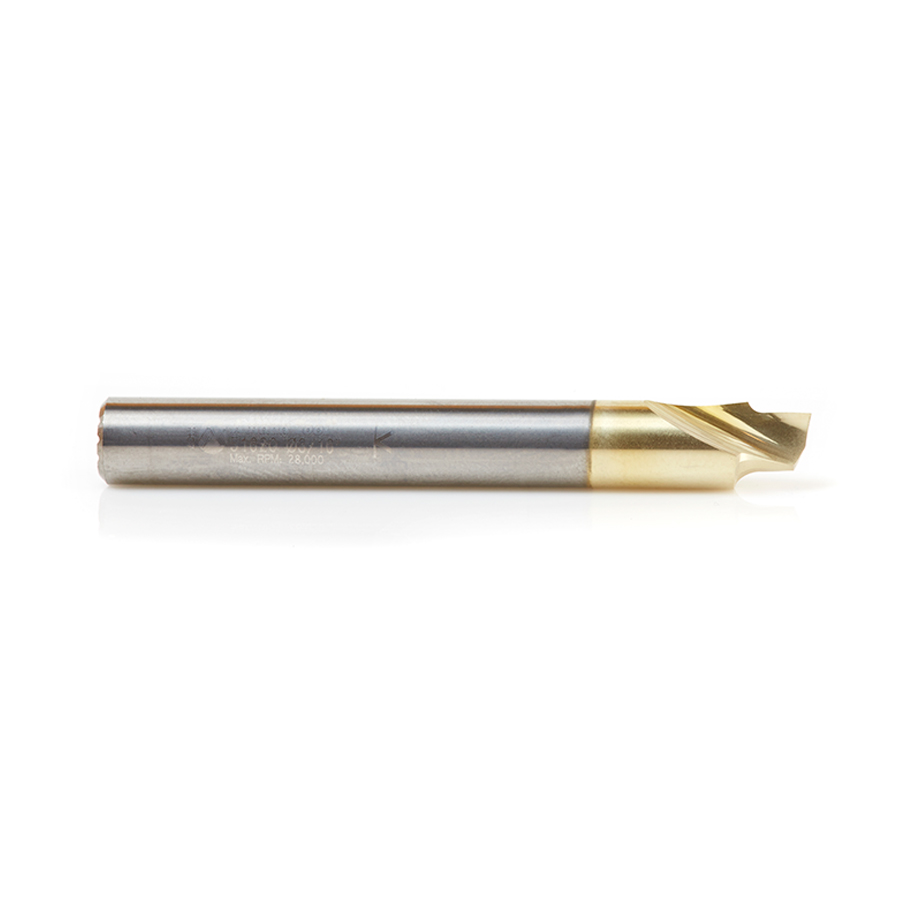

51620 Solid Carbide Aluminum Cutting 3/64 Radius Edge x 3/16 Dia x 3/32 x 1/4 Shank ZrN Coated Up-Cut End Mill
$95.08
Usually ships on the 2nd business day from order date.

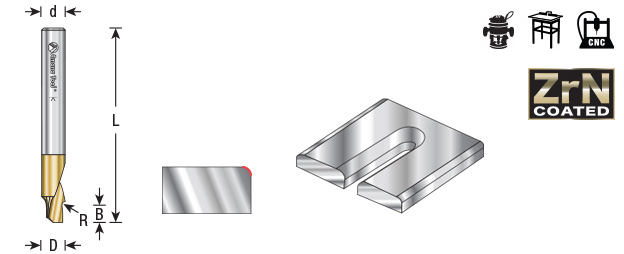

| Direction | Up-Cut |
|---|---|
| Diameter-d | 3/16 |
| Radius-r | 3/64 |
| B-cutting-height | 3/32 |
| Shank-d | 1/4 |
| Overall-length-l | 2 |
| Type | Radius |
| Flutes | 1 |
Description
Designed to route a finished appearance into aluminum, brass, copper & non-ferrous metals in one pass, these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 3/32” convex radius, you can maximize your efficiency by routing one single pass.
Excellent for cutting:
- Aluminum
- Aluminum 5052
- Brass
- Copper
- Fomex® with Aluminum Face
- Gold
- Non-Ferrous Metals
- Silver
- Acrylonitrile-Butadiene-Styrene (ABS)
- Lexan™
The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.
Specifications
| Direction | Up-Cut |
| Diameter (D) | 3/16 |
| Radius (R) | 3/64 |
| (B) Cutting Height | 3/32 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Type | Radius |
| Flutes | 1 |
