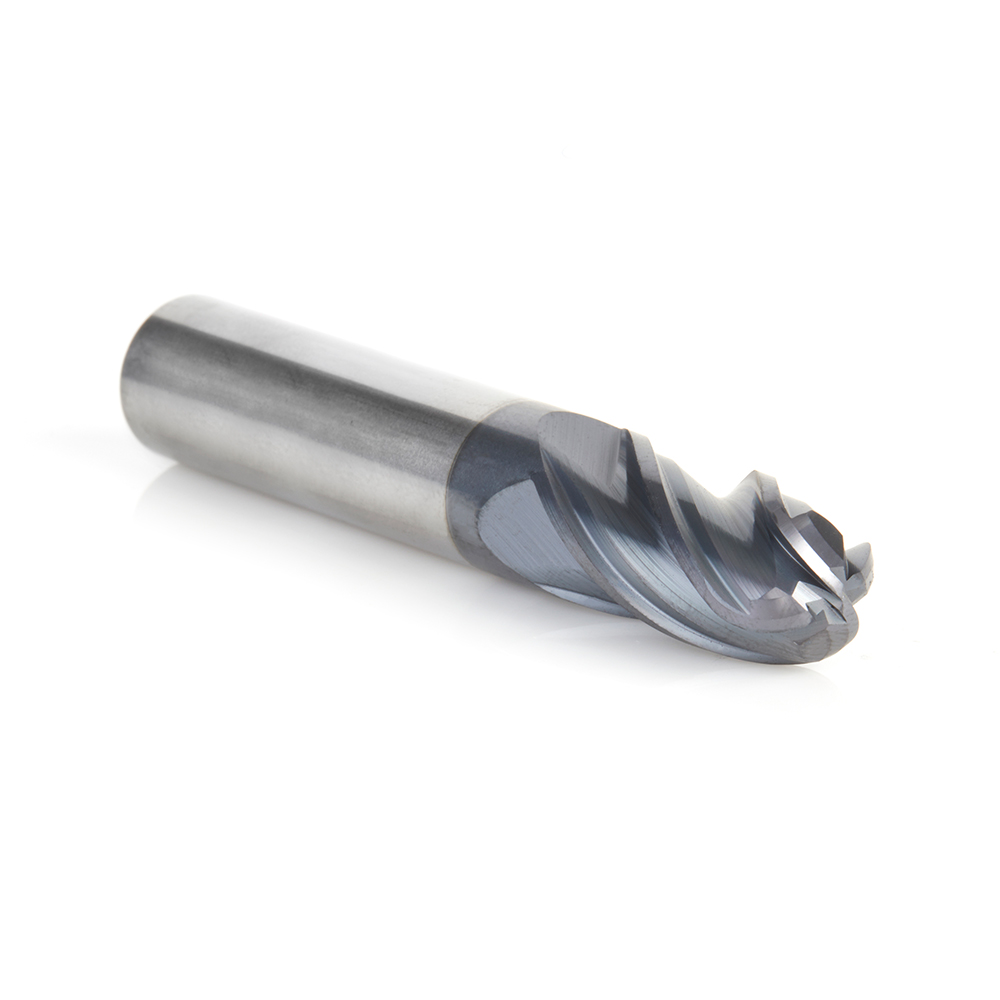

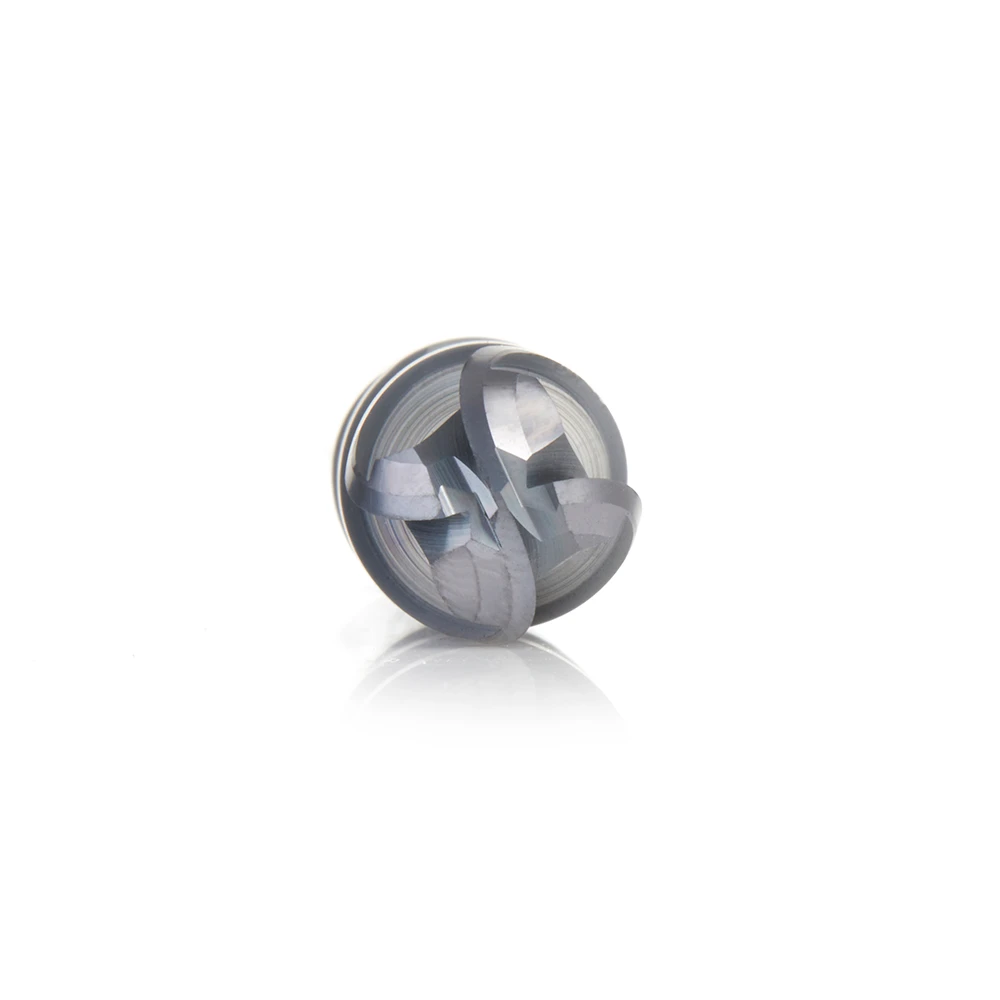

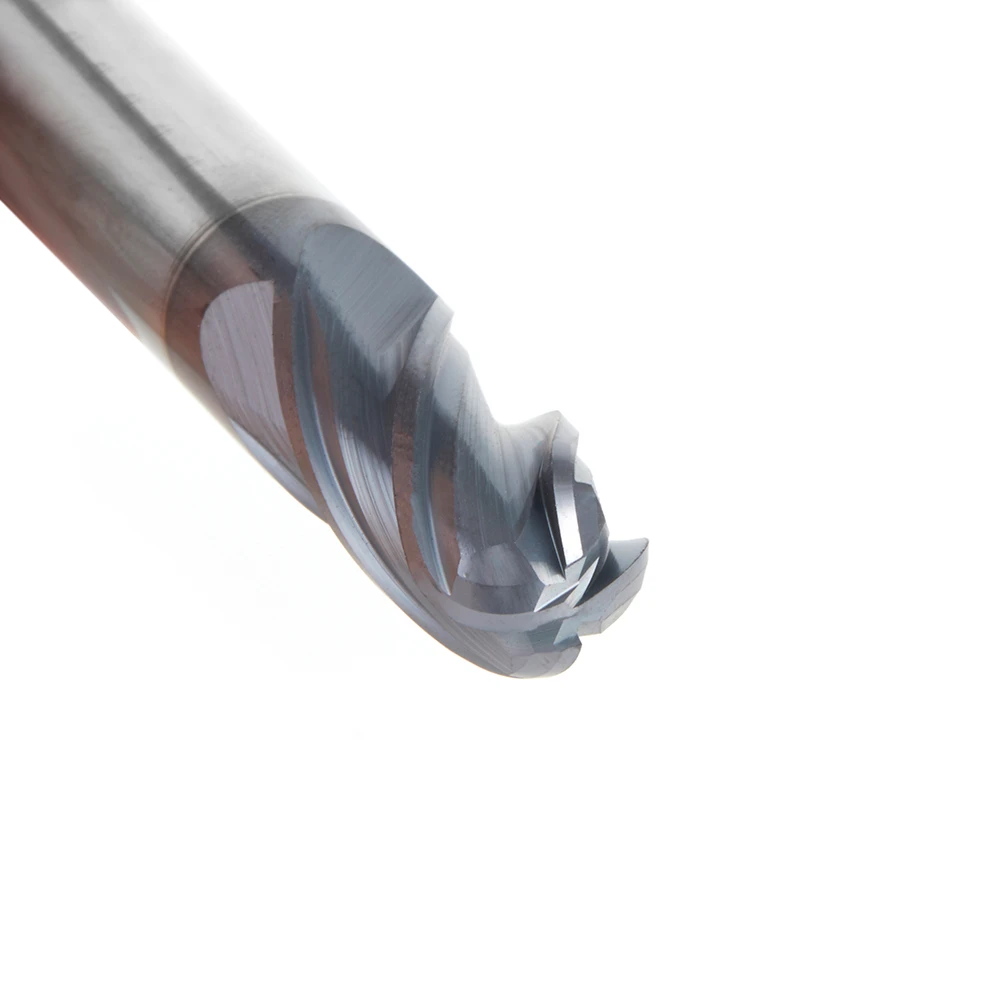

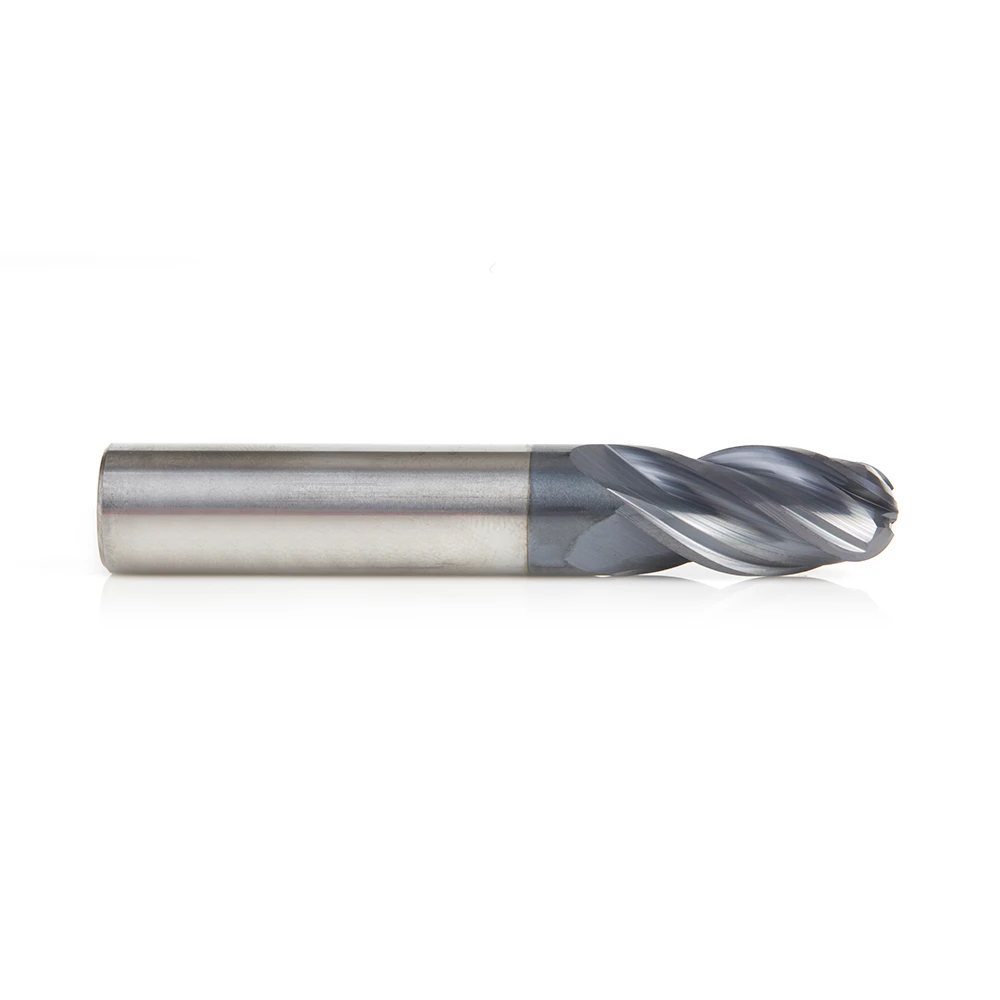

51804 High Performance Solid Carbide CNC Steel, Stainless Steel & Composite Cutting Variable Helix Spiral Ball Nose with AlTiN Coating 4-Flute x 1/2 Dia x 1 x 1/2 Shank x 3 Inch Long Up-Cut Router Bit/End Mill


Usually ships on the 2nd business day from order date.
Diameter (D) 1/2
Radius (R) 1/4
(B) Cutting Height 1
Shank (d) 1/2
Overall Length (L) 3
Type Ball Nose
Flutes 4
You will receive a courtesy discount of 5% if your cart exceeds $100 :)


Amana Tool’s variable helix tools are the superstars of carbide end mills for professionals and hobbyists alike. The variable helix eliminates harmonic chatter, so critical when surface finishes part dimension tolerances and tool life are of the utmost importance. Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity either in terms of speed or longevity with or without coolant.

They are outstanding tools for peripheral milling and can take aggressive cuts along the full length of the overall flute length with no issues. They last much longer than general purpose end mills partly because they are coated partly because they dampen vibration which tends to break a sharp cutting edge down very quickly. For use with manual and automatic milling machines, as well as the most sophisticated CNC machines.
Variable helix design for faster speeds and feeds. Quiet operation & better finishes.

Excellent for cutting:

  • Stainless Steel
  • Steel
  • Cast Iron
  • Cermet*
  • Composites
  • Low Carbon Steel
  • Magnesium
  • Metal Composite Material (MCM)
  • Plastics
  • Super Alloys
  • Titanium (up to 40HRc Hardness)

*Cermets are composites in which ceramic materials and metals join together.

AlTiN coating has many benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life

WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.


(D) Diameter 1/2
(R) Radius 1/4
(B) Cutting Height 1
(d) Shank 1/2
Overall Length (L) 3
Type Ball Nose
Flutes 4
