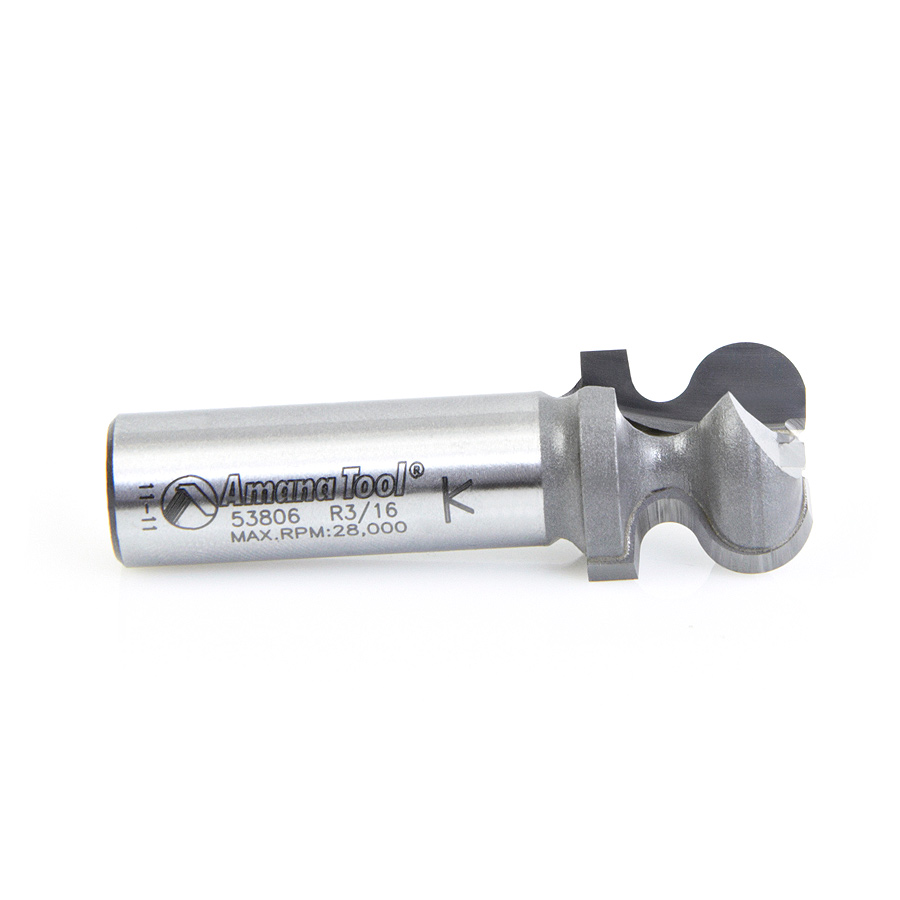

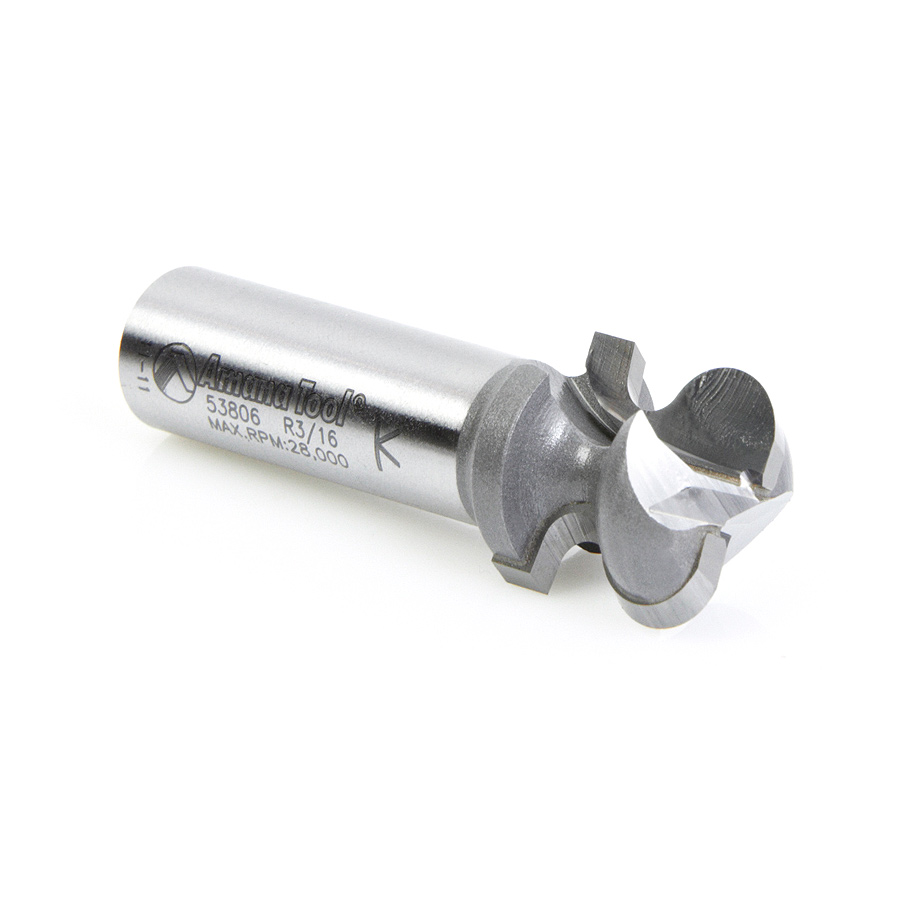

53806 Carbide Tipped Finger Grip 3/32 x 3/16 Radius x 3/4 Dia x 3/4 x 1/2 Inch Shank
$107.63
Usually ships on the 2nd business day from order date.
Diameter (D) | 3/4 |
---|---|
D1 | 25/64 |
Radius (R) | 3/32 |
(B) Cutting Height | 3/4 |
B1 | 35/64 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/4 |
R1 | 3/16 |
Flutes | 2 |
Description
Produce clean, modern chests and cabinets uninterrupted by hardware pulls and knobs by integrating the pulls into the doors, drawers and lids. These one-pass cutters offer many appearance and ergonomic options, providing positive grips and softened, easy-on-the-fingers edges. All bits can be used in CNC and table-mounted routers. Larger diameter cutters will work in edge-guide or template-guide equipped handheld routers.
Specifications
Diameter (D) | 3/4 |
D1 | 25/64 |
Radius (R) | 3/32 |
Cutting Height (B) | 3/4 |
B1 | 35/64 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/4 |
R1 | 3/16 |
Flutes | 2 |
