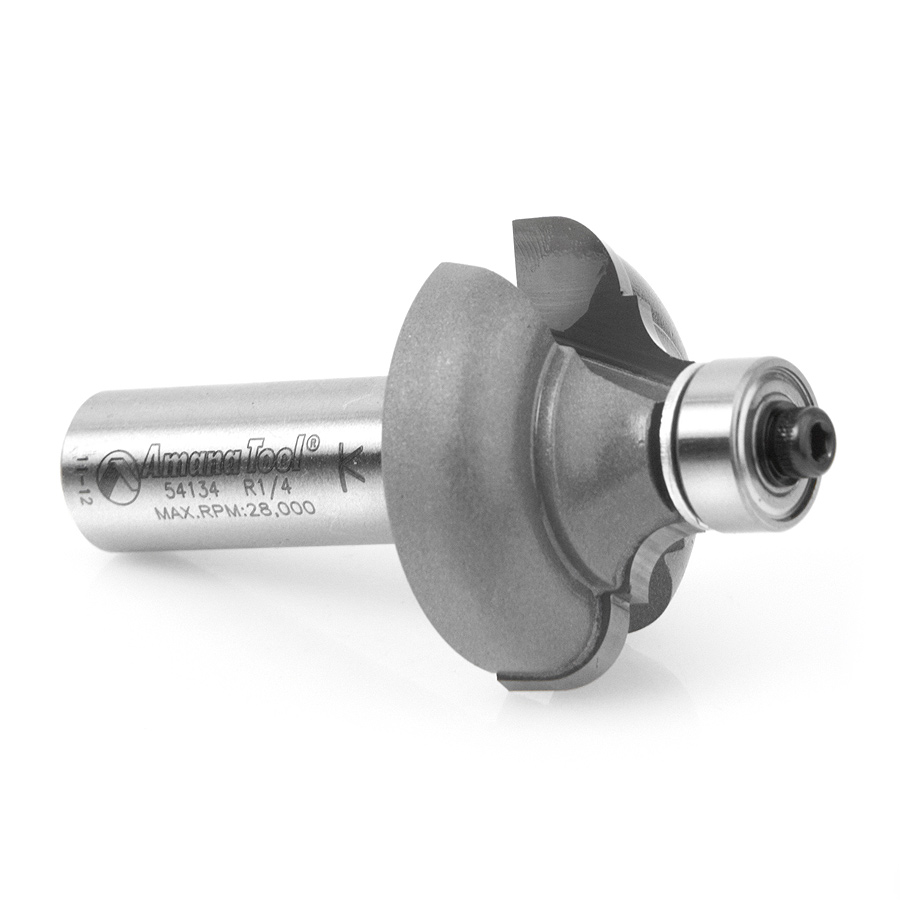

54134 Carbide Tipped Classical Cove & Bead 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/2 Inch Shank

$103.38

Diameter (D) 1-3/8
Radius (R) 1/4
(B) Cutting Height 11/16
Shank (d) 1/2
Overall Length (L) 2-9/16
R1 3/16
Flutes 2

Description

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8″ pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Specifications

Diameter (D) 1-3/8
Radius (R) 1/4
Cutting Height (B) 11/16
Shank (d) 1/2
Overall Length (L) 2-9/16
R1 3/16
Flutes 2
