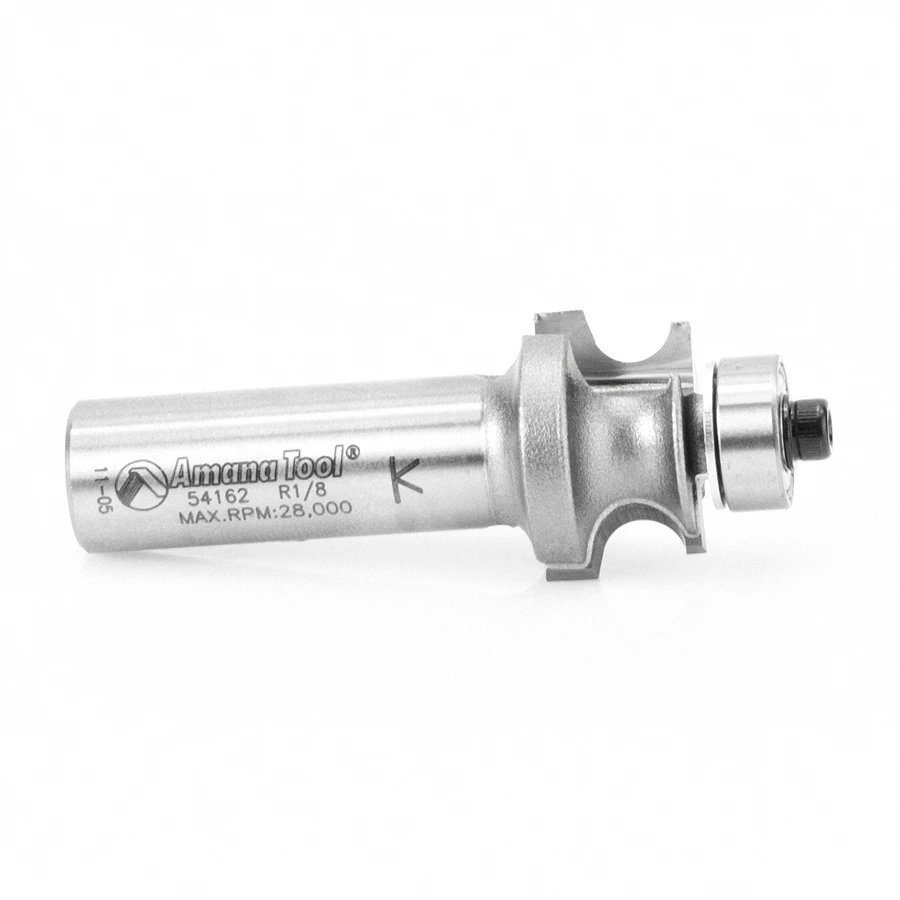

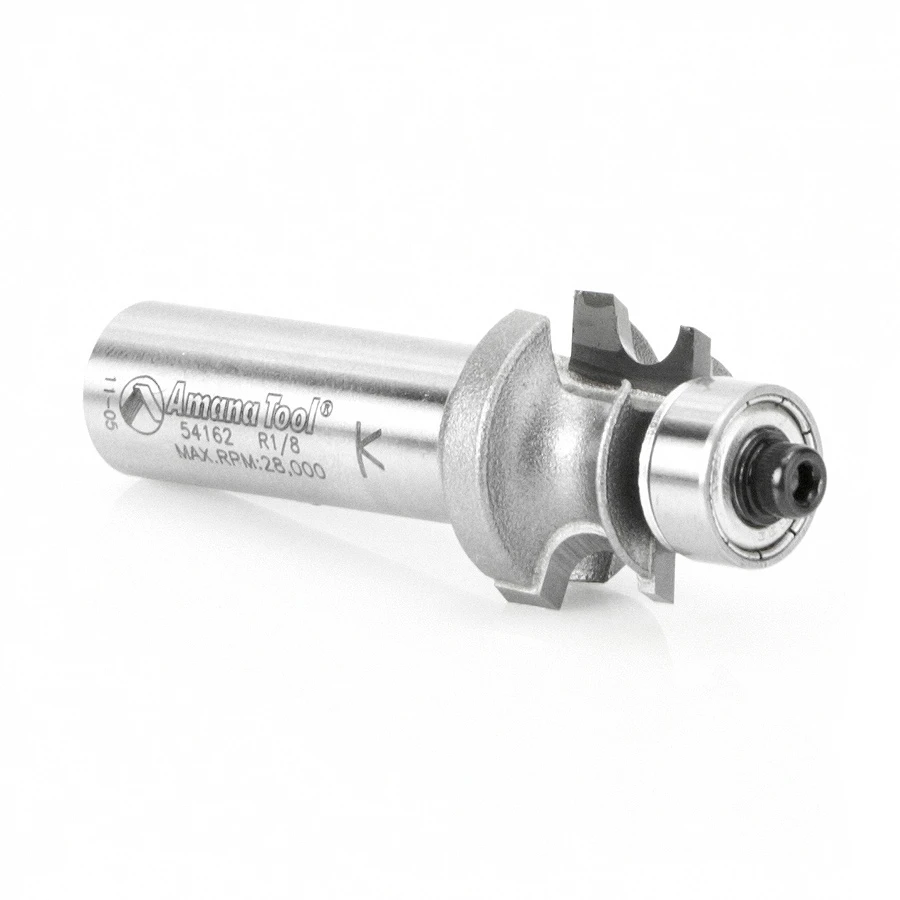

54162 Carbide Tipped Corner Round 1/8 Radius x 7/8 Dia x 9/16 x 1/2 Inch Shank
$79.32
Usually ships on the 2nd business day from order date.
Diameter (D) | 7/8 |
---|---|
D1 | 3/4 |
Radius (R) | 1/8 |
(B) Cutting Height | 9/16 |
B1 | 9/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/2 |
Replacement Bearing | 47706 |
Flutes | 2 |
Description
Produce three slightly different profiles using this bit – an edge bead with or without a fillet and a full corner bead – by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.
Specifications
Diameter (D) | 7/8 |
D1 | 3/4 |
Radius (R) | 1/8 |
Cutting Height (B) | 9/16 |
B1 | 9/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/2 |
Replacement Bearing | 47706 |
Flutes | 2 |
