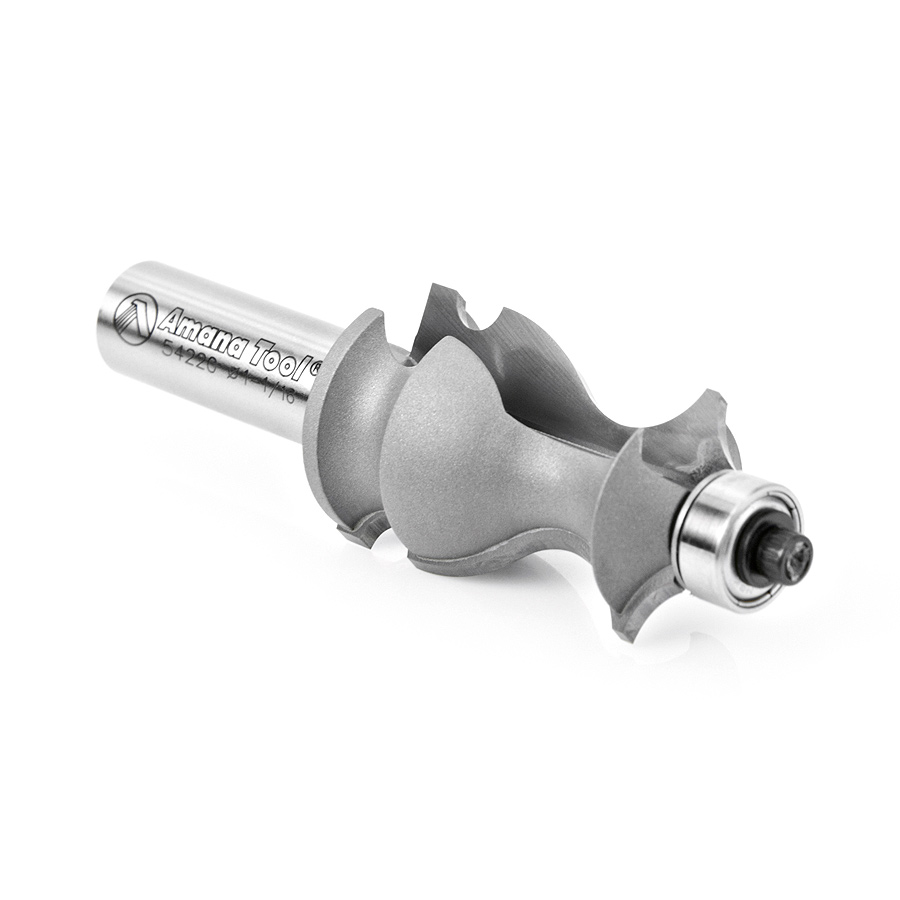

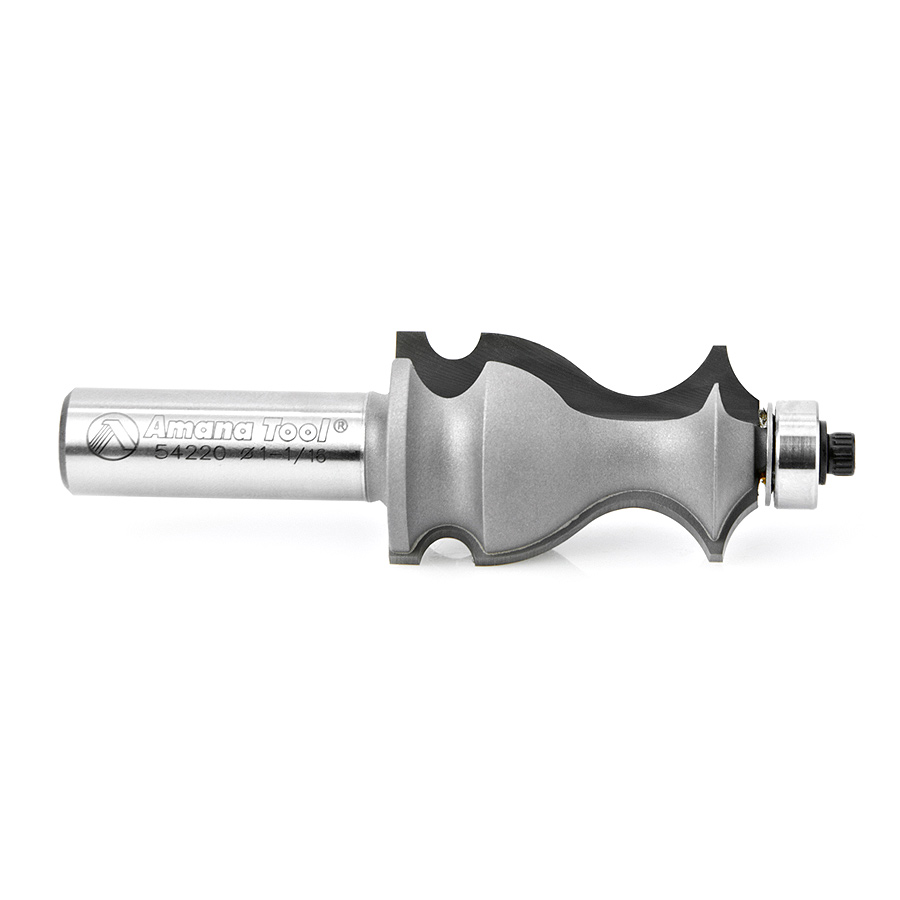

54220 Carbide Tipped Classical Architectural Molding 1/8 x 7/8 x 3/8 Radius x 1 Inch Dia x 1-11/16 x 1/2 Shank
$87.47
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1 |
|---|---|
| Radius (R) | 1/8 |
| Cutting Height (B) | 1-11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/4 |
| Type | #4 |
| R2 | 3/8 |
| Replacement Bearing | 47706 |
| R1 | 7/8 |
| Flutes | 2 |
Description
These bits are designed for routing architectural and furniture moldings and trim. Almost all have the profile laid out vertically, reducing the diameter of the bit. These bits should be used in a 2+ horsepower, table-mounted router, and many should be run at reduced speed. Although most have ball-bearing guides, guiding the cuts with the fence is recommended.
Maximum RPM 12,000.
Specifications
| Diameter (D) | 1 |
| Radius (R) | 1/8 |
| Cutting Height (B) | 1-11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/4 |
| Type | #4 |
| R2 | 3/8 |
| Replacement Bearing | 47706 |
| R1 | 7/8 |
| Flutes | 2 |
