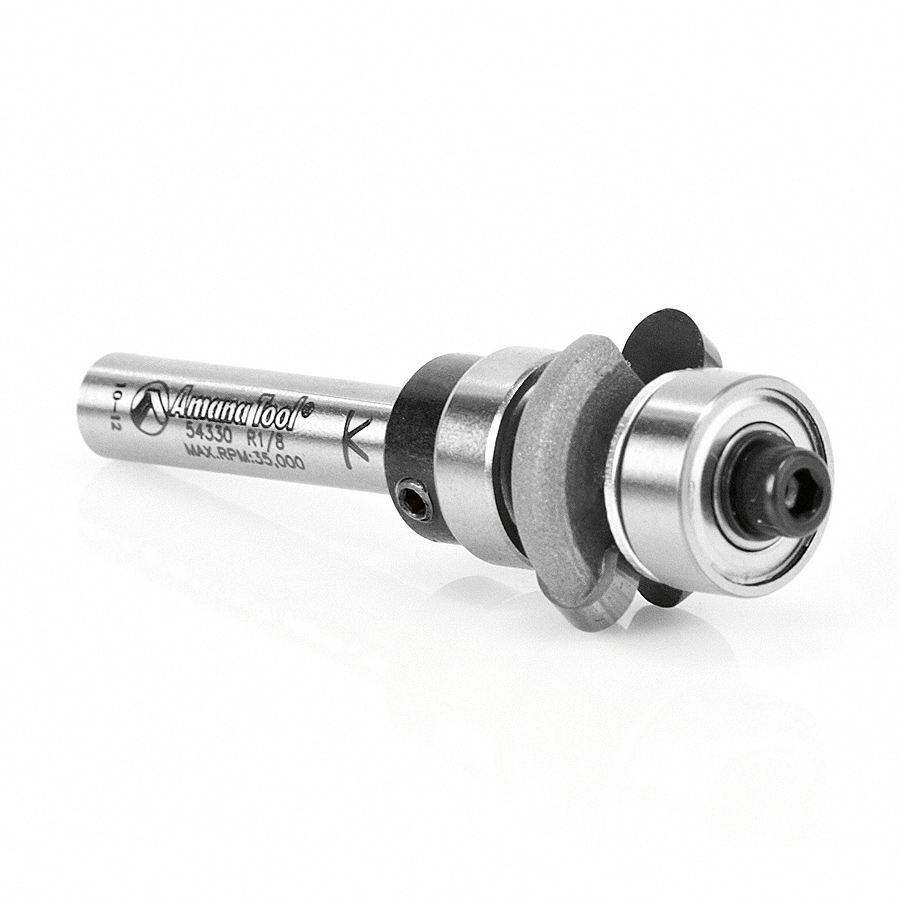

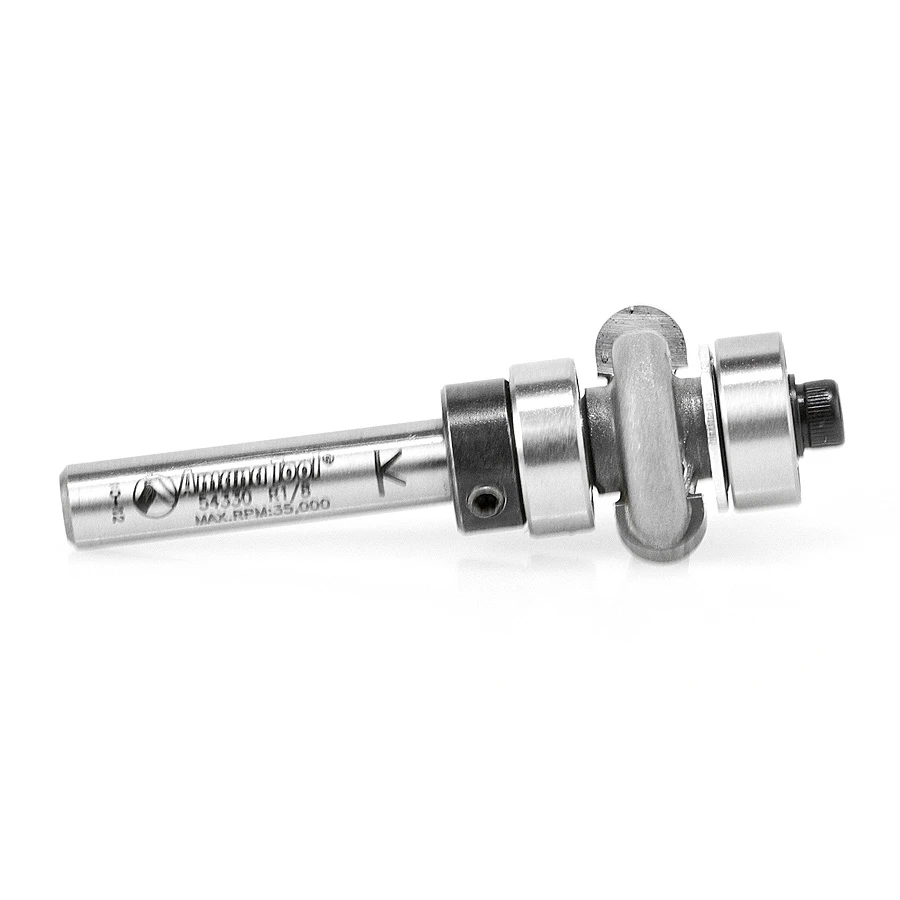

54330 Carbide Tipped Edge Fluting Assembly 1/8 Radius x 3/4 Dia x 1/4 x 1/4 Inch Shank
$74.82
Usually ships on the 2nd business day from order date.
Diameter (D) | 3/4 |
---|---|
Radius (R) | 1/8 |
(B) Cutting Height | 1/4 |
Shank (d) | 1/4 |
Overall Length (L) | 2-1/4 |
Replacement Collar | 47724 |
Replacement Bearing | 47701,47706 |
Flutes | 2 |
C | 1/8 |
Description
Cut individual flutes – shallow, small-radius grooves – in narrow edges without having to balance a router on that edge. The bit cuts at right angles to the bit axis. Flute depth is controlled by the pilot bearing, the flute’s position by the router’s bit-height setting. Use in a handheld or table-mounted router.
Specifications
Diameter (D) | 3/4 |
Radius (R) | 1/8 |
Cutting Height (B) | 1/4 |
Shank (d) | 1/4 |
Overall Length (L) | 2-1/4 |
Replacement Collar | 47724 |
Replacement Bearing | 47701,47706 |
Flutes | 2 |
C | 1/8 |
