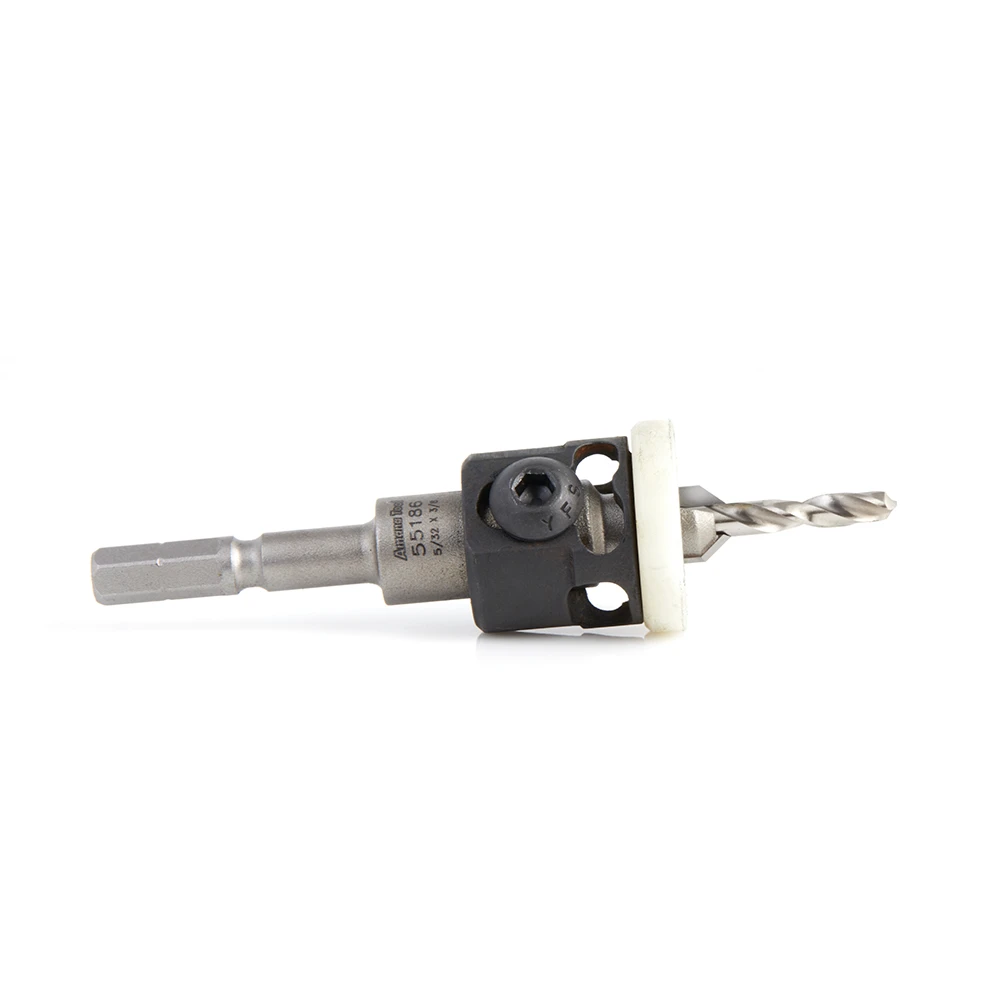

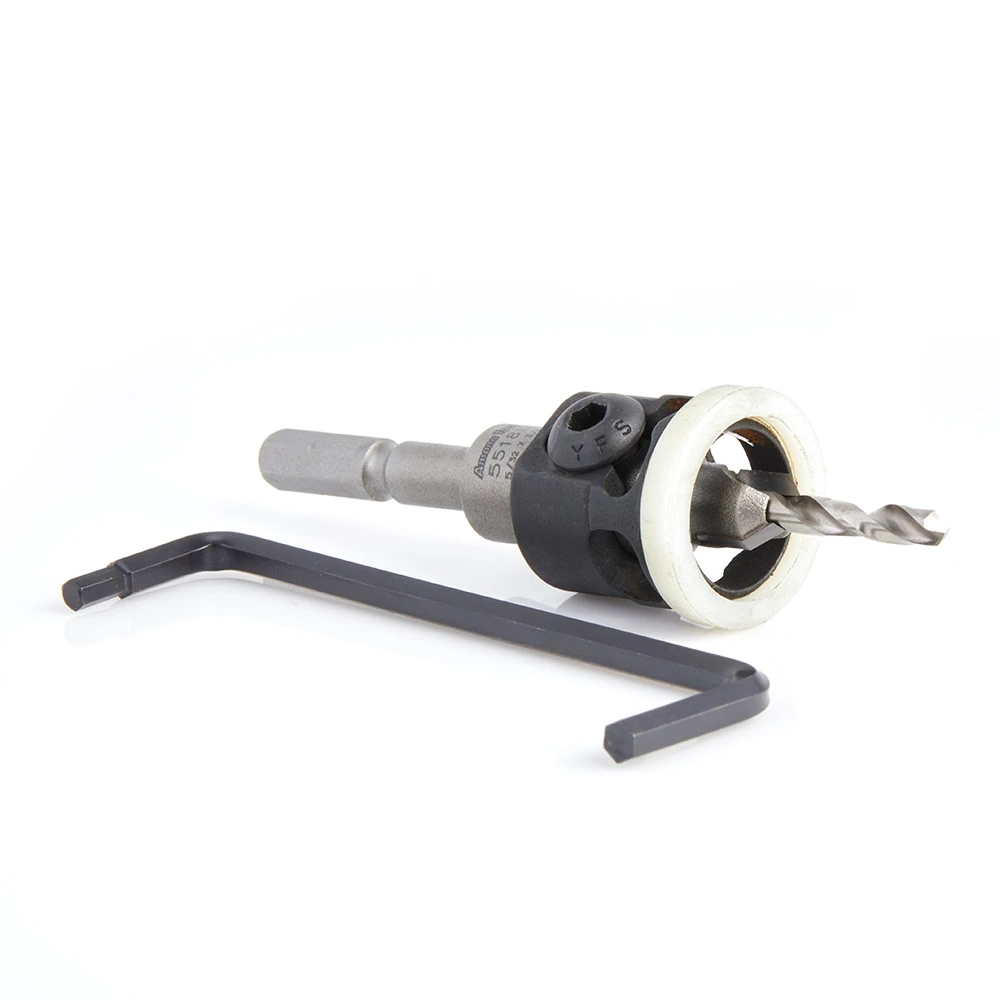

55186 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, For Festool® CENTROTEC® System 3/8 Dia x 5/32 Drill Dia
$71.23
| A-angle | 49° |
|---|---|
| B-cutting-height | 5/64-11/32 |
| Diameter-d | 3/8 |
| Shank-d | CENTROTEC® |
| Overall-length-l | 2-7/8 |
| Drill-din | 1897 |
| Wood-screw-size | 8 |
| D1 | 5/32 |
| Replacement-drill | 630-230 |
| Use-with-plug-cutter-optional | 55220 |
Description
A must have tool for every woodworker!
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Tools design with a unique shank with hex part and round part.
It fits Festool® CENTROTEC® drill machines or with any three-jaw keyless chuck system.
Low friction polymer collar. No surface scratches or burn marks!
These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.
2-Wing
Centrotec® shank
Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during

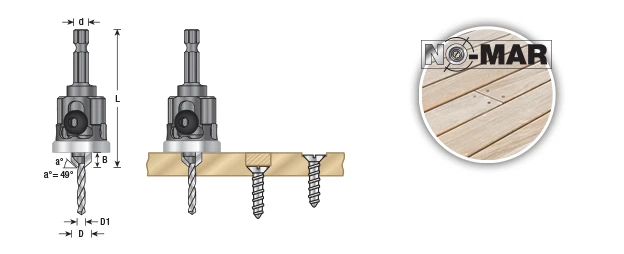

Specifications
| (a°) Angle | 49° |
| (B) Cutting Height | 5/64-11/32 |
| Diameter (D) | 3/8 |
| Shank (d) | CENTROTEC® |
| Overall Length (L) | 2-7/8 |
| Drill Din | 1897 |
| Wood Screw Size | 8 |
| D1 | 5/32 |
| Replacement Drill | 630-230 |
| Use with Plug Cutter (Optional) | 55220 |
