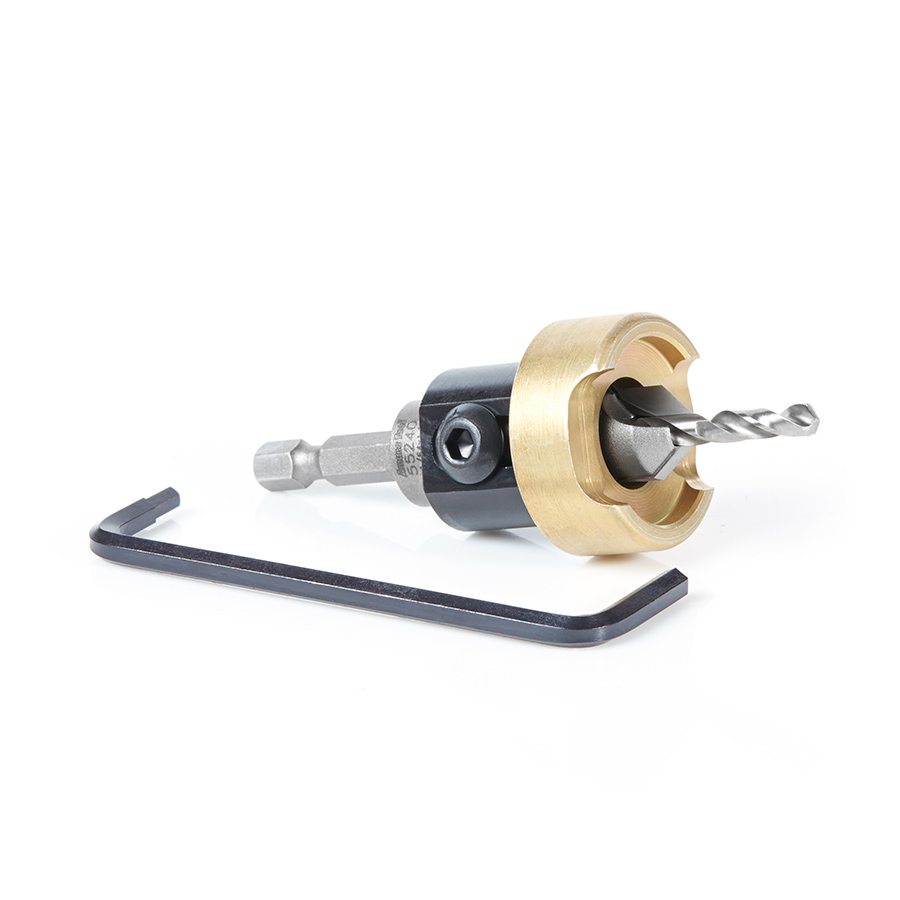

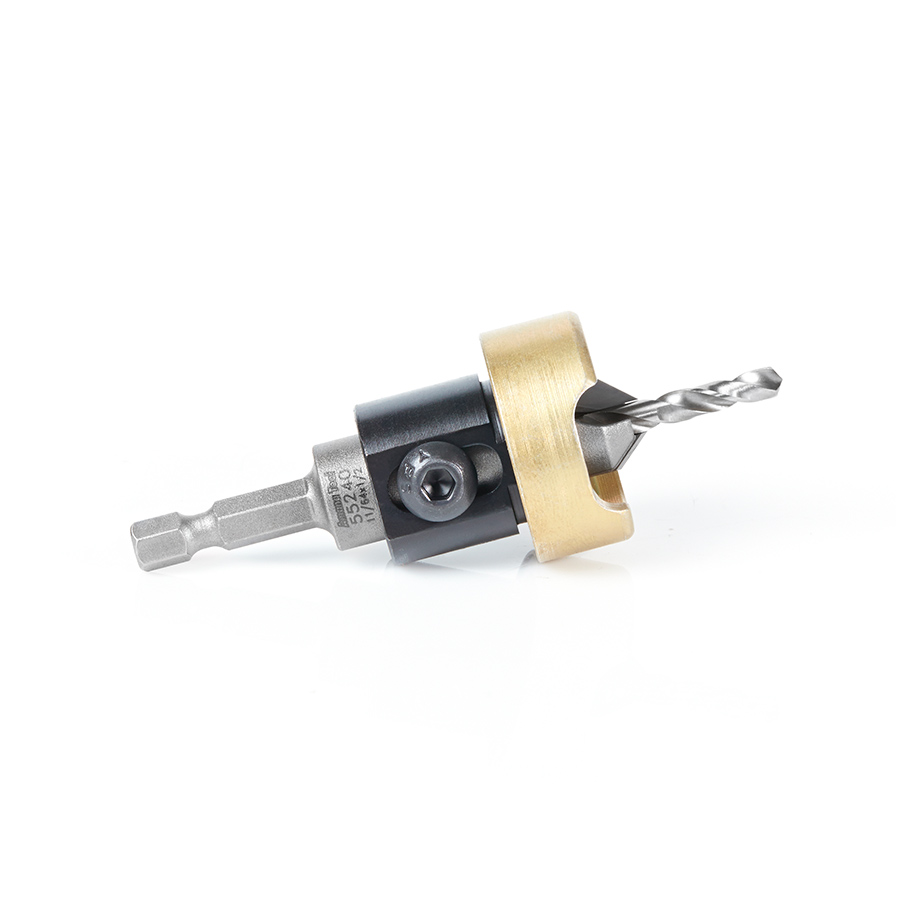

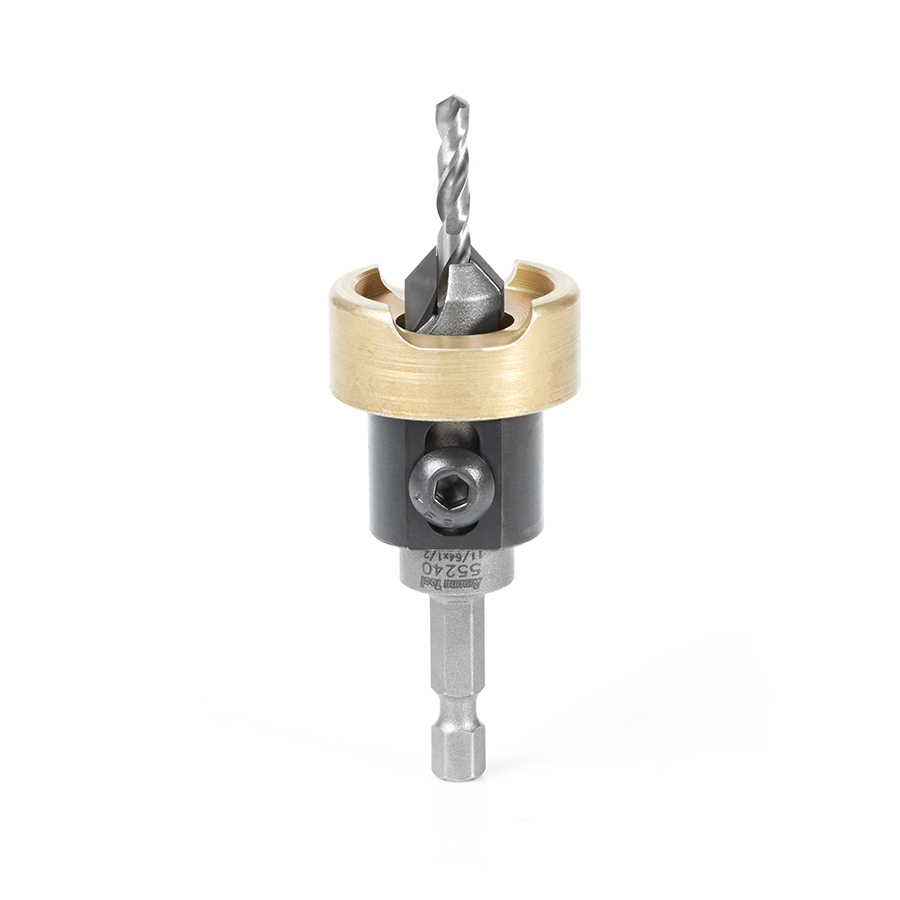

55240 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 1/2 Dia x 11/64 Drill Dia x 1/4 Inch Quick Release Hex Shank

$61.43

(a°) Angle 49°
(B) Cutting Height 3/64-3/8
Diameter (D) 1/2
Shank (d) 1/4
Overall Length (L) 2-3/4
Drill Din 1897
Wood Screw Size 8
D1 11/64
Replacement Drill 630-234
Replacement Countersink 55275
Use With Plug Cutter (Optional) 55222
SKU: #55240 Category:

Description

A must have tool for every woodworker!

Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).

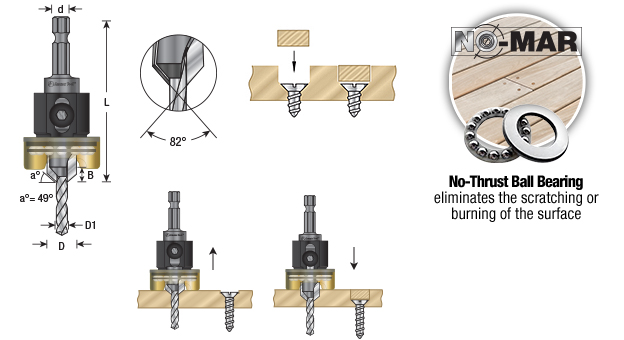

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.

It also has an open space to allow for chip evacuation.

The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.

Enables users to drill a pilot hole and tapered countersink in one step.

The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.

  • A must have tool for every woodworker
  • 2-Wing
  • Quick release 1/4″ hex shank
  • Slow spiral, HSS M2 fully ground drill bit included

Excellent for Drilling:

  • Natural Woods
  • Man-Made Boards
  • MDF
  • Chipboard
  • Plywood
  • Aluminum/Non-Ferrous
  • Aluminum Composite Material (ACM)
  • Composites
  • Composite Decking Materials

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Specifications

(a°) Angle 49°
(B) Cutting Height 3/64-3/8
(D) Diameter 1/2
Shank (d) 1/4
Overall Length (L) 2-3/4
Drill Din 1897
Wood Screw Size 8
D1 11/64
Replacement Drill 630-234
Replacement Countersink 55275
Use with Plug Cutter (Optional) 55222
