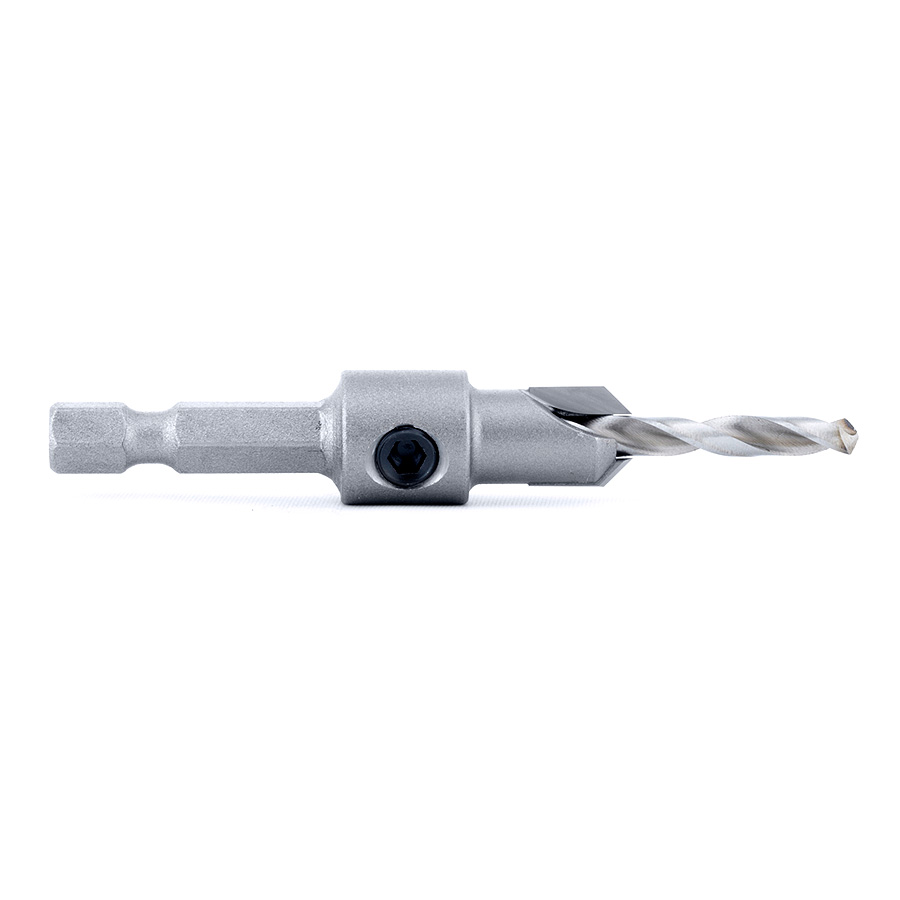

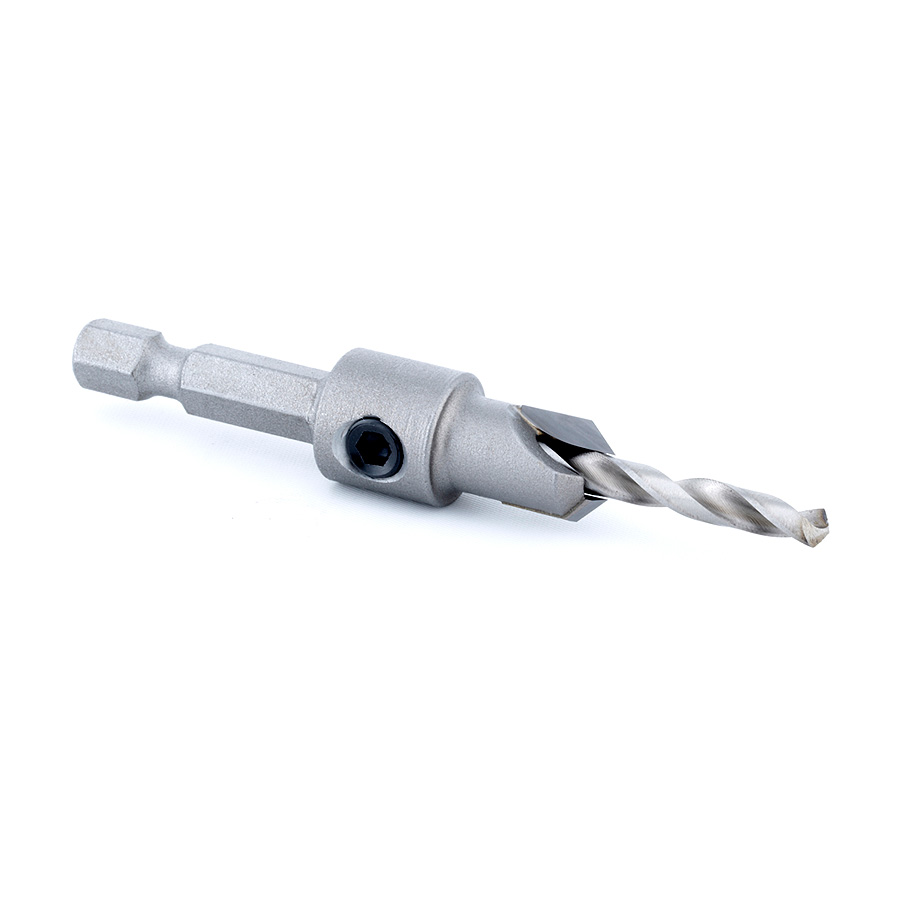

55269 Carbide Tipped 82 Degree Countersink 3/8 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #12-14
$49.08
Usually ships on the 2nd business day from order date.
| A-angle | 49° |
|---|---|
| Diameter-d | 3/8 |
| Shank-d | 1/4 |
| Overall-length-l | 2-1/8 |
| Wood-screw-size | #12-14 |
| D1 | 5/32 |
| Replacement-drill | 630-202 |
| Optional-depth-stop | 608-120 |
Description
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Specifications
| (a°) Angle | 49° |
| (D) Diameter | 3/8 |
| Shank (d) | 1/4 |
| Wood Screw Size | #12-14 |
| D1 | 5/32 |
| Replacement Drill | 630-202 |
| Optional Depth-Stop | 608-120 |
| Overall Length (L) | 2-1/8 |
