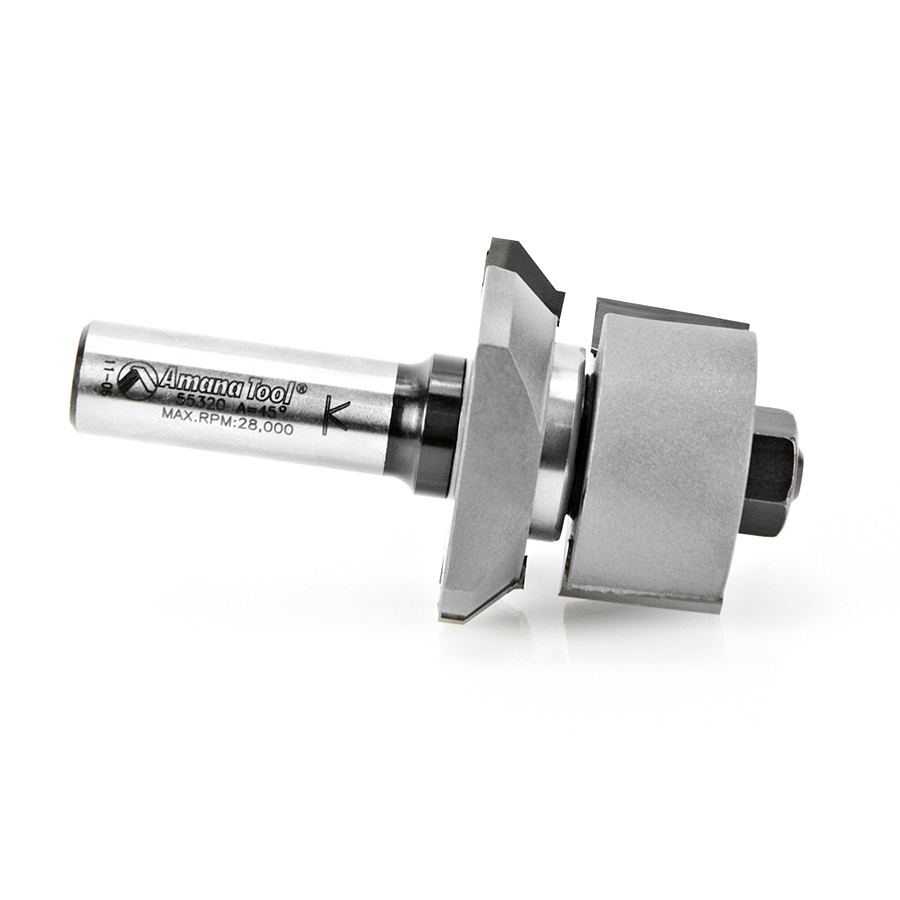

55320 Carbide Tipped V Paneling 45 Deg x 1-13/16 Dia x 1/2 to 1-3/16 x 1/2 Inch Shank with Ball Bearing Assembly
$307.44
Usually ships on the 2nd business day from order date.
(a°) Angle | 45° |
---|---|
Diameter (D) | 1-13/16 |
D1 | 1-5/16 |
(B) Cutting Height | 1/2 to 1-3/16 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/8 |
Type | V |
# Wings | 2 |
Description

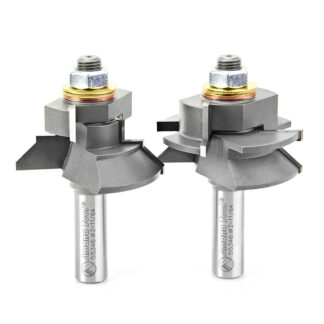

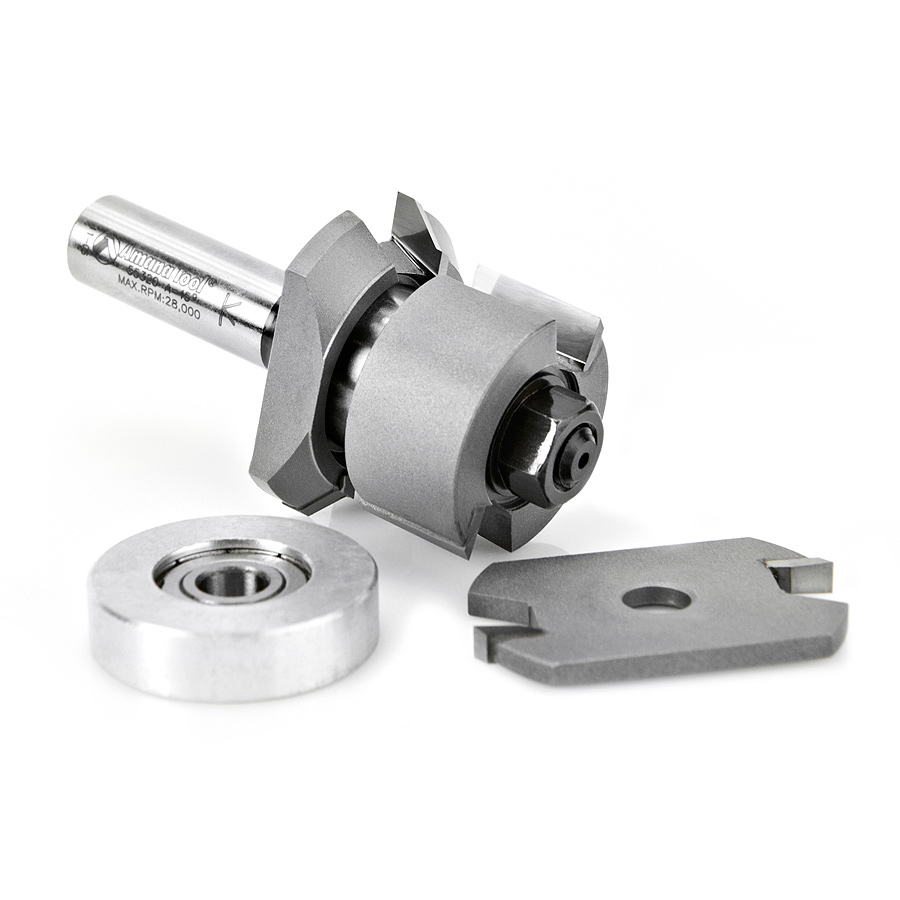

These assemblies are designed to cut tongue & groove joinery for solid wood paneling. Two patterns, a 1/4″ bead (#55330) or a 45° ‘V’ (#55320), are available individually or as a set. Each assembly comprises a profile cutter, a rabbet cutter and a groove cutter, two different-size bearings, a 1/2″ shank arbor, and a selection of washers, shims and spacers. Assemble the profile cutter, small bearing, and rabbet cutter as shown in the solid drawing to cut the tongue. To rout the groove, mount the groover and large bearing with the profiler, as shown in the ghosted drawing. The tool will work with stock from 1/2″ through 1″ thick.
Specifications
Angle (a°) | 45° |
Diameter (D) | 1-13/16 |
D1 | 1-5/16 |
Cutting Height (B) | 1/2 to 1-3/16 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/8 |
Type | V |
# Wings | 2 |
