55380 Carbide Tipped Classical Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank

$119.60

Usually ships on the 2nd business day from order date.

Diameter (D)	1-5/8
(B) Cutting Height	11/16
B1	7/8
Shank (d)	1/2
Overall Length (L)	3
Type	Classical
Flutes	2
C	3/8
# Wings	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

55380 Carbide Tipped Classical Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685953808 SKU: 55380 Categories: Router Bits, One Piece Stile & Rail Router Bits, Door Making Router Bits - Industrial Quality, Rattle-Free from Amana Tool

Share:

Description

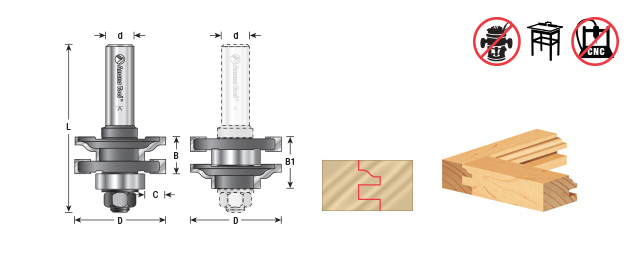

Cut both the stiles and rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, you get a perfect fit. The assembly order for each setup is shown in the drawing. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Note: Stile & Rail assemblies can be used on 5/8″ through 7/8″ material.
