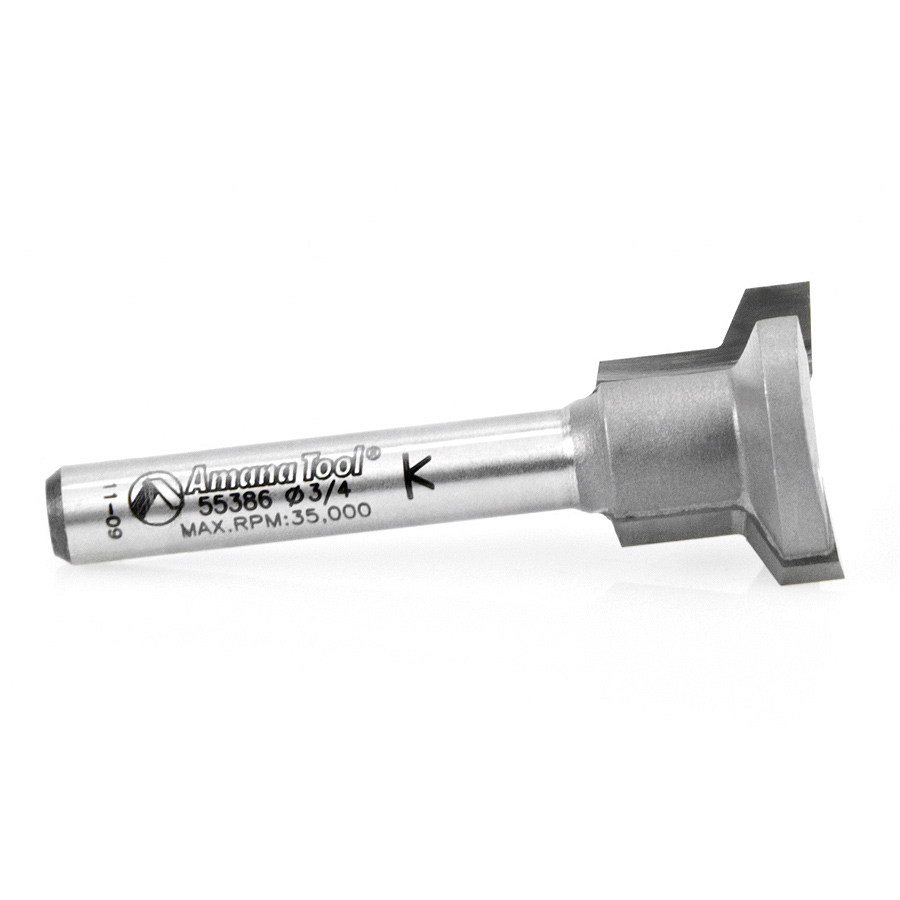

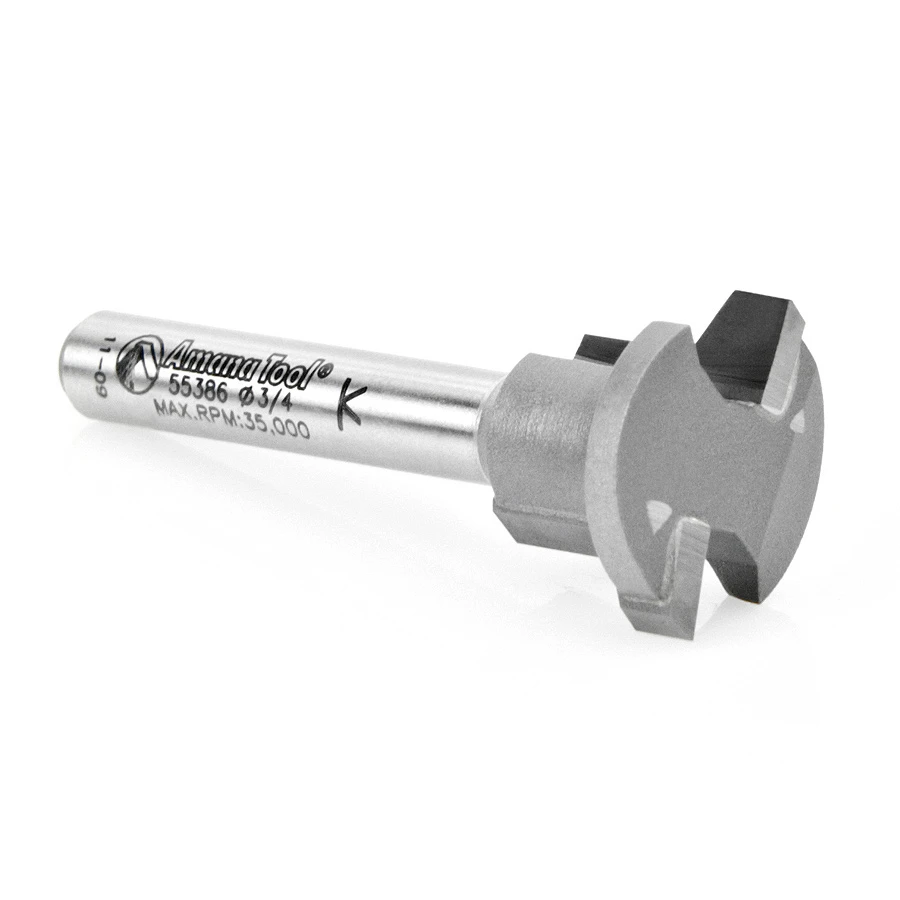

55386 Carbide Tipped Drawer Lock 3/4 Dia x 1/2 x 1/4 Inch Shank

$81.49Flag Image
Usually ships on the 2nd business day from order date.

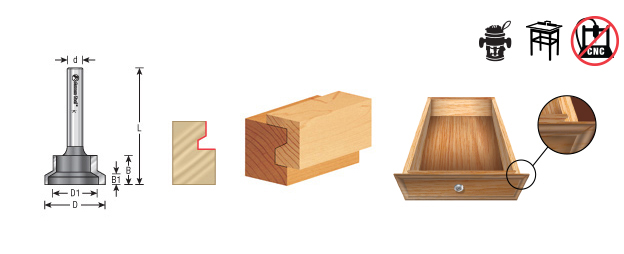

Diameter (D) 3/4
D1 1/2
(B) Cutting Height 1/2
B1 5/32
Shank (d) 1/4
Overall Length (L) 1-5/16
Flutes 2
UPC: 738685953860.0 SKU: 55386 Categories: , ,
You will receive a courtesy discount of 5% if your cart exceeds $100

Description

With this one bit, cut a lock joint that’s ideal for quick construction of strong drawer boxes. Use in a table-mounted router only. The same bit setting is used for both halves of the joint; adjust the fence position slightly to switch between sides and fronts/backs. The drawer front (or back) is laid flat on the tabletop and fed across the cutter. The side is braced vertically against the fence and fed across the cutter. You can use stock of any thickness and any composition and produce flush or lipped drawers. For best results use in a table-mounted router.

Click on the product information tab for more info.

Specifications

Diameter (D) 3/4
D1 1/2
Cutting Height (B) 1/2
B1 5/32
Shank (d) 1/4
Overall Length (L) 1-5/16
Flutes 2
