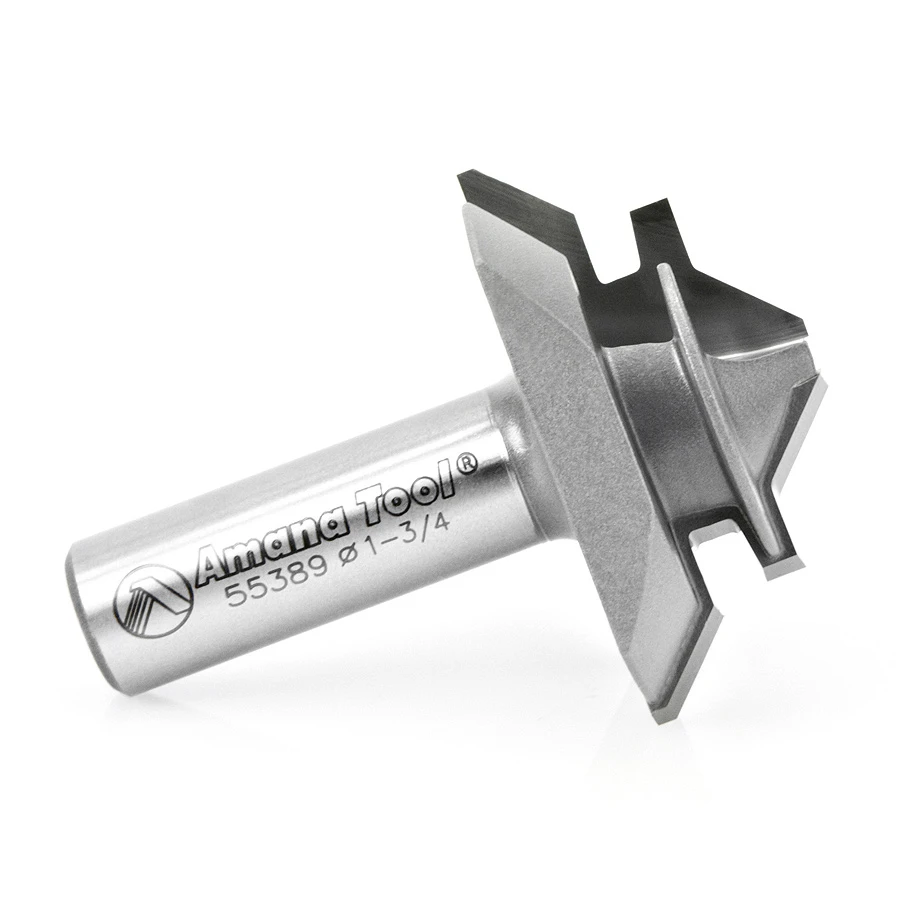

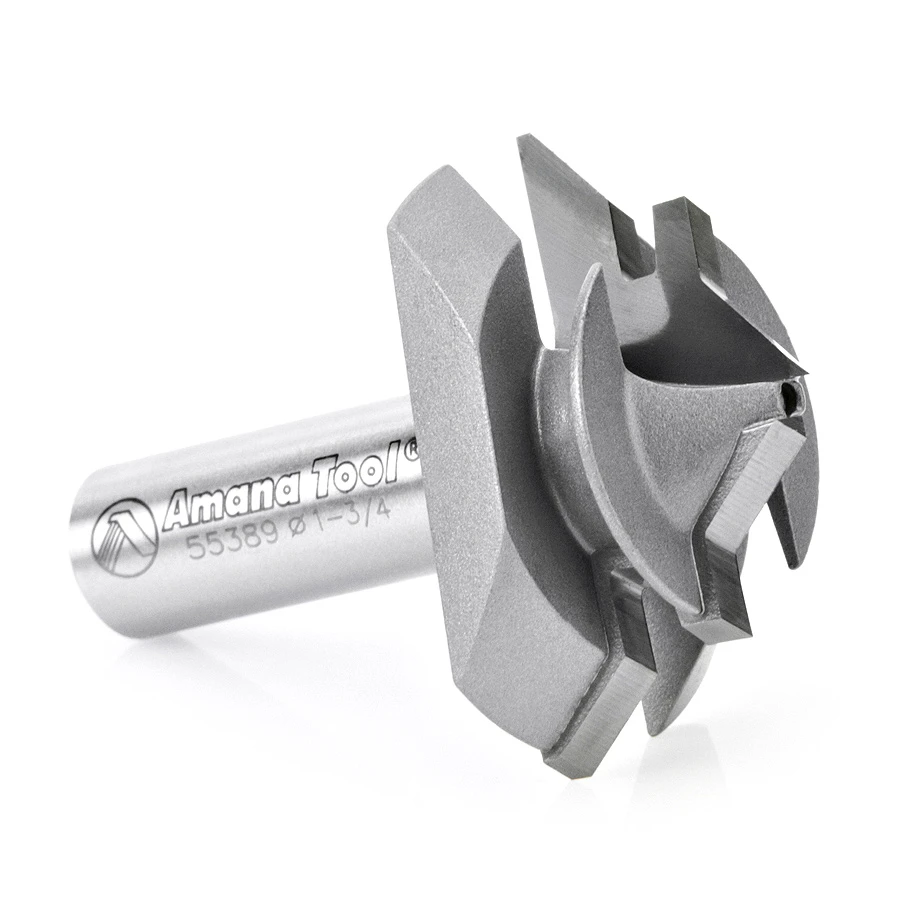

55389 Carbide Tipped Lock Miter 45 Deg x 1-3/4 Dia x 7/8 x 1/2 Inch Shank for 3/8 – 5/8 Material
$130.62
Usually ships on the 2nd business day from order date.
| (a°) Angle | 45º |
|---|---|
| Diameter (D) | 1-3/4 |
| D1 | 6.4mm |
| (B) Cutting Height | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/8 |
| Material Size | 3/8-3/4 Inch |
| Flutes | 2 |
Description
The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.
Maximum RPM 18,000.
Specifications
| Angle (a°) | 45° |
| Diameter (D) | 1-3/4 |
| D1 | 6.4mm |
| Cutting Height (B) | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/8 |
| Material size | 3/8-3/4 Inch |
| Flutes | 2 |
