55439 Carbide Tipped Adjustable Mission Style Straight Instile and Rail System 1-7/8 Dia x 5/8 to 1-1/8 x 1/2 Inch Shank Set

$231.32

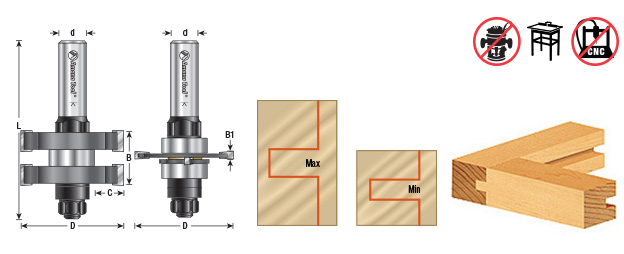

Diameter (D) 1-7/8
(B) Cutting Height 5/8 to 1-1/8
Shank (d) 1/2
Overall Length (L) 3-11/32
Type Mission (Straight)
Flutes 2
C 1/2
B1-for-1-4-plywood 3/16 to 9/32
B1-for-1-2-plywood 7/16 to 17/32

Description

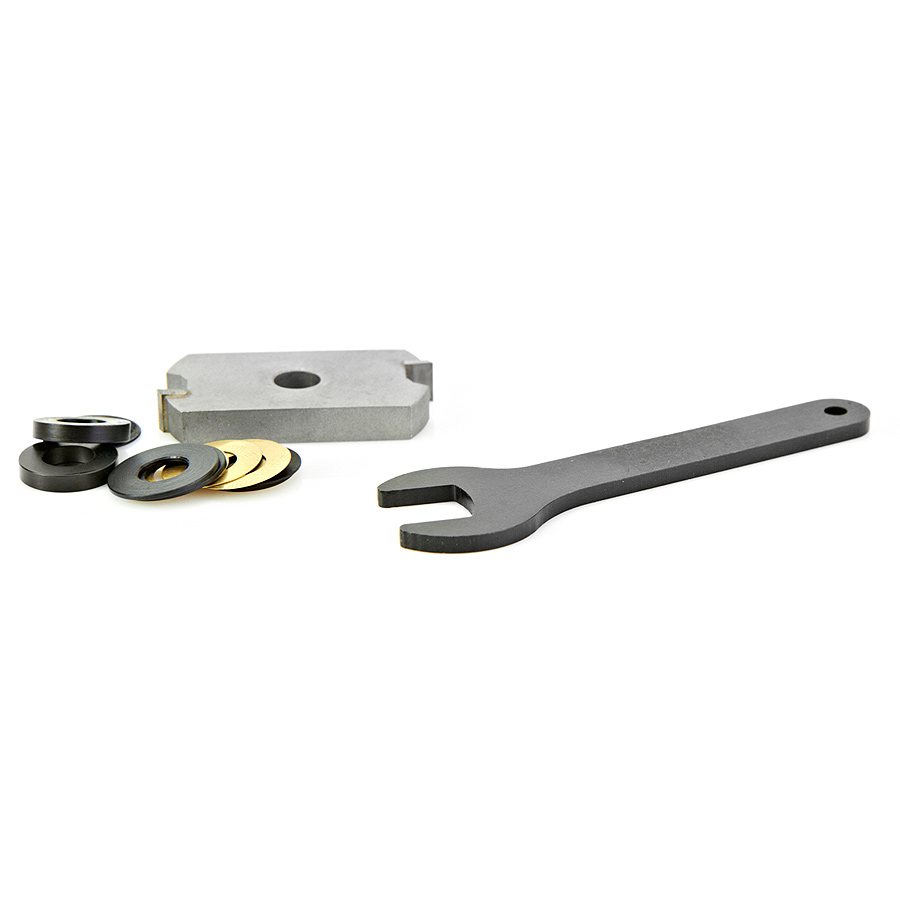

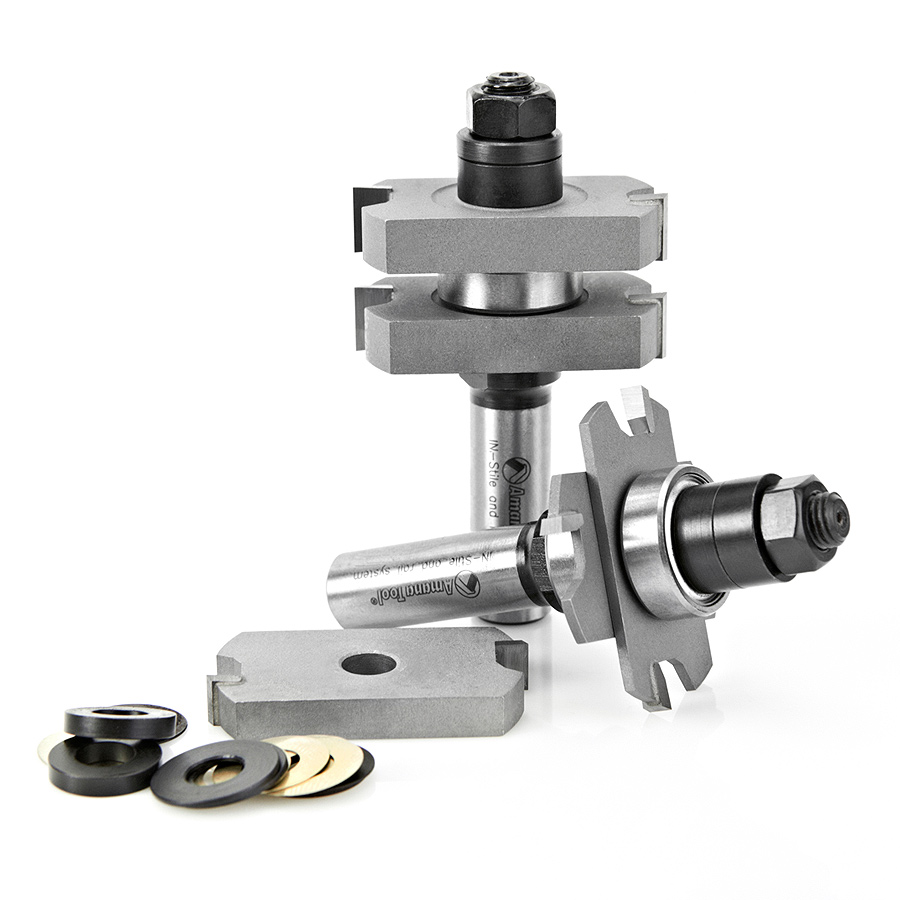

Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2″ shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Specifications

Diameter (D) 1-7/8
Cutting Height (B) 5/8 to 1-1/8
Shank (d) 1/2
Overall Length (L) 3-11/32
Type Mission (Straight)
Flutes 2
C 1/2
B1 for 1/4" Plywood 3/16 to 9/32
B1 for 1/2" Plywood 7/16 to 17/32
