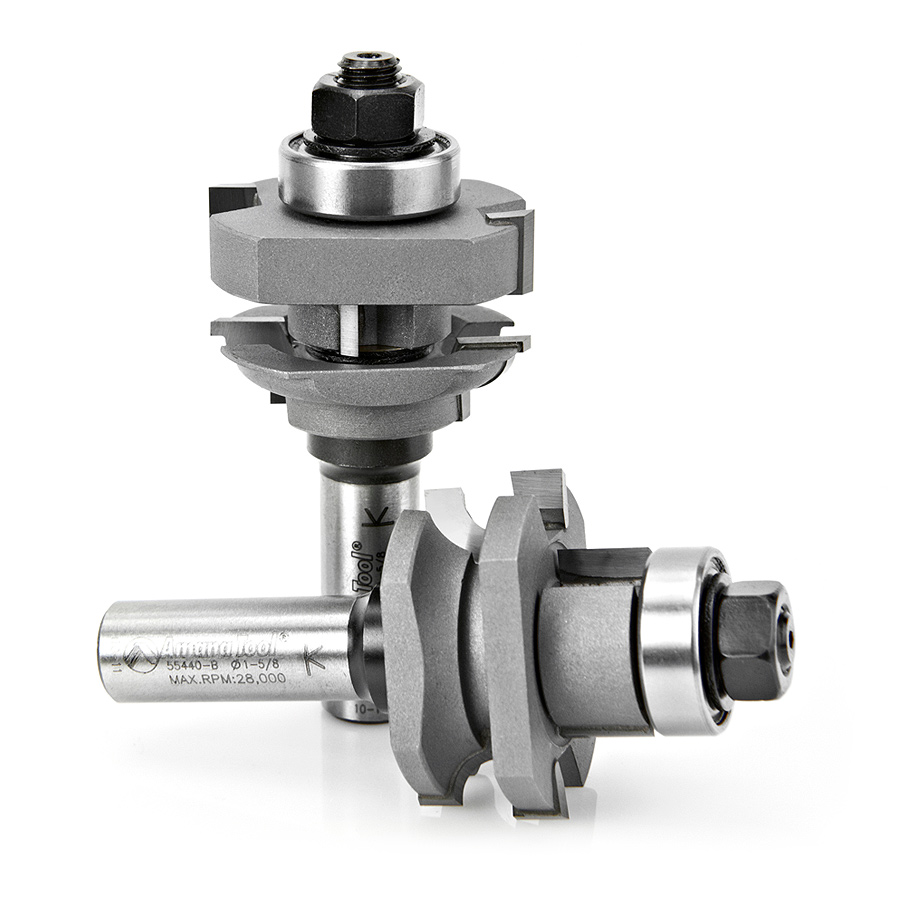

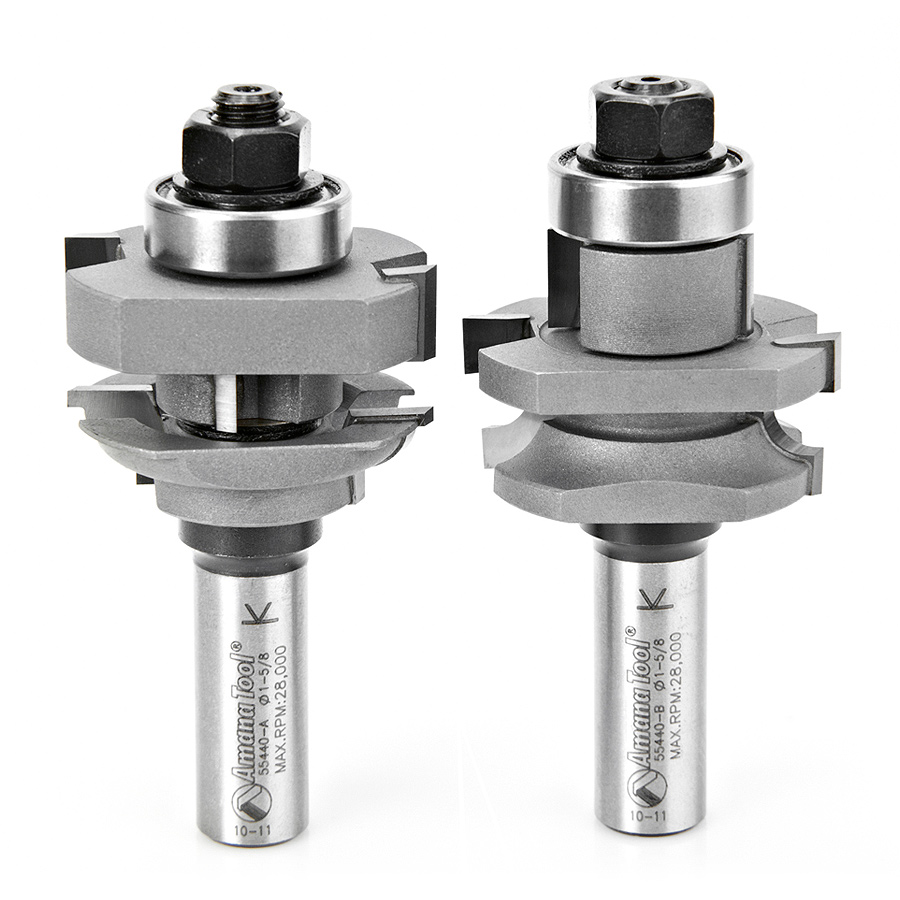

55440 Carbide Tipped 2-Piece Stile and Rail 1-5/8 Dia x 1-1/16 x 3/16 Radius x 1/2 Inch Shank Set

$260.67

Diameter (D) 1-5/8
Radius (R) 3/16
(B) Cutting Height 1-1/16
B1 1/4
Shank (d) 1/2
Overall Length (L) 3-5/16
Type Bead
Flutes 2
C 3/8
# Wings 2

Description

These sets include two trim cutters for stock 7/8″ through 1″ in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8″ thick.)

Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8″ to 1″ thick, a template must to used.

Specifications

Diameter (D) 1-5/8
Radius (R) 3/16
Cutting Height (B) 1-1/16
B1 1/4
Shank (d) 1/2
Overall Length (L) 3-5/16
Type Bead
Flutes 2
C 3/8
# Wings 2
