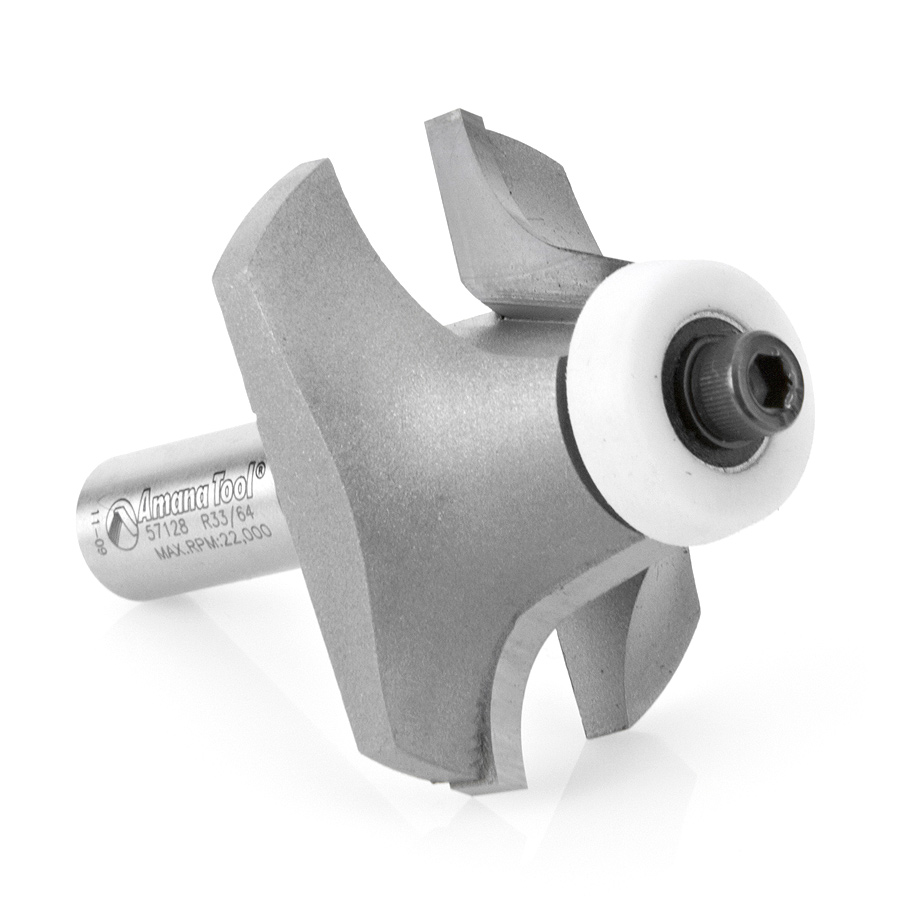

57128 Carbide Tipped Undermount Bowl Solid Surface 2-1/8 Dia x 1 Inch x 18 Deg x 1/2 Shank
$150.68
Usually ships on the 2nd business day from order date.
| (a°) Angle | 18° |
|---|---|
| Diameter (D) | 2-1/8 |
| Radius (R) | 1/2 |
| (B) Cutting Height | 1 |
| B1 | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Type | Roundover |
| Replacement Bearing | 47726 |
| Flutes | 2 |
| A | 1/2 |
Description
These bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian® sink and bowl #’s 802S, 804S, 805S, 809S, and 871S.
Specifications
| Angle (a°) | 18° |
| Diameter (D) | 2-1/8 |
| Radius (R) | 1/2 |
| Cutting Height (B) | 1 |
| B1 | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Type | Round Over |
| Replacement Bearing | 47726 |
| Flutes | 2 |
| A | 1/2 |
