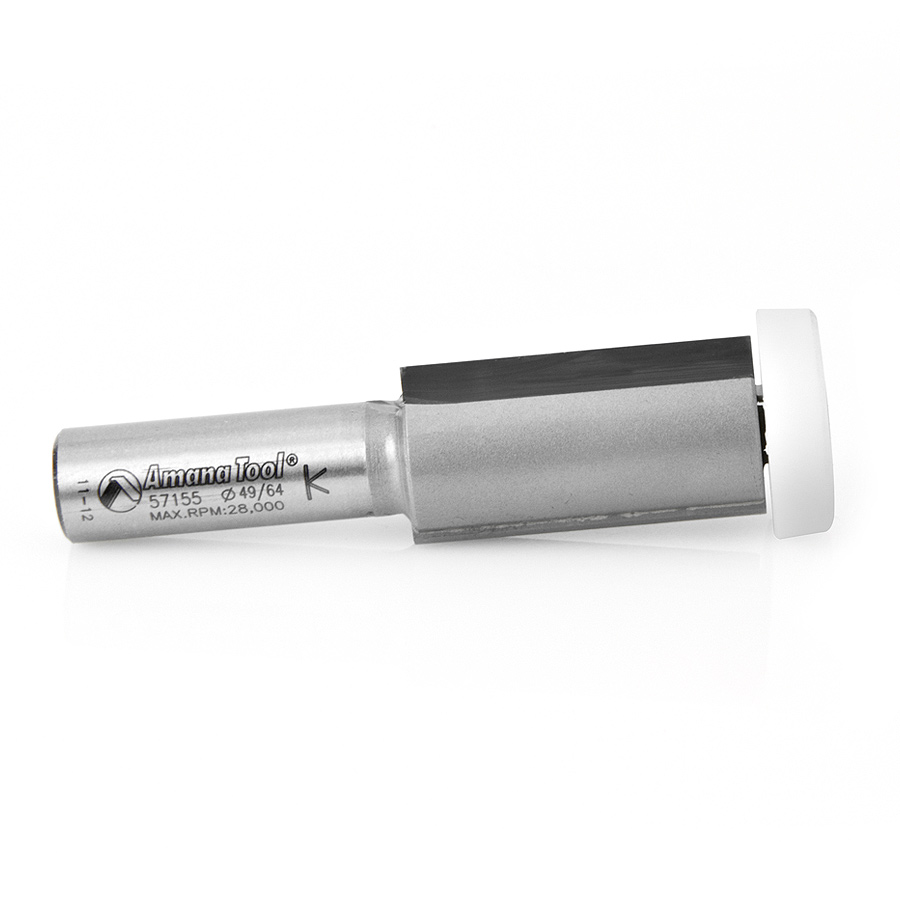

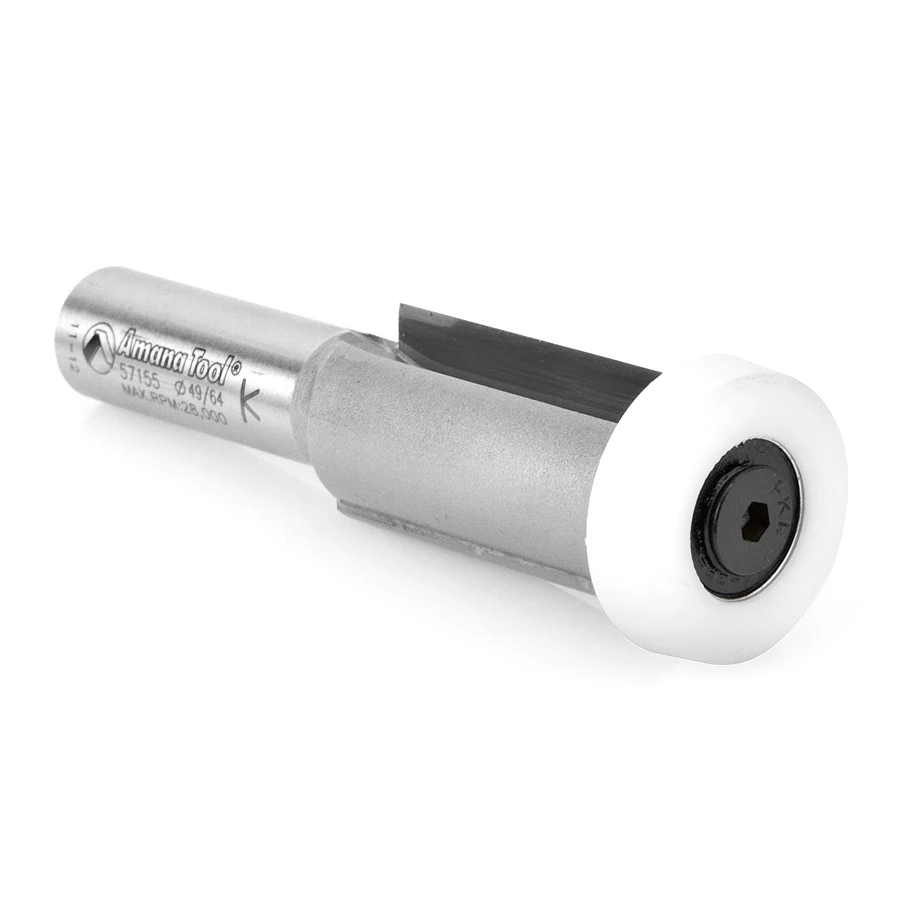

57155 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 49/64 Dia x 1-1/2 x 12 Deg x 1/2 Inch Shank
$90.09
Usually ships on the 2nd business day from order date.

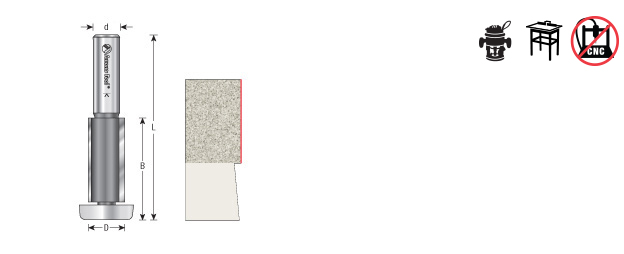

(a°) Angle | 5° |
---|---|
Diameter (D) | 49/64 |
(B) Cutting Height | 1-1/2 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/2 |
Type | 1/8 Over Hang |
Replacement Bearing | 47733 |
Flutes | 2 |
A | 1/2 or 3/4 |
Description
This bit is designed specifically for use for the Karran stainless steel edgesinks for laminate and 1/2″ solid surface materials. They trim the counter-top edge after the bowl is mounted.
Trim a sink cutout flush with the bowl in stages using these “over-hang” and flush trim bits in tandem. The overhang bits are equipped with non-marring Ultra-Glide™ bearings that are tapered to match the slope of the bowl’s side. A first pass with the appropriate overhang bit cleans the cutout edge, leaving a very slight overhang at the underside of the counter. A pass with the flush-trim bit completes the operation.
Specifications
Angle (a°) | 5° |
Diameter (D) | 49/64 |
Cutting Height (B) | 1-1/2 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/2 |
Type | 1/8 Over Hang |
Replacement Bearing | 47733 |
Flutes | 2 |
A | 1/2 or 3/4 |
