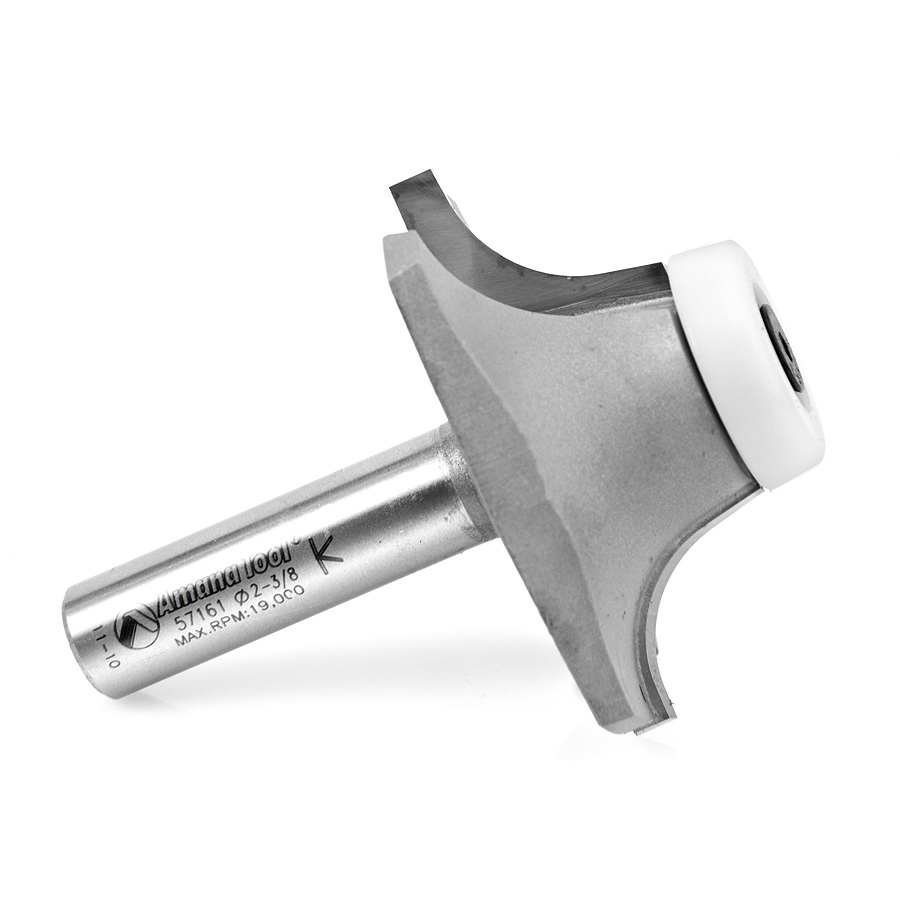

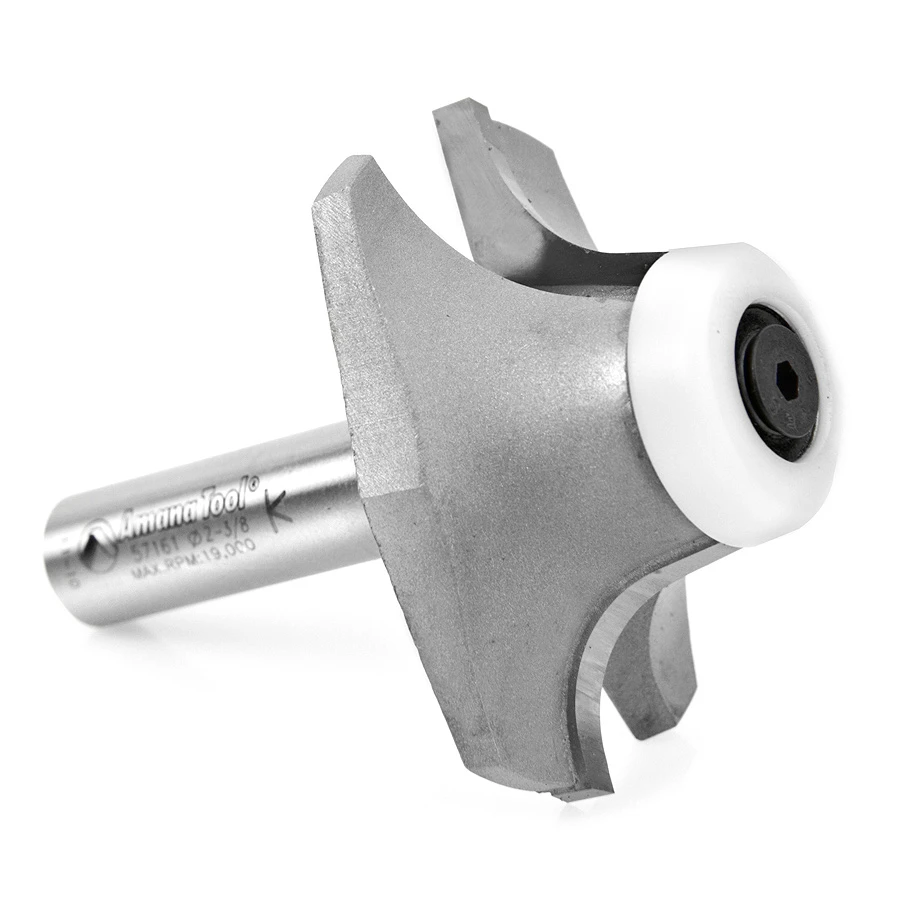

57161 Carbide Tipped Wilsonart® SSV Bowl Solid Surface 2-3/8 Dia x 7/8 x 12 Deg x 1/2 Inch Shank
$231.02
Usually ships on the 2nd business day from order date.
| (a°) Angle | 12° |
|---|---|
| Diameter (D) | 2-3/8 |
| Radius (R) | 9/16 |
| (B) Cutting Height | 7/8 |
| B1 | 11/16 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-11/16 |
| Type | Roundover |
| Replacement-bearing | 47733 |
| R1 | 9/16 |
| Flutes | 2 |
| Countertop-thickness | 1/2 - 3/4 |
Description
This bit is designed specifically for use with the Wilsonart® bowl. Use with any handheld router; the Ultra-Glide™ bearing guides the cut.
Specifications
| Angle (a°) | 12° |
| Diameter (D) | 2-3/8 |
| Radius (R) | 9/16 |
| Cutting Height (B) | 7/8 |
| B1 | 11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-11/16 |
| Type | Roundover |
| Replacement Bearing | 47733 |
| R1 | 9/16 |
| Flutes | 2 |
| Countertop Thickness | 1/2 - 3/4 |
