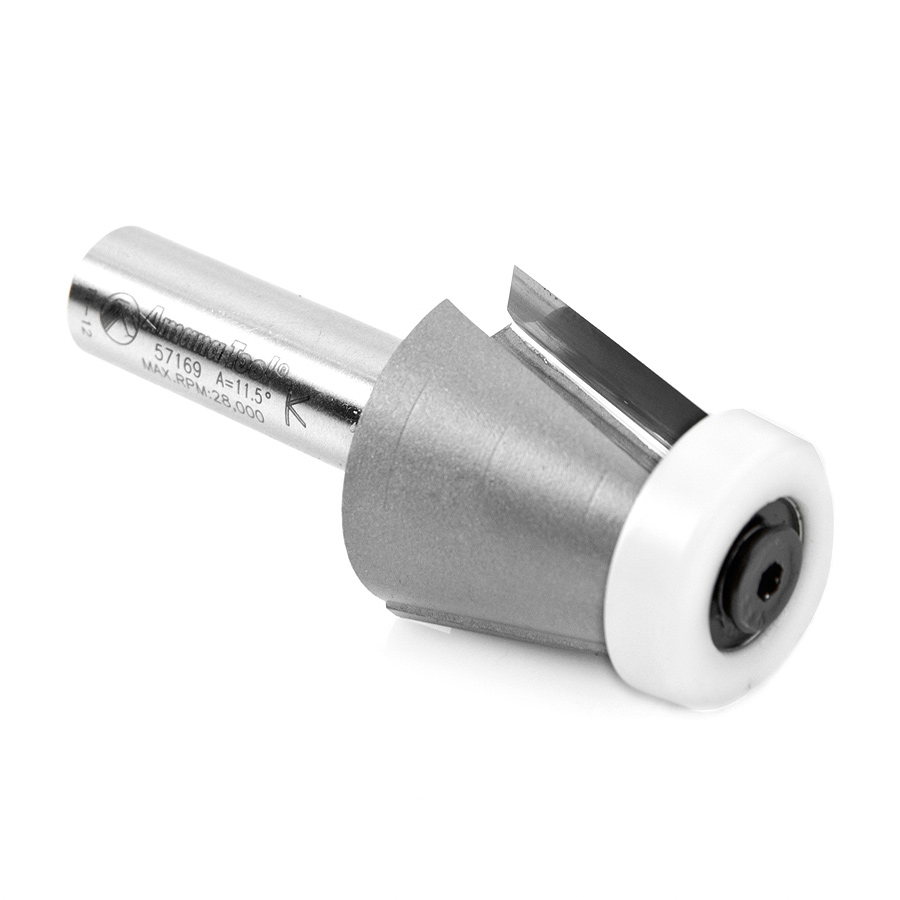

57169 Carbide Tipped Bevel Lansen Edge Sink Solid Surface 1-3/16 Dia x 1 x 1/2 Inch Shank
$217.43
Usually ships on the 2nd business day from order date.
| (a°) Angle | 11.5° |
|---|---|
| Diameter (D) | 1-3/16 |
| (B) Cutting Height | 1 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/8 |
| Replacement Bearing | 47733 |
| Screw # | 67146 |
| Flutes | 2 |
| A | 1/2 or 3/4 |
Description

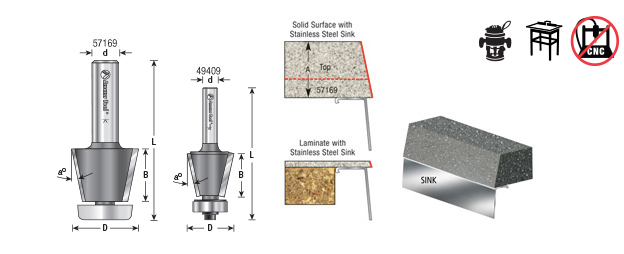

This bit is designed specifically for use for the Karran stainless steel edgesinks for 1/2″ solid surface materials. They trim the counter-top edge after the bowl is mounted.
Specifications
| Angle (a°) | 11.5° |
| Diameter (D) | 1-3/16 |
| Cutting Height (B) | 1 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/8 |
| Replacement Bearing | 47733 |
| Screw # | 67146 |
| Flutes | 2 |
| A | 1/2 or 3/4 |
