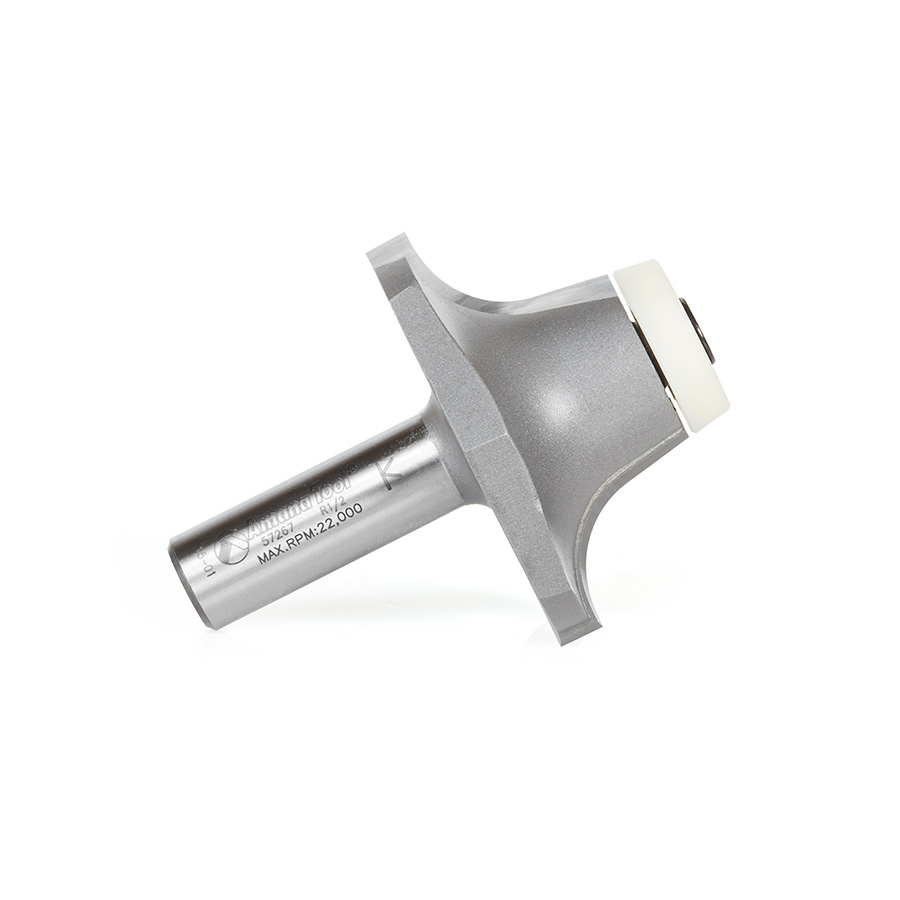

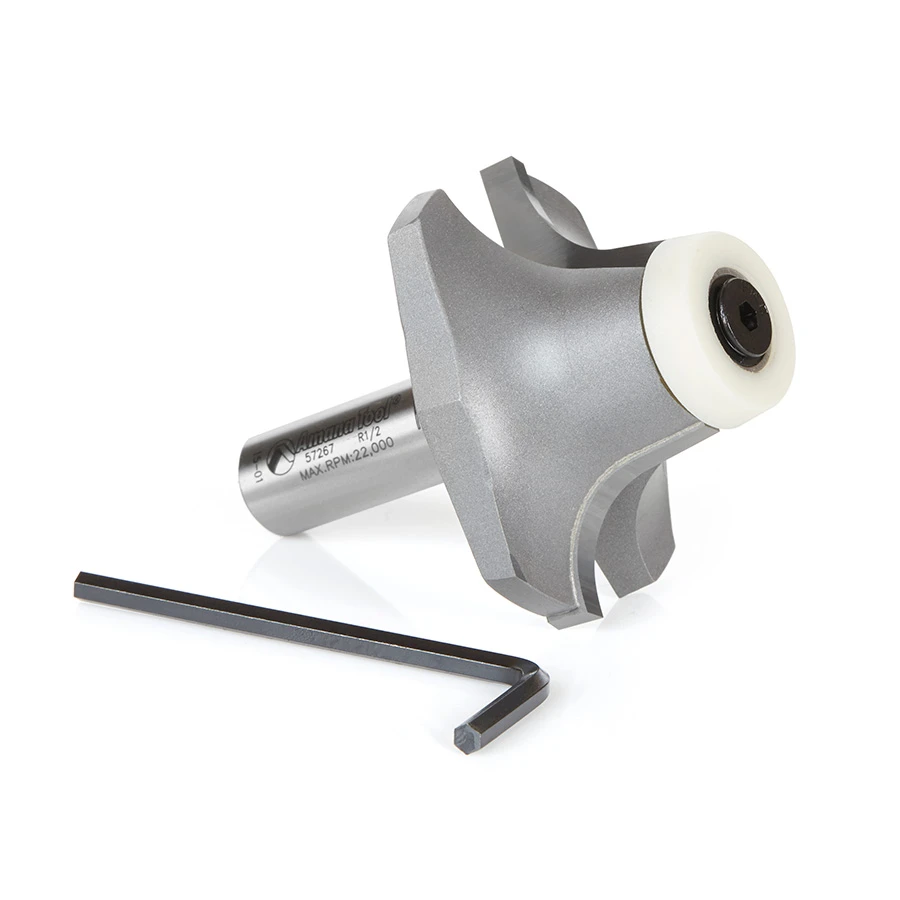

57267 Carbide Tipped Undermount Bowl Solid Surface 2-9/64 Dia x 63/64 x 10 Deg x 1/2 Inch Shank
$199.35
Usually ships on the 2nd business day from order date.
(a°) Angle | 10° |
---|---|
Diameter (D) | 2-9/64 |
D1 | 13/64 |
Radius (R) | 33/64 |
(B) Cutting Height | 63/64 |
B1 | 25/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-25/32 |
Replacement Bearing | 47787. |
Flutes | 2 |
Description
This bit has a 18 degree cutting draft with a bearing that matches, enabling the cutter to do more work so you have to do less and is designed specifically for use in undermount installations of:
Gemstone Vanity #’s 1512-VO, 1610-VO, 1612-VO, 1713-V, 1319-VFO, 1321-VO, 2213-VO (Baby Bath), 1311-S
Wilsonart® Vanity #’s BV1612, BV1512, BV2213
Formica Vanity # L065
They trim and profile the counter-top edges after the bowl is mounted.
Specifications
Angle (a°) | 10° |
Diameter (D) | 2-9/64 |
D1 | 13/64 |
Radius (R) | 33/64 |
Cutting Height (B) | 63/64 |
B1 | 25/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-25/32 |
Replacement Bearing | 47787 |
Flutes | 2 |
