61262 Insert Carbide Aluminum Raised Panel 180mm (7-1/16) Dia x 25mm (1) x 1-1/4 Bore
$337.62
Usually ships on the 2nd business day from order date.

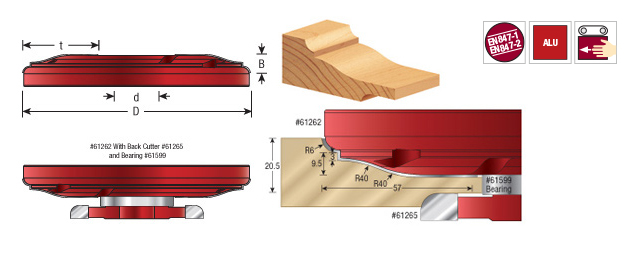

| Diameter (D) | 180mm (7-1/16) |
|---|---|
| (d) Bore | 1-1/4 |
| (B) Cutting Height | 25mm (1) |
| Max T | 57mm (2-1/4) |
| Optional Rub Collar | 61599 |
| RPM | 4,500-7,500 |
| Replacement Knives | RCK-78 |
| Type | Raised Panel |
Description

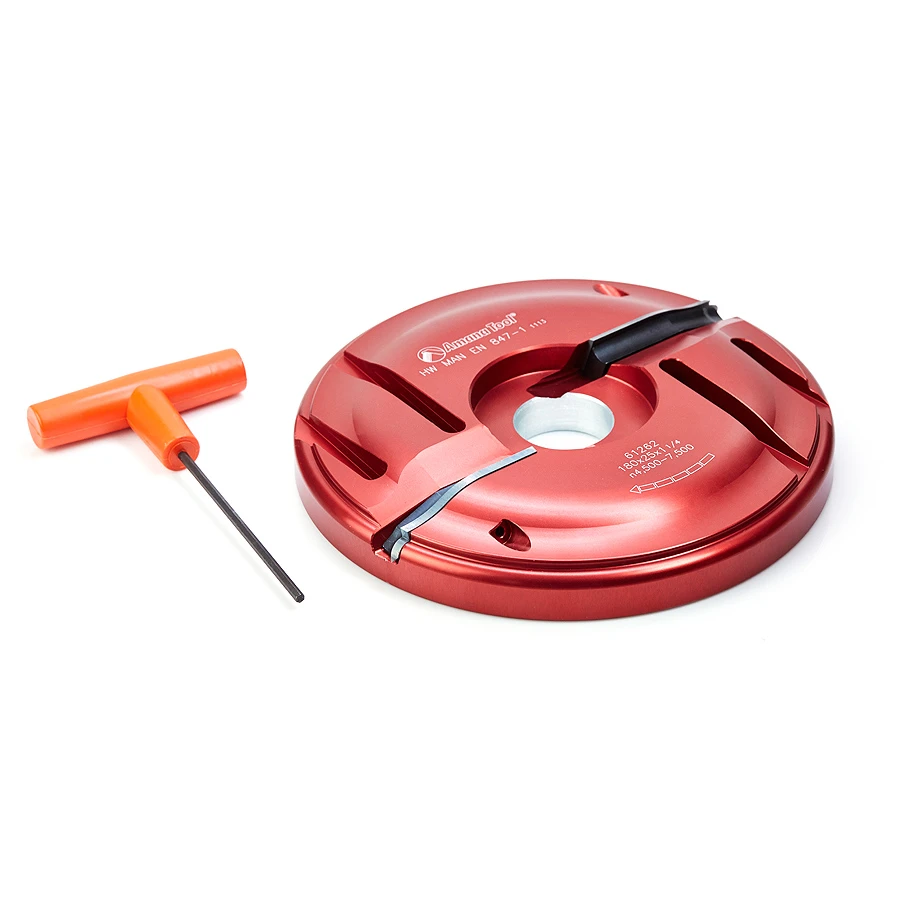

Cutterhead in hard wearing aluminum, complete with tungsten carbide knives. Suitable for producing raised panel profiles in softwood, hardwood and man-made boards on a spindle molder.
Specifications
| (D) Diameter | 180mm (7-1/16) |
| (d) Bore | 1-1/4 |
| (B) Cutting Height | 25mm (1) |
| Max T | 57mm (2-1/4) |
| Optional Rub Collar | 61599 |
| RPM | 4,500-7,500 |
| Replacement Knives | RCK-78 |
| Type | Raised Panel |
