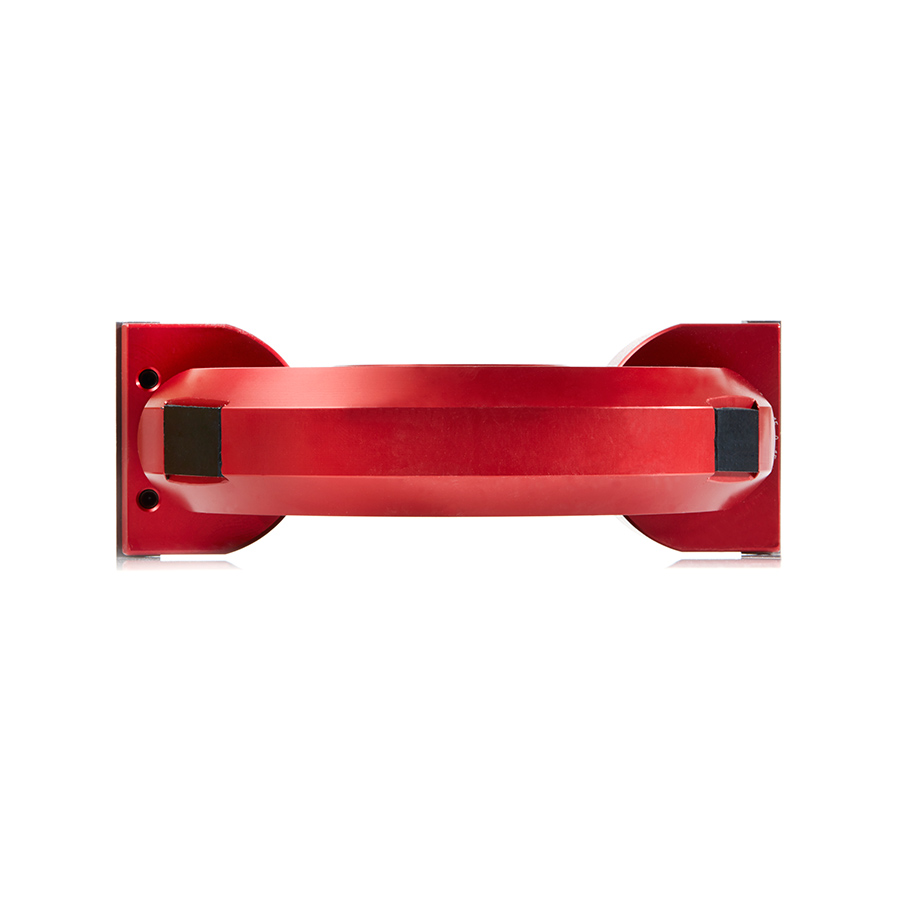

61311 Insert Carbide Aluminum Adjustable Chamfer -90.0 to +90.0 x 170mm (6-11/16) Dia x 60mm (2) x 1-1/4 Bore

$658.35

Usually ships on the 2nd business day from order date.

Diameter (D)	170mm (6-11/16)
(d) Bore	1-1/4
(a°) Angle	-/+90°
(B) Cutting Height	60mm (2-3/8)
RPM	4,500-6,000
Cutter Body	Aluminum
Replacement Knives	ICK-60

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

61311 Insert Carbide Aluminum Adjustable Chamfer -90.0 to +90.0 x 170mm (6-11/16) Dia x 60mm (2) x 1-1/4 Bore quantity

+ Add to cart

UPC: 738685613115 SKU: 61311 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Shaper Cutters, Insert Adjustable Chamfer Shaper Cutters, Profiling Insert Shaper Cutters

Share:

Description

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Aluminum.
