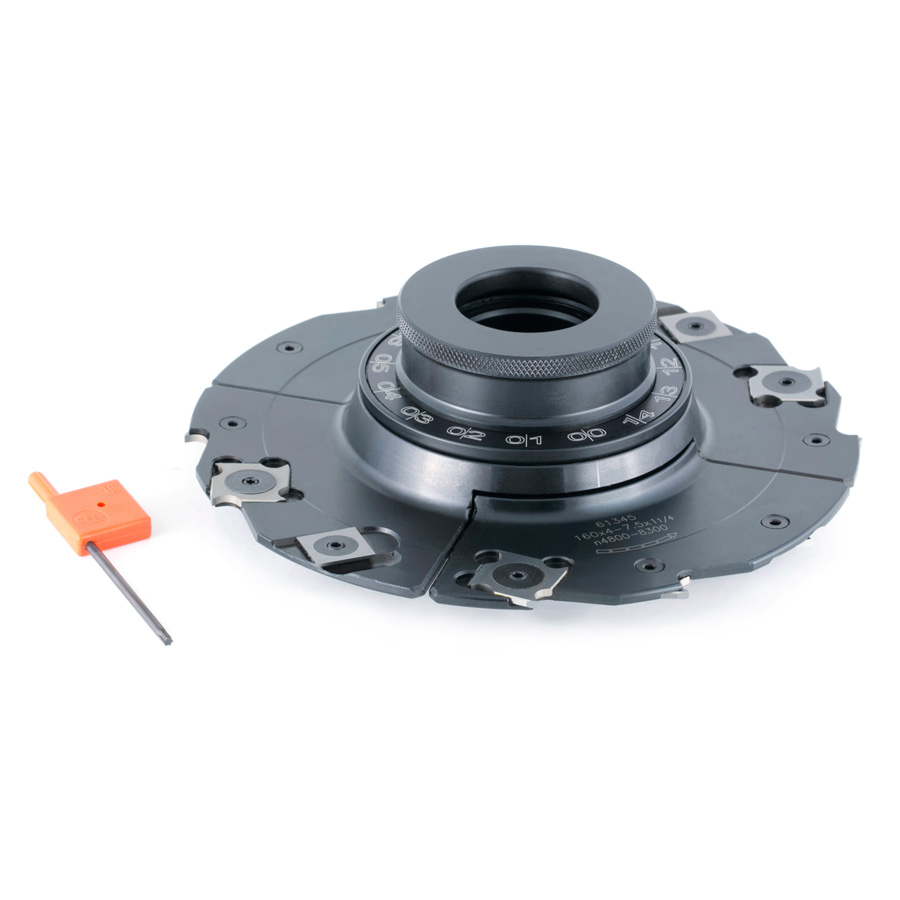

61345 Insert Carbide Adjustable Groove with Scorer & Ring Nut 160mm (6-5/16) Dia x 4.0 to 7.5mm (5/32 to 19/64) x 1-1/4 Bore

$623.39

Usually ships on the 2nd business day from order date.

Diameter (D)	160mm (6-5/16)
(d) Bore	1-1/4
(B) Cutting Height	4 to 7.5mm (5/32 to 19/64)
Max T	30mm (1-3/16)
RPM	4,800-8,300
Teeth	8+4
Replacement Knives	RCK-18, RCK-71

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

61345 Insert Carbide Adjustable Groove with Scorer & Ring Nut 160mm (6-5/16) Dia x 4.0 to 7.5mm (5/32 to 19/64) x 1-1/4 Bore quantity

+ Add to cart

UPC: 738685613450 SKU: 61345 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Insert Adjustable Grooving Cutter with Scorer, Grooving Insert Shaper Cutters, Shaper Cutters

Share:

Description

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle.
