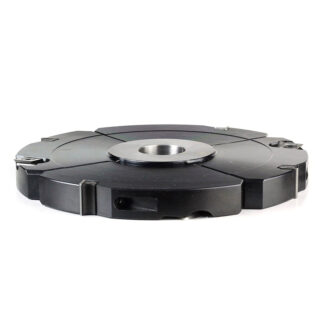

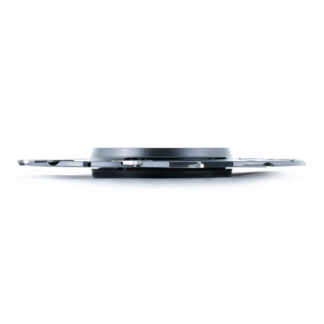

61355 Insert Carbide Adjustable Groove & Rabbet with Scorer 160mm (6-5/16) Dia x 20.6 to 40mm (13/16 to 19/16) x 1-1/4 Bore

$486.86

Diameter (D) 160mm (6-5/16)
(d) Bore 1-1/4
(B) Cutting Height 20.6 to 40mm (13/16 to 19/16)
Max T 40mm (1-1/2)
RPM 4,800-8,000
Teeth 4+4
Replacement Knives ICK-20, RCK-70

Description

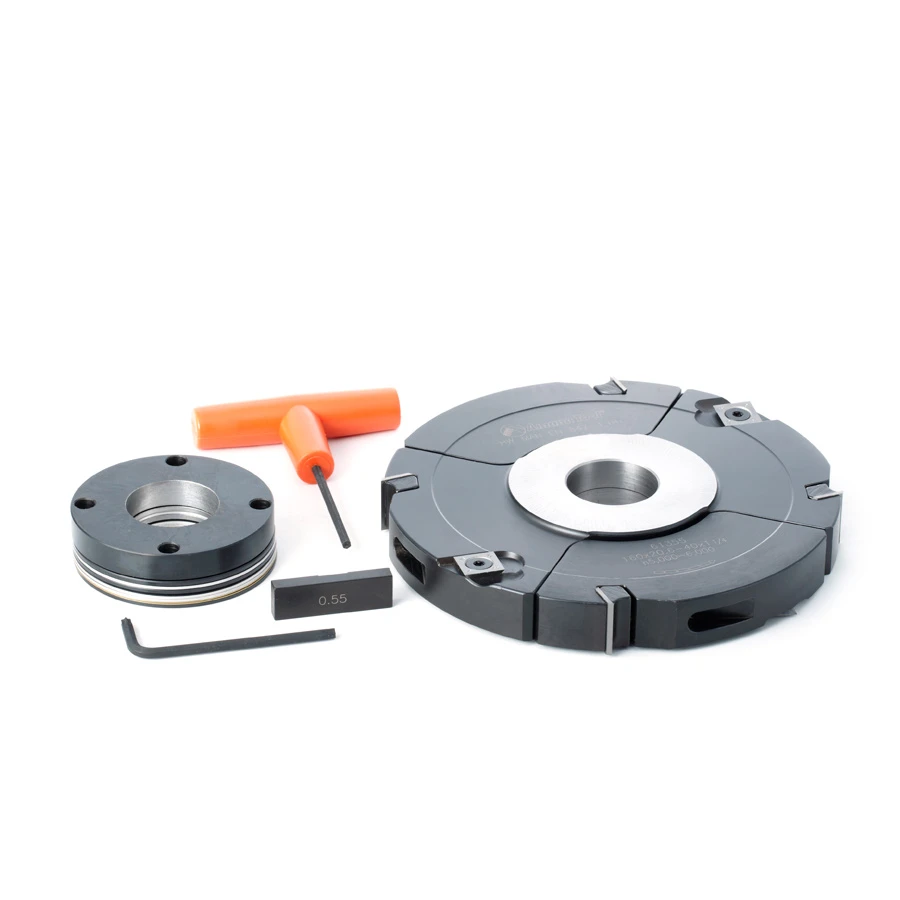

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle.

Specifications

(D) Diameter 160mm (6-5/16)
(d) Bore 1-1/4
(B) Cutting Height 20.6 to 40mm (13/16 to 19/16)
Max T 40mm (1-1/2)
RPM 4,800-8,000
Teeth 4+4
Replacement Knives ICK-20, RCK-70
