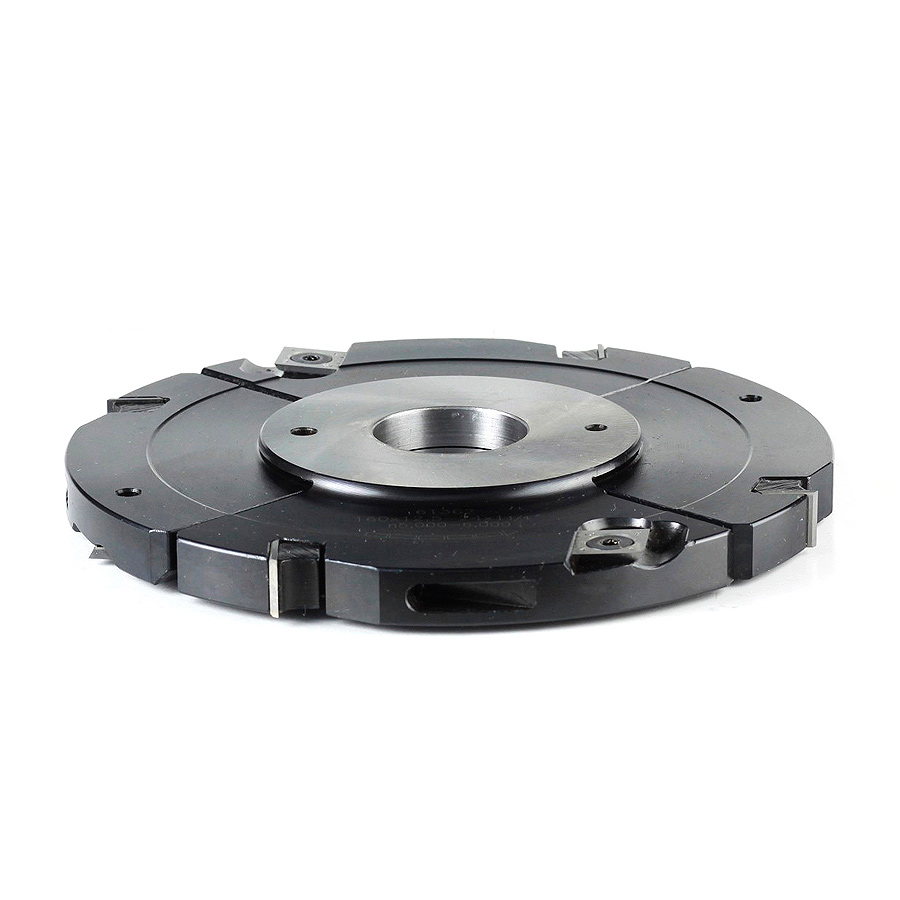

61362 Insert Carbide Adjustable Groove with Scorer 160mm (6-5/16) Dia x 12.5 to 24mm (1/2 to 15/16) x 1-1/4 Bore

$462.92

Usually ships on the 2nd business day from order date.
Diameter (D) 160mm (6-5/16)
(d) Bore 1-1/4
(B) Cutting Height 12.5 to 24mm (1/2 to 15/16)
Max T 30mm (1-3/16)
RPM 4,800-8,300
Teeth 4+4
Replacement Knives AMA-19(4), RCK-70(4)
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle.

Specifications

(D) Diameter 160mm (6-5/16)
(d) Bore 1-1/4
(B) Cutting Height 12.5 to 24mm (1/2 to 15/16)
Max T 30mm (1-3/16)
RPM 4,800-8,300
Teeth 4+4
Replacement Knives AMA-19(4), RCK-70(4)
