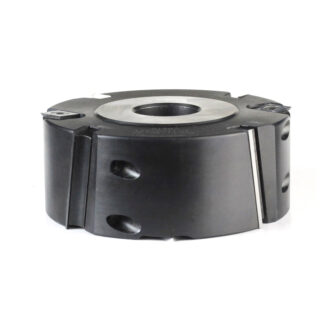

61470 Insert Carbide Steel Rabbet 125mm (5) Dia x 30mm (1-3/16) x 1-1/4 Bore

Name: 61470 Insert Carbide Steel Rabbet 125mm (5) Dia x 30mm (1-3/16) x 1-1/4 Bore
SKU: 61470
Availability: InStock

$260.93

Usually ships on the 2nd business day from order date.

Diameter (D)	125mm (5)
(d) Bore	1-1/4
(B) Cutting Height	30mm (1-3/16)
Max T	30mm (1-3/16)
RPM	6,100-10,000
Teeth	2+4
Cutter Body	Steel
Replacement Knives	ICK-30, HCK-70

UPC: 738685416709.0 SKU: 61470 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Insert Rabbeting Shaper Cutters, Rabbeting Insert Shaper Cutters, Shaper Cutters

You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness rabbets in softwood, hardwood and man-made boards (with or without coating) on a spindle molder.

Specifications

(D) Diameter	125mm (5)
(d) Bore	1-1/4
(B) Cutting Height	30mm (1-3/16)
Max. t	30mm (1-3/16)
RPM	6,100-10,000
Teeth	2+4
Cutter Body	Steel
Replacement Knives	ICK-30, HCK-70
