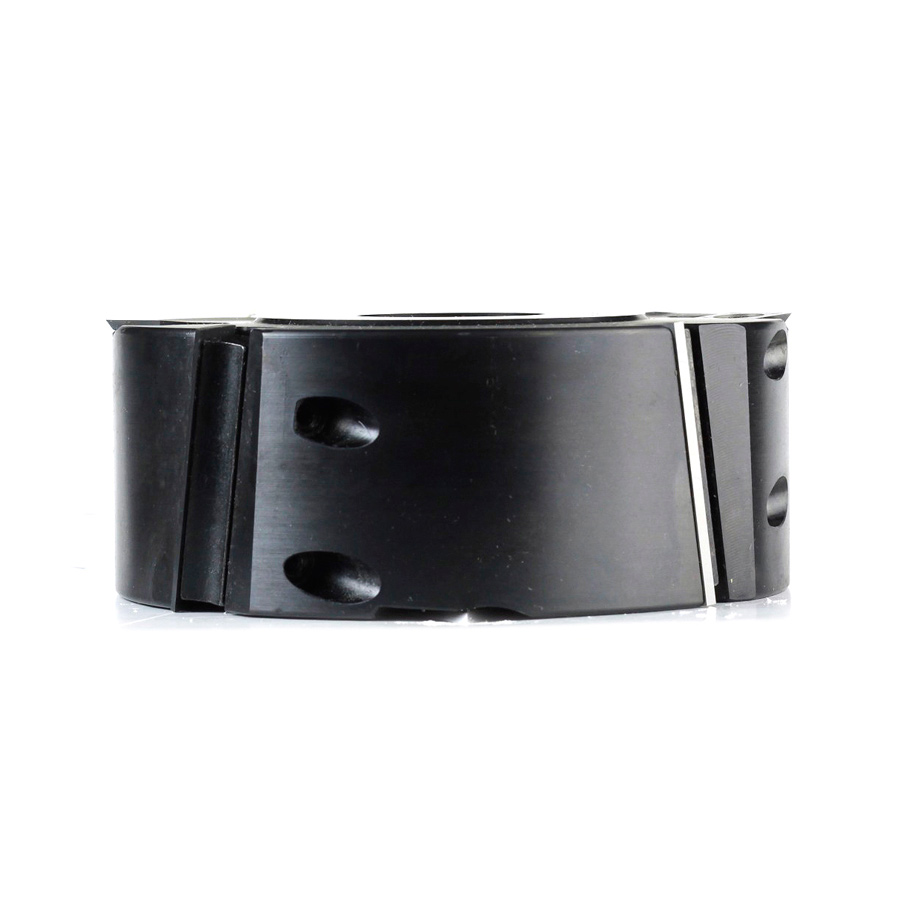

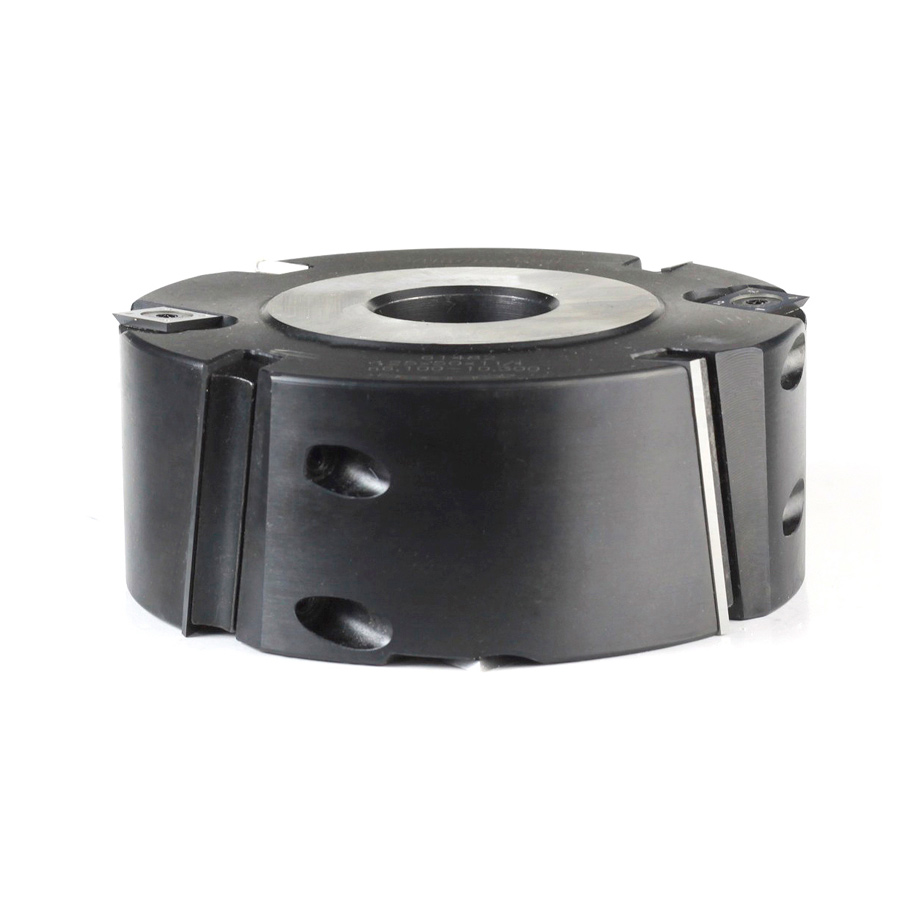

61482 Insert Carbide Shear Rabbeting 125mm (5) Dia x 50mm (2) x 1-1/4 Bore Steel

Name: 61482 Insert Carbide Shear Rabbeting 125mm (5) Dia x 50mm (2) x 1-1/4 Bore Steel
SKU: 61482
Price: 407.74 CAD
Availability: InStock

$407.74

Usually ships on the 2nd business day from order date.

Diameter (D)	125mm (5)
(d) Bore	1-1/4
(B) Cutting Height	50mm (2)
Max T	27mm (1-1/16)
RPM	6,100-10,300
Teeth	4+4
Cutter Body	Steel
Replacement Knives	ICK-50 (4) & HCK-70 (4)

UPC: 738685641828.0 SKU: 61482 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Insert Shear Rabbeting Shaper Cutters, Rabbeting Insert Shaper Cutters, Shaper Cutters

You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Cutterhead bodies available in hard wearing aluminum or steel, complete with shear angle tungsten carbide knives and scorer. Suitable for producing various thickness rabbets in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Shear angle reduces tear out and improves quality of cut.

Specifications

(D) Diameter	125mm (5)
(d) Bore	1-1/4
(B) Cutting Height	50mm (2)
Max. t	27mm (1-1/16)
RPM	6,100-10,300
Teeth	4+4
Cutter Body	Steel
Replacement Knives	ICK-50 (4) & HCK-70 (4)
