Carbide Tipped Box Joint 1-7/8 Dia x 1-3/8 x 1/2 Inch Shank with Upper BB 3-Flute Set

$191.58

Diameter D 1-7/8
Cutting Height B 1-3/8
B1 5/32
Shank D 1/2
Overall Length L 3-3/4
Wings 3

Description

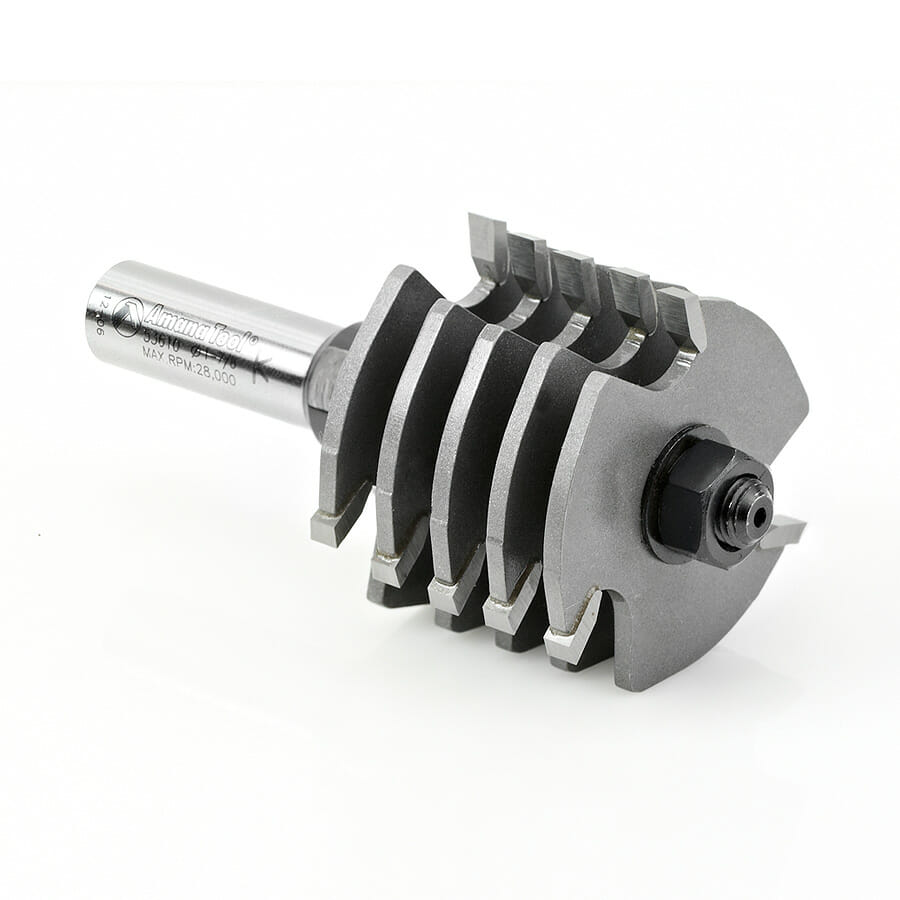

Cut strong, attractive box joints for small boxes, shallow drawers and trays with this bit. By taking three passes it can be used with stock up to 1/2″ thick and 4″ wide. The most accurate way to adjust the height of the bit while ensuring a good fit when taking multiple passes is to align a cutter on the bit with one of the previous cuts. The bit has five uniformly spaced 3-wing slotting cutters and a ball-bearing guide on a 1/2″ shank arbor. Use in a table-mounted router for best results. Maximum RPM 13,000.
