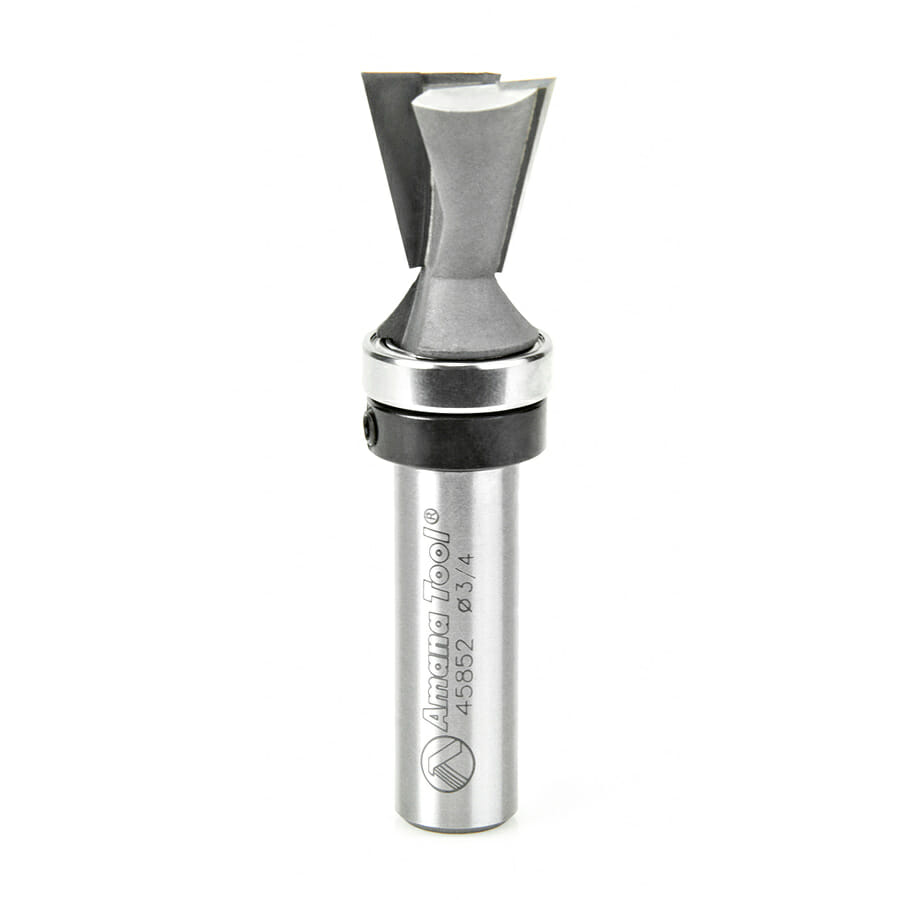

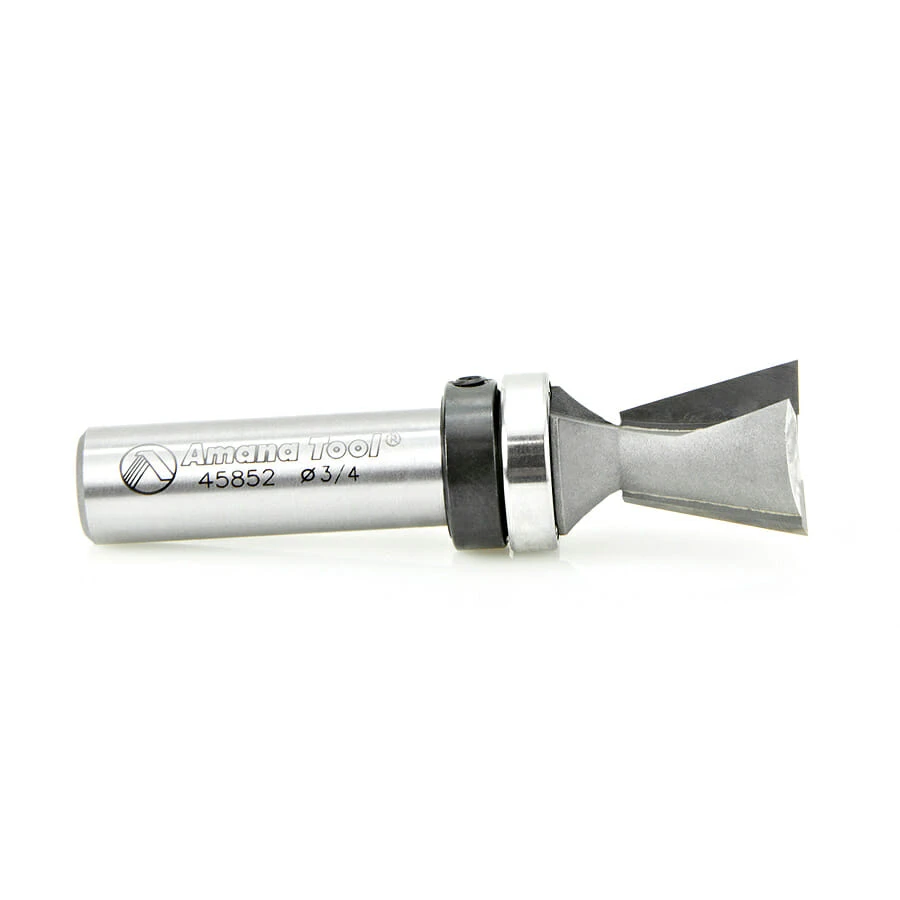

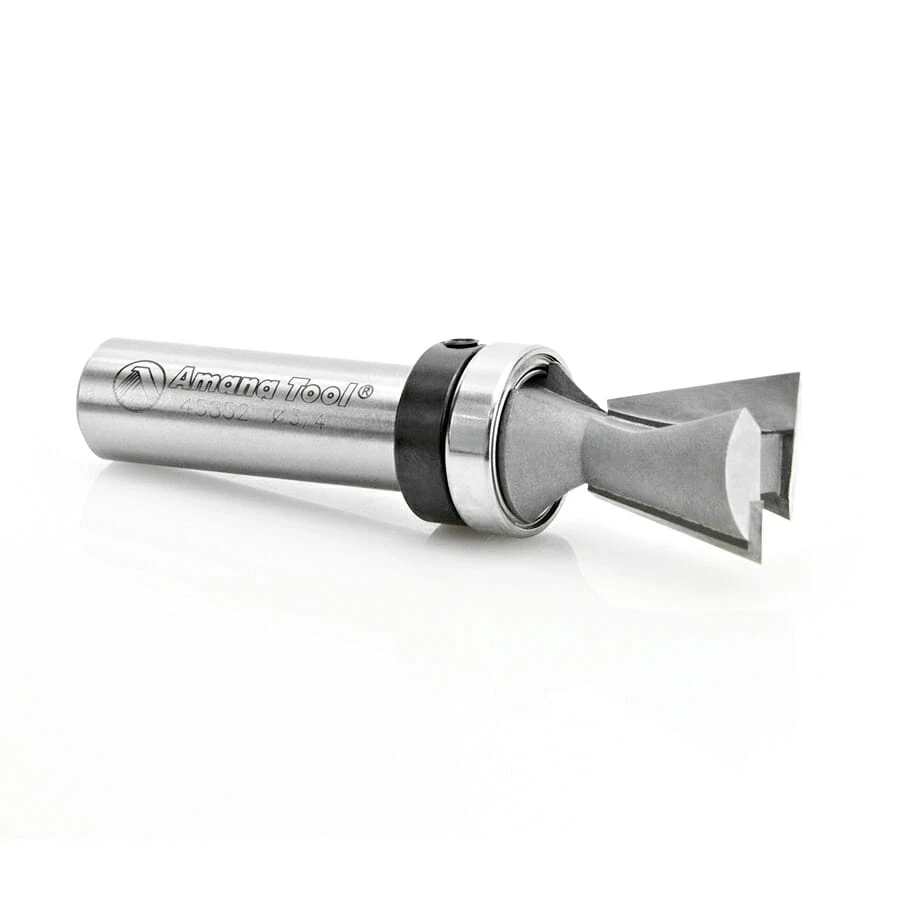

Carbide Tipped Dovetail 14 Deg x 3/4 Dia x 3/4 x 1/2 Inch Shank with Upper BB


Angle A 14°
Diameter D 3/4
Cutting Height B 3/4
Overall Length L 3
Flutes 2
UPC: 738685458525 SKU: 45852 Categories: , ,


This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece. For pattern cutting or jigs.
