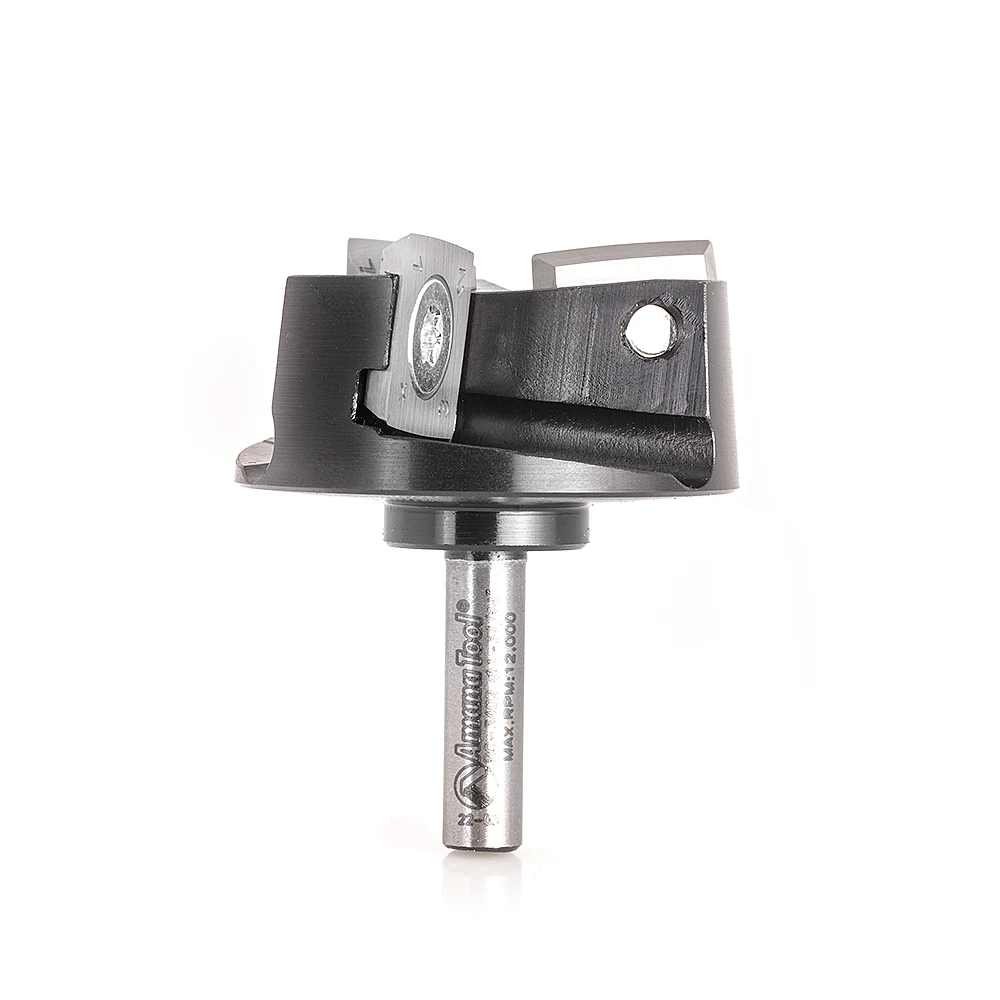

RC-3402 CNC Solid Carbide 3-Flute Insert Face Milling for Non-Ferrous Metals 1-5/8 Dia x 15mm x 1/4 Inch Shank End Mill / Router Bit


The replaceable tips end mill/router bit tool body made from alloy steel with 4 solid carbide cutting inserts for maximum feed and stability specially made for CNC and milling machines.
Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated.
Excellent for cutting:

Aluminum 5052
Fomex® with Aluminum Face


Milling / Surfacing / Facing
Shouldering / Rabbeting
Slotting / Grooving

Use “Ramp Down” technique.
Feed Rate: 25″/min – 63″/minChip load per tooth: 0.0008″ – 0.002″

Maximum RPM: 12 000 RPM
Warning: Maximum recommended material depth in one pass 1/32″ (1.0mm).

Fusion 360 compatible tool file for RC-3400 available for download, click here.

Usually ships on the 2nd business day from order date.
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
SKU: RC-3402 Category:


Maximum RPM: 12 000 RPM
