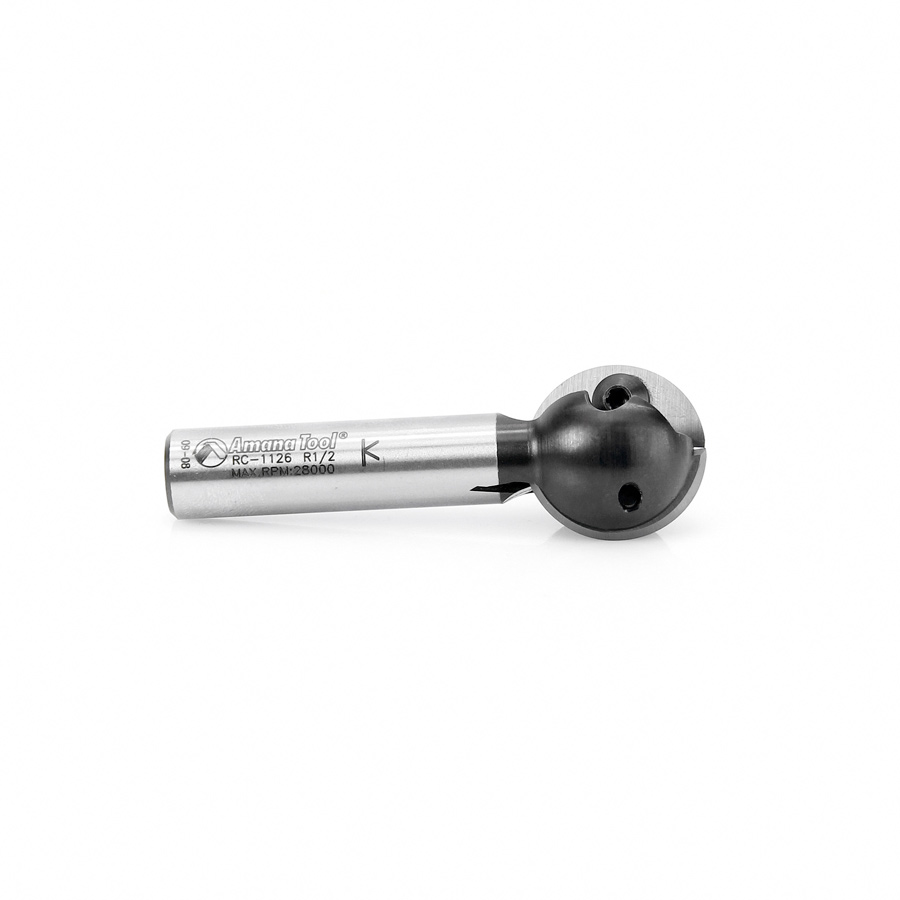

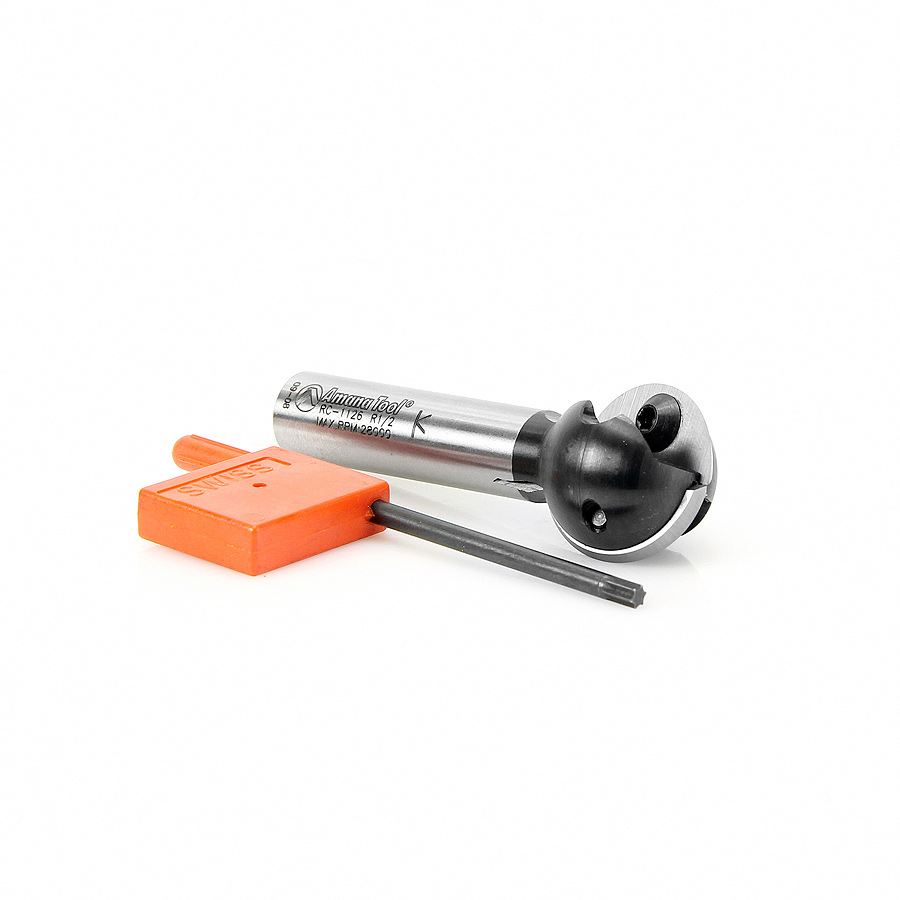

RC-1126 Carbide Tipped CNC Ball End Insert 1/2 Radius x 1 Inch Dia x 1/2 x 1/2 Shank

$141.10Flag Image
Usually ships on the 2nd business day from order date.
Diameter-d 1
Radius-r 1/2
B-cutting-height 15/16
Shank-d 1/2
Overall-length-l 2-7/8
Max-rpm 18,000
Screw 67115
Repl-knives RCK-54
Flutes 2
D1 43/64
UPC: 738685091265.0 SKU: RC-1126 Categories: , ,
You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Note: Profile is useful as a ‘conduit’ for cables pipes etc.

Maximum RPM 18 000.

Warning: These tools have an open flute design (not anti-kickback) and are intended for high feed-rate CNC machine use only. Do not use in portable routers.

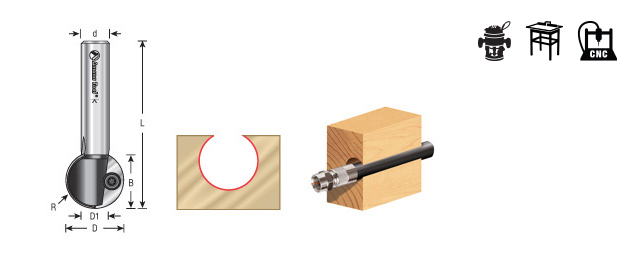

Specifications

(D) Diameter 1
(R) Radius 1/2
(B) Cutting Height 15/16
(d) Shank 1/2
Overall Length (L) 2-7/8
Max RPM 18,000
Screw # 67115
Replacement Knives RCK-54
Flutes 2
D1 43/64
